Product overview: KYOCERA AVX TWCB476K050CCYZ0000 TWC-Y Series
The KYOCERA AVX TWCB476K050CCYZ0000, part of the TWC-Y Series, exemplifies the latest advancements in wet tantalum capacitor engineering. Designed for environments where operational integrity cannot be compromised, this 47μF ±10% component operates at a rated 50VDC and leverages a hermetically sealed axial package. At the materials level, the wet tantalum electrolyte configuration ensures hallmark stability in capacitance and leakage current, even under temperature and voltage stress. The internal anode structure and precise electrolyte composition provide a stable electrochemical interface, minimizing parameter drift and extending expected lifetime significantly compared to conventional solid or dry tantalum devices.
Mechanical and environmental resilience stems from the hermetic glass-to-metal seal, which acts as a robust barrier against moisture ingress, corrosive agents, and outgassing—a crucial differentiator in aerospace, defense, and downhole energy recovery applications, where thermal cycling, vibration, and pressure differentials are routine challenges. The COTS-Plus platform subtly integrates enhanced screening and qualification processes, aligning product pedigree with mission-critical reliability standards without custom project lead times or cost penalties associated with full military specification parts.
Application-wise, the TWC-Y Series is particularly well-suited for power rail filtering, energy storage, or charge/discharge buffer roles in high-reliability embedded systems. Its low ESR and stable impedance profile support low-ripple voltage requirements in sensitive analog front-ends and digital processor nodes. Practical deployment often uncovers the advantage of extended temperature resilience: circuits exposed to sustained operation at +125°C maintain predictable performance, a frequent hurdle for standard wet tantalum or aluminum electrolytics. The form factor further enables dense packaging in modular avionics boxes and ruggedized power supplies, reducing the headaches associated with board real estate and mechanical mounting.
One nuanced benefit, often underappreciated in general-purpose designs, lies in the device’s consistent failure mode. Rather than open- or short-circuit unpredictably, the wet tantalum dielectric tends to exhibit gradual capacitor loss, easing maintenance strategies in inaccessible or non-serviceable platforms. This facet contributes substantively to system-level prognostics and reliability flow. For engineers weighing long-term supportability and risk mitigation, such deterministic aging is preferable and underpins component selection in blue-chip aerospace and defense contracts.
In practice, the TWCB476K050CCYZ0000 fills a critical gap between MIL-spec discrete solutions and high-volume commercial alternatives. Projects leveraging its thermal, electrical, and mechanical margins routinely demonstrate fewer component-related field returns and improved maintainability. Selection often reflects not only datasheet metrics but also a tacit understanding of deployed-system lifecycle and the realities of operation far from lab-controlled conditions. The device stands as a keystone for platforms where performance certainty and failure predictability are not simply cost factors but operational imperatives.
Key features and environmental qualifications: TWC-Y Series
The TWC-Y Series possesses a robust thermal endurance, distinctly surpassing conventional wet tantalum capacitors. At its core, the series is engineered for reliable operation at temperatures reaching 200°C, a threshold maintained without significant drift in capacitance or escalation in leakage current. This high-temperature capability directly addresses the persistent challenge of dielectric breakdown and electrolyte stability, factors that typically constrain capacitor life under severe thermal stress.
Crucial to its reliability, each unit undergoes stringent qualification for 500 hours of continuous operation at the upper temperature limit, albeit under derated voltage. Derating serves as a critical mechanism for extending device longevity and minimizing failure rates, as it effectively mitigates internal electrochemical reactions accelerated at elevated temperatures. This characteristic is especially relevant for assemblies exposed to sustained thermal loads, such as in downhole drilling telemetry or high-reliability aerospace control modules. Adherence to these qualification standards translates to predictable operation and service intervals, which is essential for maintenance planning in remote or high-cost access environments.
Environmental resistance is enhanced through hermetic construction, using materials and sealing techniques that restrict moisture ingress and prevent contaminant-facilitated degradation. Hermeticity, verified via helium leak tests and humidity exposure protocols, is integral for applications where moisture could catalyze failure mechanisms like corrosion, dendrite growth, or electrolyte decomposition. This design approach ensures stable electrical parameters even after thermal cycling or immersion in atmospheres with persistently high humidity.
Field deployments have demonstrated that the TWC-Y Series maintains consistent ESR and withstands rapid temperature swings, particularly when soldered onto boards subjected to repeated engine start-stop cycles or active cooling flows. In such cases, the capacitors retain their rated performance profile, reducing the frequency of unplanned replacements and supporting long operational lifespans.
A key insight lies in the significance of integrating thermal management strategies with component selection. While system-level cooling can alleviate localized hot spots, the intrinsic high-temperature rating of the TWC-Y Series acts as a second safeguard, absorbing transient events and providing a buffer against margin erosion. This dual-layer resilience is a distinguishing asset in circuit designs where upstream failures could escalate system-level risk.
Through these features, the TWC-Y Series answers the demands of contemporary mission-critical electronics, providing a blend of electrical stability, environmental ruggedness, and operational predictability that forms a foundation for high-confidence design in challenging environments.

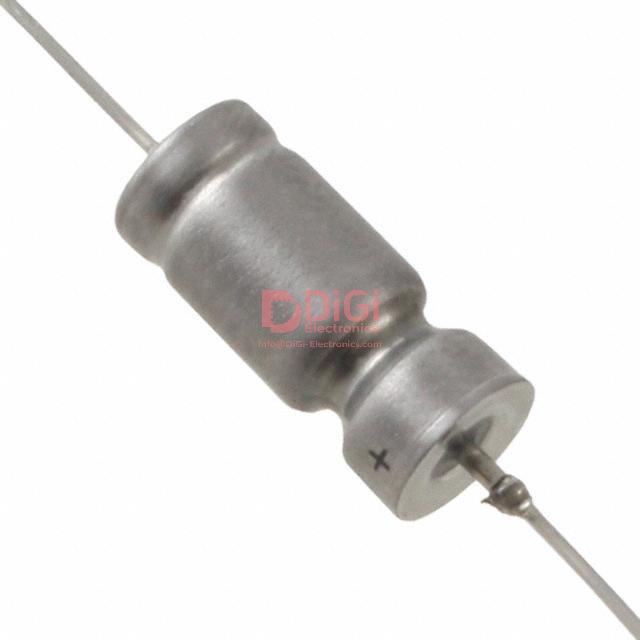

Mechanical construction and hermetic sealing: TWCB476K050CCYZ0000
Mechanical construction and hermetic sealing in the TWCB476K050CCYZ0000 illustrate several critical engineering principles. Central to its reliability is the welded tantalum can coupled with a dedicated header assembly, which achieves a genuine hermetic seal. This sealing mechanism is not merely a barrier but operates at the microstructural level, using metallurgical bonds to prevent ingress of moisture, oxygen, or corrosive gases. The integrity of the electrolyte is directly maintained; without such sealing, electrochemical degradation and evaporation could manifest rapidly under cyclical thermal loads, leading to performance drift or catastrophic failure.
Axial leaded form factor enhances design versatility for assembly in legacy and current PCB architectures. Through-hole integration results in strong anchoring during soldering, which is particularly advantageous where mechanical vibration or pull forces may be encountered, reducing the risk of electrical discontinuity or premature detachment. This physical interface also leverages standardized footprint dimensions, with precise millimeter and inch specifications supporting automated placement and DFM checks in densely populated modules. Such dimensional discipline is crucial for avoiding clearance conflicts, ensuring compliance with IPC-A-610 Class 3 requirements, and facilitating swift replacement during service intervals.
Recurrent field experience demonstrates the long-term stability provided by hermetic packaging. Devices subjected to high humidity, thermal cycling, and aggressive wash processes maintain nominal leakage characteristics, substantiating the efficacy of the tantalum enclosure. Insight from accelerated life testing suggests that microleakage paths, undetectable in standard QA, become statistically dominant in non-hermetic counterparts, confirming the value of robust metallurgical seals. Systems relying on energy storage or precise filtering benefit measurably from this architecture, with reduced drift and superior mean time between failures.
The interplay between material selection, weld protocol, and package geometry directly influences overall thermal management, volumetric efficiency, and reliability. Welded tantalum serves not only as a chemical shield but as an integral part of thermal conduction within the assembly, adding layers to heat dissipation strategies. In advanced aerospace or medical applications, these properties support strict mission profiles where lapse is intolerable, and miniaturization does not compromise longevity. Novel design approaches increasingly incorporate parametric analyses of container seam geometry, optimizing for both pressure containment and vibration resistance. Adoption of such nuanced engineering paradigms converges toward the principle that precision in mechanical construction materially enhances both functional and maintenance outcomes.
Electrical performance parameters: TWCB476K050CCYZ0000
Electrical performance parameters define the operational envelope and application suitability of TWCB476K050CCYZ0000. This capacitor features a nominal capacitance of 47μF, engineered to a ±10% tolerance, referenced at 120Hz, 0.5RMS, and under a 2.2V DC bias at 25°C. Such precise specification supports accurate charge storage and discharge timing in frequency-dependent circuits, particularly where stable filtering or decoupling is essential.
A maximum rated voltage of 50V widens deployment possibilities across mid- to high-voltage domains. This flexibility is valuable in industrial power modules, rail biasing, and robust DC link architectures, where voltage transients and system upsets necessitate high-voltage headroom. In practical systems, this rating enables designers to maintain derating margins—crucial for mitigating voltage-induced degradation and extending device longevity.
Key secondary metrics, including leakage current (DCL), equivalent series resistance (ESR), and dissipation factor, are validated at the aforementioned reference points. Low ESR, in particular, enhances high-frequency noise suppression and limits self-heating under ripple conditions, contributing to both functional reliability and thermal stability. Adherence to tight quality assurance at both lot and part levels ensures that performance variance is minimized, an essential factor for parallel or series arrays in mission-critical platforms.
Environmental robustness is embedded in the capacitor's engineering, limiting parameter drift under fluctuations in humidity, temperature, and voltage cycling. This translates to superior lifecycle predictability in demanding electronic ecosystems, such as long-life automotive ECUs, industrial automation nodes, and precision sensor interfaces. Field deployment under varied ambient conditions consistently reveals minimal capacitance loss and stable leakage characteristics over operational years—a marked differentiator versus less tightly controlled alternatives.
Leveraging the TWCB476K050CCYZ0000 enables a design philosophy centered on minimizing maintenance, assuring electrical margin, and reducing long-term ownership cost through engineered reliability. Subtle design considerations, including mounting method and local PCB heat dissipation, further optimize real-world performance, reinforcing the component’s metric-driven selection in hardened applications. The interdependence of electrical parameters with mechanical and environmental constraints defines a holistic approach, where granular validation at the specification level directly impacts system-level endurance and functional assurance.
High temperature operation and reliability testing: TWCB476K050CCYZ0000
High temperature operation and reliability characterization of the TWC-Y Series, with focus on the TWCB476K050CCYZ0000, hinges on a rigorous framework of accelerated life testing. The standard protocol initiates at 200°C under a strictly regulated 60% derated voltage, simulating worst-case thermal and electrical stresses encountered in automotive, down-hole, and industrial environments. Under these conditions, the device is subjected to a 500-hour duration test. This interval is sufficient to expose latent process defects or material weaknesses without introducing failure mechanisms extrinsic to true field performance, thereby aligning laboratory results with real-world reliability expectations.
Device integrity is evaluated against stringent post-test metrics. Leakage current is constrained to either not exceed double its initial value or maintain an absolute rise of less than 10μA, whichever tolerance window is greater. Such a criterion targets both absolute and relative metrics, effectively accounting for both small-signal and high-leakage baseline devices. This dual gating approach reduces ambiguity in qualification and ensures functional robustness across production variance. ESR (Equivalent Series Resistance) must not surpass a twofold increase, a crucial threshold as ESR escalation under thermal duress correlates directly to energy loss, potential voltage ripple, and self-heating—factors that commonly precipitate early-life failures in high-performance embedded systems. Capacitance variation is rigorously managed, where an increase is capped at under 10% and a decrease tolerated up to 20%. This reflects a focus on ensuring charge storage capacity remains within predictable bounds, a non-negotiable for timing, smoothing, or pulse-power delivery applications.
These assessment parameters do not merely serve as pass/fail indicators but rather function as feedback controls in both the design iteration loop and process optimization cycle. The careful calibration of acceptance values integrates field-return data and predictive reliability modeling, closing the gap between theoretical endurance and practical application performance. In mission-critical deployments, such as power conversion modules or aerospace actuators, these quantifiable limits form the backbone of derating policies and operational risk management.
From field deployments, lessons have emerged: shorter soak times or relaxed voltage deratings can accelerate early attrition, evident in subtler forms of ESR drift or gradual breakdown of dielectric integrity not immediately surfacing as outright failures. Conversely, more aggressive derating, although beneficial for margin, is occasionally counterproductive by masking marginal build variances, thus undermining process transparency. The sweet spot adopted here—200°C at 60% rated voltage—was distilled from these operational insights, balancing test severity against mode relevance without inflating qualification cost or lead time.
The unique robustness of the TWCB476K050CCYZ0000 at elevated temperatures is not a product of single-variable optimization but the outcome of interlaced control across material selection, process uniformity, and empirical validation. Its extended qualification dataset forms a critical reference for engineers specifying capacitors in thermally active nodes, providing a high-confidence baseline for derating, lifetime modeling, and maintenance scheduling. Ultimately, this disciplined, layered approach to reliability transforms the device from a mere passive component into an enabling element of resilient system design.
Standard ratings and reference conditions: TWCB476K050CCYZ0000
Standard ratings and reference conditions for the TWCB476K050CCYZ0000, along with the extended TWC-Y Series, are anchored to controlled measurement environments set at 25 °C. This reference temperature forms the baseline for evaluating core electrical parameters—such as capacitance, dissipation factor, and leakage current—ensuring that data generated in the laboratory translates predictably into system-level integration. These measurements rely on defined excitation voltages and frequencies tailored to the dielectric type and construction, allowing device comparisons to remain meaningful across procurement cycles, design revisions, and multi-sourcing strategies.
Capacitance ratings and dissipation factors, when reported under identical reference conditions, serve as a pivotal benchmark in the initial selection and qualification process. For instance, a standardized dissipation factor specification enables accurate modeling of AC losses, supporting thermal design for high-density layouts where self-heating and phase shifts can undermine circuit stability or long-term reliability. Furthermore, by adhering to strict test conditions, the manufacturer mitigates the spread in delivered electrical performance, thus simplifying derating strategies and value engineering during platform development.
A critical facet of this standardization approach is the manufacturer’s capability to qualify and deliver higher voltage ratings within an unchanged case size—without degradation of specified reliability indexes. This flexibility stems from design optimization in cathode geometry, dielectric formulation, and process controls, which together suppress fault initiation and improve breakdown resistance. As a result, the device portfolio can accommodate system upgrades or safety margin enhancements without redesigning board layouts or enclosures. This forward-compatibility feature is particularly valuable in modular hardware ecosystems where lifecycle cost control and rapid variant management are essential.
From a practical standpoint, reference-rated parameters published at 25 °C help establish clear design rules for both nominal and worst-case scenarios. For example, derating voltage margins for elevated operating temperatures employs a known baseline, which assists in constructing robust qualification plans and satisfying regulatory documentation requirements. During supply chain disruptions or allocation phases, documented parity in ratings across lot variations provides confidence that no offset in performance or lifetime risk is introduced, provided the field application remains within the validated performance envelope.
This layered framework—anchored in precise measurement, backward-compatible upgrades, and transparent qualification thresholds—enables efficient risk management throughout the product lifecycle. It reflects an implicit commitment to both system efficiency and design resilience. Such principles not only streamline engineering workflows but also facilitate rapid adaptation to evolving application needs, where incremental performance demands or heightened compliance standards may arise.
Potential equivalent/replacement models: TWC-Y Series
Potential equivalents to the TWCB476K050CCYZ0000 in KYOCERA AVX’s TWC-Y Series demand a multi-factor evaluation, extending beyond basic electrical parameters. The foundational selection criteria include matched capacitance, rated voltage, and package size; however, engineering decisions in mission-critical or long-life applications require a forensic alignment of high-temperature endurance, leakage current stability, and mechanical robustness. The TWC-Y Series specifically targets high-reliability environments with wet tantalum construction delivering consistent performance under extended thermal cycling and electrical stress.
In practical substitution workflows, equivalent hermetic sealing should be scrutinized through test methodologies such as accelerated life and leakage detection, ensuring comparable vapor ingress resistance. Observed discrepancies in sealing quality can drive premature failure modes in high-humidity or rapid thermal ramp conditions. Engineers also benefit from referencing batch-specific life test data, as process variations subtly impact capacitor longevity and drift characteristics—a factor becoming apparent in aerospace and defense retrofits. Form factor congruence requires assessment at both case code and terminal configuration level to guarantee drop-in mechanical interchange without re-layout or board requalification.
Application layering further distinguishes substitution choices. In power regulation, matched ESR and surge current ratings govern pulse shaping and energy discharge profiles—minor mismatches can introduce voltage spikes or increased self-heating. High-density memory backup circuits prioritize ultra-low leakage and stability across extended stand-by, making historical lot performance and manufacturer traceability indispensable during model selection. Deploying screened sample lots under representative stress profiles validates theoretical equivalence and uncovers less-documented reliability differentiators.
The TWC-Y Series exhibits incremental improvements in process control and material purity across its production cycles; subtle shifts in electrolyte formulation or cathode design can minimally affect dynamic behavior and field failure rates. This underscores the necessity for a system-level qualification matrix, rather than a siloed part-for-part swap, particularly where design legacy and ongoing maintainability converge. Models matched on datasheet alone may not uniformly meet latent or application-specific standards—holistic evaluation ensures operational margin is preserved, supporting uninterrupted device lifecycle and compliance with regulatory standards.
Careful documentation of the substitution rationale and ongoing field observations integrates risk management with engineering practice. In effect, this approach safeguards reliability continuity when introducing equivalent TWC-Y Series models, fortifying both immediate functionality and long-term system dependability.
Conclusion
For mission-critical architectures, component selection hinges on ensuring both operational robustness and long-term stability, particularly under demanding thermal and environmental extremes. The KYOCERA AVX TWCB476K050CCYZ0000 from the TWC-Y Series exemplifies a class of hermetically sealed tantalum capacitors engineered for high reliability in adverse conditions. At the core, its glass-to-metal seal technology provides an inert boundary against moisture ingress, corrosive vapors, and environmental contaminants, directly mitigating key failure modes inherent to traditional resin-sealed devices.
Electrical performance metrics, such as capacitance stability, low leakage current, and minimal ESR variation over temperature, define this series’ suitability for voltage-critical rails, power-bus stabilization, and sensitive analog filtering in aerospace, defense, and downhole logging systems. These applications often encounter simultaneous high shock, vibration, and temperature cycling, exposing lesser designs to rapid degradation. The TWC-Y Series’ construction, with its robust mechanical enclosure and consistent internal pressure control, thus maintains parameter integrity where board-level stresses are unrelenting.
During the selection process, voltage derating emerges as a primary design safeguard, not simply to comply with datasheet recommendations, but to provide margin against transient overshoots and environmental drift. Practical experience with tantalum capacitors under power cycling confirms that a 50–70% derating window optimizes field life, especially under sustained high-temperature exposure. At the same time, verifying the device’s hermeticity, as certified through rigorous leak tests, preempts latent failures due to microleakage, a non-trivial consideration in systems where service intervention is impractical.
Temperature endurance, both in terms of upper ceiling and rapid cycling capability, must be viewed through the lens of the application’s thermal profile. Real-world deployment in avionics or oilfield downhole systems demonstrates that devices meeting the TWC-Y’s rated curves can outlast less robust alternatives by several operational cycles, translating into tangible reductions in total cost of ownership and unscheduled downtime.
In evaluating replacements or alternates within the TWC-Y portfolio, comparison must go beyond matching ratings. Scrutiny of long-term drift, rate of self-healing after surges, and the statistical spread of leakage values yield a more accurate risk profile for high-reliability customers. Integrated experience suggests that the most prudent engineering methodology incorporates not only adherence to electrical and mechanical ratings, but also supplier process control history, individual lot qualification data, and environmental stress screening where feasible.
The convergence of material science advancements and horizontal application demand culminates in capacitors like the KYOCERA AVX TWCB476K050CCYZ0000, whose performance envelope supports both emergent system needs and legacy design upgrades. In practice, the optimal device selection reflects a blend of nuanced analysis and direct application feedback, continually refined as new operational data becomes available. This iterative interplay secures a platform not just for compliance, but for sustained operational excellence in electronics deployed beyond benign environments.
