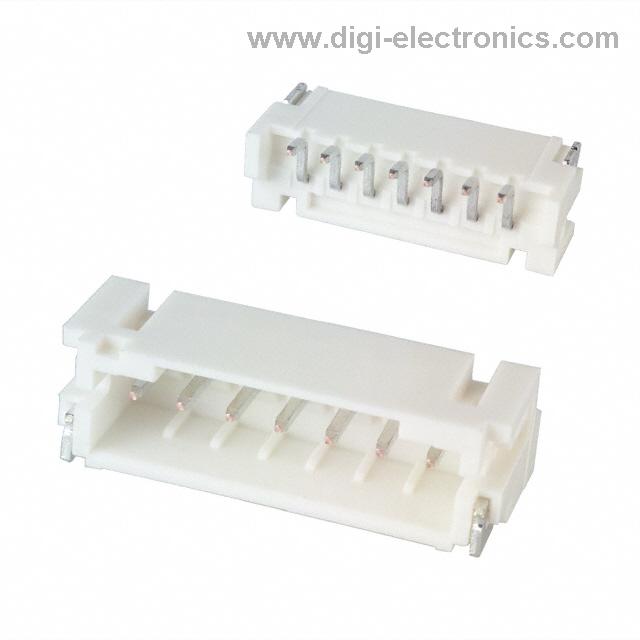

Product overview: S7B-PH-SM4-TB PH Series Header from JST Sales America Inc.
The S7B-PH-SM4-TB, a surface-mount, right-angle header in JST’s PH Series, addresses the evolving constraints of high-density electronics design. With its 2.0 mm pitch and low-profile geometry, it suits applications that demand efficient wire-to-board connectivity while preserving limited PCB real estate. The header’s 7-position configuration provides ample routing options for both signal and low-power distribution, accommodating interface flexibility in compact devices.
Engineered for surface-mount compatibility, the S7B-PH-SM4-TB leverages industry-standard reflow soldering processes. Its SMD termination streamlines automated assembly, eliminating the need for manual intervention typical with through-hole parts and directly supporting high-volume, cost-sensitive manufacturing environments. This results in enhanced process yield and minimized placement errors, which is particularly critical during scaling from prototype to mass production. In practice, the inclusion of pick-and-place features, such as planar surfaces and robust lead coplanarity, ensures precise alignment, further supporting repeatability and quality assurance.
The underlying reliability of the PH Series is reinforced in this variant through materials selection and contact design. Phosphor bronze contacts with selective tin plating balance solderability with long-term corrosion resistance, mitigating risks of intermittent connectivity—a common concern in field-deployed instrumentation. The right-angle orientation of the header often interfaces efficiently with ribbon cables or discrete wire harnesses routed along the board’s edge, optimizing spatial planning within enclosures and easing assembly logistics. Clear retention features provide tactile feedback during mating, reducing stress on solder joints and diminishing long-term fatigue under vibration or thermal cycling.
Where high I/O density, low-profile requirements, and robust mating cycles converge—such as in handheld devices, sensor interfaces, and modular industrial controllers—the S7B-PH-SM4-TB offers a proven, application-ready solution. The header’s engineering is emblematic of a broader trend toward device miniaturization and design for manufacturability, where connector selection influences both system reliability and production cost structure. Thoughtful integration of such interconnects, when evaluated alongside mechanical and electrical constraints, forms a foundation for scalable and maintainable electronics architecture.
Key electrical and mechanical specifications of the S7B-PH-SM4-TB PH Series Header
The S7B-PH-SM4-TB PH Series Header integrates essential electrical and mechanical properties critical for robust and reliable PCB interconnections. Its current-carrying capacity, rated at 2A AC/DC with AWG #24 conductors, positions it for deployment in circuits with moderate power demands, such as control signal interfaces and auxiliary power distribution lines. The 100 V AC/DC voltage rating intersects with a significant portion of low-voltage application domains, supporting a range of protective topologies where overvoltage resilience remains a priority.
Mechanistically, the connector’s operating temperature envelope extends from –25°C to +85°C, explicitly taking into account temperature rise during electrical load. This attribute indicates a carefully optimized housing and contact material selection, minimizing thermal stress and supporting long-term performance stability. Such a range aligns with the requirements of industrial electronics and compact consumer modules deployed in variable ambient conditions, including equipment subject to rapid on/off cycling and densely packed PCBs prone to localized heating.
The S7B-PH-SM4-TB exhibits a disciplined resistance profile, with initial contact resistance not exceeding 10 mΩ and maintaining a sub-20 mΩ threshold after environmental stress assessment. Low and stable resistance underlines a robust contact design, typically leveraging a combination of precision plating and spring force geometry to ensure enduring electrical integrity under mechanical shock, vibration, and exposure to airborne contaminants. High insulation resistance, specified beyond 1,000 MΩ, and a dielectric withstand capability of 800 VAC for one minute, deliver clear buffers against creepage, leakage, or tracking. This supports deployment in proximity to highly sensitive analog signal channels or critical digital buses where signal-to-noise optimization is paramount.
On the integration layer, wire accommodation spans AWG #32 to AWG #24 conductors, supporting insulation diameters from 0.5 mm to 1.5 mm. This design latitude streamlines inventory management and field servicing, particularly where wire harnesses may fluctuate in specification or where design iterations necessitate backward compatibility. PCB mounting compatibility with thicknesses from 0.8 mm to 1.6 mm elevates the header’s utility, matching both legacy assemblies and contemporary multilayer designs, and reducing the risk of board integrity compromise during rework and mass production.
In practical deployment, these specifications combine to offer a connector that balances miniaturization with mechanical resilience, favoring layouts where space and cost constraints co-exist with the necessity for stable, repeated mating and demating cycles. Experiences in ruggedized device design highlight that connectors maintaining low contact resistance post-environmental screening directly correlate with reduced intermittent faults and enhanced device uptime—an attribute that often surpasses mere datasheet compliance. Standardized form factors further simplify PCB routing and custom jig development, accelerating prototyping and shortening product timelines.
A nuanced evaluation of the S7B-PH-SM4-TB suggests its optimal role in not only conventional harness plug-in applications but also in modular PCBs where reconfigurability and diagnostic probing are essential. The underlying design choices—clearance, contact integrity, insulation reliability—directly influence both assembly yields and long-term field performance, positioning the S7B-PH-SM4-TB as a strategic connector option in environments where reliability is weighted alongside miniaturization.
Mechanical design attributes and space-saving advantages of the S7B-PH-SM4-TB PH Series Header
Mechanical architecture of the S7B-PH-SM4-TB PH Series Header exemplifies advanced space optimization, driven by its minimal 8 mm mounting height and narrow 4.5 mm header width in the top-entry variant. This condensed form factor permits precise placement even within highly congested PCB zones, well-suited for modern circuit designs where spatial constraints are stringent and component real estate is at a premium. The surface-mount orientation further enhances assembly efficiency and supports the increasing trend toward automated production processes, eliminating the need for bulky through-hole fixtures and minimizing board layer consumption.
The boxed, shrouded geometry of the header delivers more than mechanical protection; it constitutes an active alignment guide, directing mating connectors into correct position and mitigating risks of pin stubbing or socket misalignment during high-throughput assembly. By enveloping the mating area, the shroud simultaneously shields conductive interfaces from incidental foreign contact and environmental particulate, preserving electrical performance over the connector’s service cycle. This structural rigor finds practical benefits in portable electronic platforms or industrial controllers subjected to continual motion or external vibration. Under such dynamic conditions, the inherent vibration resistance of the S7B-PH-SM4-TB helps ensure persistent contact stability, reducing intermittence and downtime.
Scalability is maintained by accommodating a pin count array from 2 to 16 positions, with the S7B-PH-SM4-TB specifically optimized for seven-line interface requirements. This targeted approach presents a balance between I/O density and manageable handling during placement and rework. Within high-frequency production environments, the uniform pin pitch and flat header base facilitate consistent solder joint formation, reducing the incidence of tombstoning or solder bridging typical in denser layouts. The process-friendly nature of this header thus integrates seamlessly within standard SMT line operations, delivering repeatability and quality assurance without extra mechanical tooling.
An often-overlooked advantage resides in the mechanical reinforcement imparted by the shroud, which absorbs insertion and extraction stresses, protecting the solder joint from shear forces during field servicing. This integrally extends product lifecycle and supports miniaturized device reliability standards. As electronic devices contract in footprint, these subtle design choices—precise dimensional control, guided mating features, and robust vibration countermeasures—collectively become decisive in achieving both electrical continuity and mechanical survivability in next-generation wire-to-board assemblies. The S7B-PH-SM4-TB's specific implementation demonstrates how nuanced connector design can serve as an enabler for advanced compact system architectures, supporting both automated factory build-up and long-term operational demands.
Material and surface finish considerations for the S7B-PH-SM4-TB PH Series Header
Material selection and surface engineering play a pivotal role in the performance and reliability of the S7B-PH-SM4-TB PH Series Header. At the contact level, copper alloy is employed for its optimal balance between mechanical durability and superior electrical conductivity. The subsequent application of tin plating addresses the dual challenge of maintaining low contact resistance over time and minimizing manufacturing costs. Tin’s surface characteristics not only resist oxidation but also facilitate repeatable solder joints, a core consideration in high-volume SMT assembly lines.
The connector’s housing is constructed from polyamide (PA), selected for its stability under thermal stress and resistance to mechanical deformation—key attributes during reflow soldering processes and sustained exposure within activated electronic assemblies. The availability of heat-resistant PA in both natural and ivory colorways for SMT parts supports operational consistency, reducing potential color drift caused by processing temperatures and enhancing visual differentiation in complex board designs.
Mechanical reinforcement is achieved through the use of tin-plated copper alloy structural parts. This combination fortifies the connector against fatigue associated with repeated mating and unmating cycles, while delivering tolerance to environments with fluctuating or sustained elevated temperatures. The engineered synergy between conductor and reinforcement materials enables deployment in both consumer and industrial contexts where vibrational stress or thermal cycling threaten connector lifespan.
Product designation such as (LF) (SN) signals intrinsic compliance with global standards, affirming the absence of hazardous substances and adherence to RoHS2 criteria. This regulatory alignment facilitates trouble-free integration into international designs, a necessity for scalable production and cross-market compatibility.
For specialized performance requirements, gold plating options extend contact longevity and stability, particularly in applications demanding ultra-low contact resistance and exceptional resistance to environmental contaminants. Configurable housing colors enable straightforward circuit identification, reduce the risk of assembly errors, and support custom branding initiatives—all without compromise to underlying material properties.
Extensive in-field deployment has validated the material system’s robustness under varied operational loads. Repeated cycling tests have demonstrated the connector’s ability to maintain electrical and mechanical integrity far beyond standard expectations, even when subjected to aggressive rework procedures or extended exposure to industrial cleaning agents. The interplay between compositional choices and surface finishes is fundamental to achieving a connector platform that is resilient, adaptable, and manufacturable at scale. An engineering-centric approach to material and surface finish not only optimizes immediate functional metrics, but also serves as a strategic hedge against unpredictable field failure modes, affirming the S7B-PH-SM4-TB as a reliable solution for high-density, high-reliability interconnect architectures.
PCB mounting guidelines and assembly layout for the S7B-PH-SM4-TB PH Series Header
Integrating the S7B-PH-SM4-TB PH Series Header within PCB assemblies demands precise pattern layout to achieve robust electrical and mechanical performance. Surface-mount headers require exacting control over copper pad geometry, with a strict pitch tolerance of ±0.05 mm mitigating lateral misalignment. Such precision prevents cumulative deviation that can compromise solder joint integrity, especially under thermal cycling or mechanical stress. Even minor inconsistencies in pattern pitch lead to uneven contact force distribution, increasing susceptibility to intermittent connections and premature wear during operation.
Selecting an appropriate PCB thickness is paramount to ensure the connector’s anchoring is secure. Adhering to a thickness range between 0.8 mm and 1.6 mm harmonizes with prevalent substrate standards, optimizing solder reflow profiles and mechanical retention. Variances outside this envelope often exacerbate co-planarity challenges and undermine the uniformity of solder fillets, impeding reliability in vibration-prone environments. In applied scenarios, consistent results are achieved when the substrate rigidity matches header mechanical load specifications, particularly for boards subject to repetitive mating cycles.
Component layout benefits from referencing JST’s technical documentation for pad dimensions and defined keep-out zones. These references eliminate ambiguity during stencil design and enhance first-pass yield. Integrating optional suction tape for top-entry S7B-PH-SM4-TB headers streamlines automated placement, reducing pick error rates and minimizing stress on delicate terminals during high-speed assembly. In dense layouts involving adjacent SMT components, proper keep-out planning enables flux escape and heat dissipation during soldering while protecting critical mating areas from solder wicking and bridging.
For connectors utilized in automated crimp or mating workflows, selection of contact types directly influences long-term stability and ease of assembly. Low-insertion force types such as SPH-002T-P0.5L optimize insertion cycles by reducing wear on mating terminals while maintaining sufficient retention force to resist vibration-induced dislodgement. Testing in simulated use conditions reveals that aligning contact specification with anticipated vibration levels extends maintenance intervals and supports consistent operational uptime.
A progressive optimization approach prioritizes closed-loop feedback from assembly and in-field performance, refining pattern layout and header choice for each application context. The subtle trade-off between assembly throughput and connection longevity often determines selection criteria: balancing fast automated operations with stringent reliability requirements remains a central engineering consideration. By embedding empirical assembly insights in the design phase, integration of PH Series SMT headers is elevated from routine implementation to tailored solutions that anticipate lifecycle demands.
Model number allocation and options within the S7B-PH-SM4-TB PH Series Header family
The S7B-PH-SM4-TB model within the PH Series Header family demonstrates a rigorous, coded system for component specification that supports precise compliance with diverse application requirements. The model structure decodes multiple parameters: header orientation is designated by ‘S’ for side-entry or alternatives for top-entry; ‘B’ indicates a boxed housing format essential for guided mating and robustness; the 'PH' segment consistently reveals the compatible series, establishing baseline electrical and mechanical compatibility; 'SM4' specifies a right-angle surface-mount configuration, facilitating automated assembly and optimizing PC board layout for minimal footprint and optimal routing; lastly, ‘TB’ denotes tape-and-reel packaging, aligning with high-volume SMT processes and ensuring streamlined logistics.
Selection criteria for these connectors are multidimensional. Header orientation directly influences accessibility for automated insertion and affects component stacking height, critical in space-constrained designs frequently encountered in consumer electronics and industrial control modules. The boxed style not only enhances insertion guidance but also provides mechanical shielding during assembly stress, minimizing the risk of bent or misaligned pins. When evaluating surface-mount versus through-hole styles, factors such as assembly throughput, rework flexibility, and board-level mechanical anchoring must be balanced. Surface-mount variants like the SM4 are generally preferred in high-density layouts and where reflow soldering standardizes build quality.
Color variance in housings can facilitate visual verification during board population, reduce connector mismatch risk, and support lean manufacturing error-proofing. Utilizing colored plastics is especially relevant in environments implementing Kanban or Six Sigma methodologies, allowing rapid part recognition. Circuit count, another indexed model element, contextualizes the device’s role: high pin counts provide scalability but increase complexity in traces and require meticulous pin-out planning for EMI mitigation and signal integrity preservation.
JST’s detailed technical documentation and tool compatibility guides enable tailored solutions for crimp and assembly, critical where reliability targets are non-negotiable, such as automotive, medical device, or industrial sensor deployments. Compatibility with strip-form contacts offers flexibility for production scale; this factor can be instrumental when transitioning prototypes to mass manufacture or when maintenance swap-out speed is a priority.
Practically, integrating the PH Series family—especially boxed, SMT variants like S7B-PH-SM4-TB—streamlines PCB design by balancing mechanical protection and solderability with manufacturing efficiency. Empirical experience reveals that such header choices often lead to improved first-pass yield rates, reduced rework time, and ensure enduring connection robustness in vibration-prone or thermal cycling scenarios. Emphasizing model clarity in design documentation is not just a procedural step—it's a quality assurance practice that minimizes downstream ambiguity, cost, and risk.
A nuanced approach to connector model selection therefore demands diligent consideration of not only formal parameters listed in the allocation code, but also the tacit interactions between PCB geometry, assembly line constraints, reliability objectives, and supply chain logistics. Through this lens, model number allocation is more than mere cataloging; it is a strategic tool for convergence between engineering detail and operational excellence.
Potential equivalent/replacement models for the S7B-PH-SM4-TB PH Series Header
Selecting Equivalent or Replacement Models for the S7B-PH-SM4-TB PH Series Header requires a thorough understanding of the underlying mechanical and electrical design parameters that govern wire-to-board header connector functionality. Central to this process is the alignment of mating interface geometry, footprint compatibility, and electrical rating with the original specification. The PH Series from JST offers a well-defined range, spanning circuit counts from 2 to 16 positions, which supports flexibility in layout planning for scalable or modular board designs. Variations in entry direction—top-entry or side-entry—directly impact PCB routing and enclosure constraints, often dictating product selection during the transition from concept to production hardware.
Surface-mount (SMT) and through-hole mounting present distinct trade-offs. Surface-mount headers, such as the S7B-PH-SM4-TB, enable automated placement, reduce board real estate usage, and improve high-frequency signal integrity due to minimized lead inductance, but require precise process control to mitigate coplanarity and solder joint reliability concerns. In contrast, through-hole options extend mechanical retention and are better suited for hybrid technology assemblies or applications subject to repetitive insertions and extractions, though at the cost of increased assembly steps and board space. These subtle distinctions become critical when balancing factors like mechanical stress, panelization tolerances, and rework probability.
Electrical performance and contact reliability can be tailored through contact design and material selection. For assemblies needing lower insertion force, evaluating contacts such as the SPH-002T-P0.5L helps mitigate connector wear during frequent mating cycles or addresses ergonomic constraints in dense or manually assembled harnesses. Where environmental robustness or mission-critical operation is required, headers with gold-plated contacts or reinforced housings can deliver reliable contact interface and corrosion resistance, though at a premium. Notably, maintaining consistent manufacturer part numbers for both header and receptacle ensures long-term availability and minimizes risk during multi-source procurement.
In practice, migration between header variants—whether within the JST PH Series or to equivalent offerings from other vendors—demands verification against mating receptacle compatibility, terminal pitch, and PCB pad design. It is prudent to involve connector supplier technical documentation and sample evaluations early in the selection process, identifying nuances such as latch orientation, polarization features, and recommended PCB land patterns. During manufacturing transitions, close monitoring of insertion force, retention testing, and automated optical inspection (AOI) validation will surface potential issues otherwise overlooked in schematic-level substitutions.
A nuanced perspective relates to supply chain and lifecycle management. Choosing widely adopted form factors and maintaining configurability through interchangeable headers and terminals reduces obsolescence risk and supports field repairs. By leveraging families such as JST’s PH Series, design teams gain access to a stable product ecosystem with incremental options—ranging from custom colors for visual management to variants supporting secure locking or unique keying, tailored to the system architecture and risk profile.
Integrating these factors into header selection not only advances electrical and mechanical reliability but also streamlines long-term maintenance, revision control, and user experience—critical for both engineered product value and operational efficiency.
Conclusion
The S7B-PH-SM4-TB PH Series Header by JST Sales America Inc. integrates densely within PCB architectures where space efficiency and mechanical stability are mission-critical. The underlying contact system employs a reliable spring-action mechanism, optimizing signal integrity by maintaining consistent contact pressure despite vibration or thermal cycling. Leveraging phosphor bronze contacts with tin or gold plating options, the header presents a compelling balance between electrical conductivity, corrosion resistance, and cost considerations—allowing tailored selection based on application-specific reliability requirements and lifecycle expectations.
Design flexibility manifests in a matrix of mounting orientations, pin counts, and stack heights, supporting intricate routing on multilayer boards and streamlining parallel module integration. The SMT mounting profile of the S7B-PH-SM4-TB delivers robust coplanarity and minimizes shadowing during reflow soldering, a frequent concern in high-density layouts. Its compatibility with automated optical inspection standards ensures efficient post-assembly verification, supporting scalable production environments with stringent QA protocols.
Layered into demanding use cases such as industrial controllers, sensor modules, and IoT devices, the connector demonstrates reliable engagement and disengagement cycles under variable load conditions. In practice, attention to footprint accuracy during PCB layout, adherence to recommended reflow profiles, and correct orientation during placement collectively mitigate the risks of cold solder joints or insufficient mating, preserving long-term reliability. Moreover, accommodations for future upgrades are inherent within the PH Series’ standardized pitch and pin arrangements, enabling backward compatibility and reducing redesign friction when performance enhancements are required.
Notably, the S7B-PH-SM4-TB and its broader PH Series siblings deliver a cost-efficient convergence of miniaturization, manufacturability, and electrical performance. Close collaboration between design, engineering, and procurement functions unlocks these benefits fully—especially when leveraging JST’s cross-series compatibility to manage supply risks and scale product variants. Integrating such connectors into OEM workflows consistently yields improvements in assembly throughput, component inventory rationalization, and field serviceability, ultimately reinforcing product integrity and enabling more dynamic engineering responses as application landscapes evolve.
