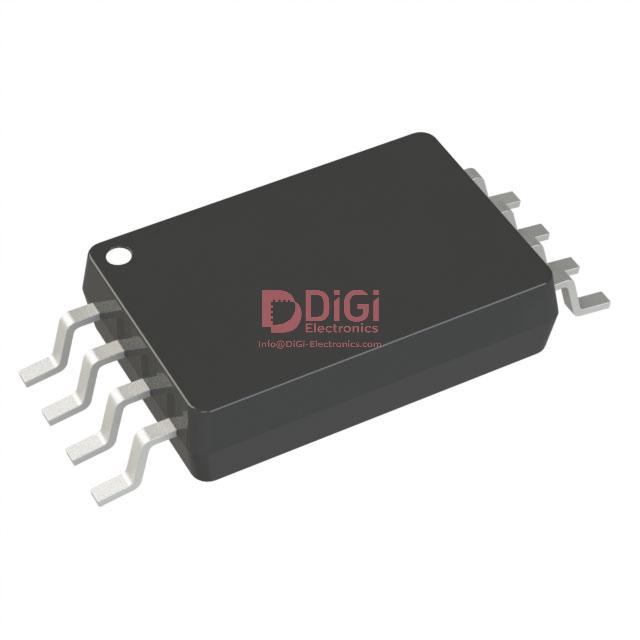

Product Overview: 24LC16B-I/ST EEPROM by Microchip Technology
The Microchip 24LC16B-I/ST EEPROM is designed to address the rigorous demands for non-volatile data storage within embedded systems, leveraging a robust I2C serial interface that ensures compatibility and streamlined communication with a broad range of microcontrollers. At its core, the device embodies a 16-kilobit memory, segmented into eight blocks of 256 bytes each. This block structure enables selective write and erase operations, minimizing write-cycle fatigue and allowing for targeted data management. Effective block management is especially critical when storing frequently updated parameters, log files, or calibration constants, as it reduces unnecessary wear and enhances the operational longevity of the device.
The device’s architecture is inherently optimized for integration into power-sensitive platforms. The single-supply voltage requirement simplifies power tree complexity, easing design-in at both the schematic and PCB layout levels. Low standby and active current profiles allow the 24LC16B-I/ST to function efficiently within battery-powered domains such as remote sensors and portable instrumentation, where minimizing quiescent loss is paramount. Engineers consistently exploit these power features during deep sleep and wake cycles of host microcontrollers, ensuring persistent data retention without compromising run-time efficiency.
I2C protocol compliance not only guarantees direct interfacing with standard controllers but also supports multi-drop operation. This flexibility allows multiple EEPROMs or other peripherals to coexist on the bus with clearly assigned addresses. In advanced embedded platforms—such as distributed industrial controllers or modular sensing nodes—this feature provides significant headroom for future scalability and hardware upgrades. Close attention to bus timing and noise immunity as per the I2C standard further supports robust performance in electrically noisy environments typical of industrial equipment.
On the firmware abstraction side, memory segmentation enables straightforward implementation of file systems, ring buffers, and fault-tolerant data logging. These organizational patterns are especially valuable when capturing sensor histories, runtime states, or security credentials. The flexible access granularity, coupled with rapid read/write cycle times, fosters efficient implementation of wear-leveling and data integrity algorithms. In practice, this translates into systems that remain operationally resilient even after extensive field deployment and data cycling.
The non-volatile property of the 24LC16B-I/ST extends applicability well beyond standard data retention tasks. Security-centric applications leverage the EEPROM for storing cryptographic keys, device IDs, and firmware signatures, benefiting from the combination of non-volatility and hardware isolation. Automotive electronics, which operate across harsh temperature gradients and frequent power cycles, further capitalize on the device’s endurance by securing critical configuration and diagnostic information.
Strategically, the 24LC16B-I/ST balances the memory density with fine access control, making it a reliable backbone for rapid-prototyping and iterative design in embedded solutions. The inherent simplicity of its pinout combined with robust supply chain support ensures consistent manufacturability and long-term availability—a key factor for longevity-driven markets. When analyzed holistically, the device’s feature set and engineering adaptability make it a foundational component for scalable, resilient, and power-conscious system architectures.
Core Features of 24LC16B-I/ST EEPROM
The 24LC16B-I/ST EEPROM is engineered to provide a robust, adaptable memory solution across a wide range of embedded environments. At its foundation, the device relies on low-power CMOS technology, which confers major advantages in both energy efficiency and thermal management. The requirement for a single supply voltage, operable down to 2.5V, streamlines power system design and simplifies integration with modern logic families. This aspect is especially valuable in densely packed PCBs or battery-sensitive instrumentation, where minimizing overhead is essential.
Efficient current consumption further distinguishes the device: typical standby currents measure at just 1μA, with operational read currents capped at 1mA. Such low-power metrics reduce total system consumption, enabling designers to deploy nonvolatile storage without substantial impacts on long-term system autonomy. These current characteristics become particularly advantageous in scenarios such as sensor data logging and periodic state retention in IoT nodes.
I2C compatibility in this chip offers support for multiple bus speeds, spanning 100kHz to 1MHz. This enables seamless interoperability with different processing platforms and allows for tailored optimization between reliability and data throughput. In applications involving firmware updates or real-time system parameter logging, the selectable bus rate becomes pivotal, allowing for fine-grained control of communication timing, noise immunity, and bandwidth allocation on shared buses.
The integration of Schmitt trigger inputs on control lines substantially improves noise rejection, a key consideration in electrically hostile environments. This design choice ensures that spurious noise on the bus does not result in inadvertent state changes or data corruption, a risk that is magnified as line lengths and external interference increase. Deployments in factory automation or automotive controllers routinely benefit from these noise-resistant input stages, as signal integrity directly underpins system dependability.
Hardware-based write-protect is implemented to prevent unauthorized or accidental modification of stored data. In safety- or security-critical deployments, this feature mitigates the risk of parameter tampering, firmware corruption, or loss of calibration constants due to programming oversights or malicious activity. Practically, toggling this protection can be mapped to maintenance windows, offering a simple physical or logic gate to control nonvolatile memory accesses.
A 16-byte page write buffer enhances throughput for sequential data storage. By batching writes, the device reduces overall memory access time and maximizes traffic efficiency, particularly in logging applications or configuration storage within state-driven designs. The underlying self-timed erase and write circuitry further optimizes programming speed, consistently delivering page writes in the sub-5ms range. This supports rapid nonvolatile storage cycles in time-sensitive systems without risking data integrity from premature power-downs—a frequent challenge in field deployments.
The 24LC16B-I/ST is rated for over 1,000,000 write/erase cycles per cell and supports data retention in excess of 200 years. Such durability enables reliable long-term deployment in systems where memory cannot be routinely serviced or replaced, such as distributed monitoring clusters and legacy industrial controllers. High ESD susceptibility, exceeding 4,000V, underpins deployment in environments prone to handling-induced or field EMI events, reducing field failures attributable to routine electrostatic exposure.
Compliance with global standards, including RoHS and automotive AEC-Q100, reflects the chip’s suitability for projects subject to regulatory or automotive qualification regimes. This universality streamlines supply chain integration and ensures long-term availability for global market production. The broad operational temperature range, spanning from -40°C up to 125°C, extends applicability into extreme industrial, automotive, or outdoor sensor networks that must maintain data persistence and reliability under severe environmental stressors.
In summary, the 24LC16B-I/ST addresses a comprehensive set of design risks—power, integrity, endurance, protection, and compliance—making it a preferred solution for engineers scaling from consumer products to industrial and automotive platforms. Notably, the combination of low-power operation, high reliability, and environmental resilience permit innovative systems architecture where data persistence is a prerequisite despite operating constraints or regulatory rigor.
Electrical Performance and Endurance of 24LC16B-I/ST
Engineered for deployment under rigorous operating conditions, the 24LC16B-I/ST exemplifies EEPROM reliability through its electrical specification and endurance metrics. The device’s absolute maximum ratings are reflective of robust die design and process controls, with the Vcc tolerance reaching up to 6.5V and validated thermal limits spanning –40°C to +125°C. Such extended range thermal capability enables integration into systems exposed to fluctuating ambient environments, including industrial automation modules, automotive control units, and remote sensing platforms. This flexibility is particularly valuable where temperature excursions or unpredictable supply variations could otherwise compromise memory subsystem integrity.
Embedded ESD protection circuits on every device pin are crucial for maintaining performance in electromagnetically active environments. This mitigation strategy ensures system-level resilience against transient voltage surges—common in densely populated PCB footprints or motor drive enclosures—reducing susceptibility to latent faults and operational interruptions. The effectiveness of these protections can be observed in field applications involving frequent connector cycling or exposure to unshielded cabling, where ESD stress remains a persistent threat.
At the core of the device, the EEPROM cell array leverages mature fabrication and programming algorithms to achieve a minimum of 1 million erase/write cycles per cell. This characteristic is integral to use cases involving persistent parameter logging, in-system configuration updates, and frequent calibration routines. The underlying cell design incorporates wear-leveling and error detection logic, minimizing fatigue accumulation and bitline disturbance even under repetitive rewrites—a key differentiator from less robust memory architectures. Performance retention under high duty-cycle operation confirms the device’s suitability for smart sensor nodes, where distributed memory nodes cycle data frequently throughout operational life.
The assurance of data retention, rated to exceed 200 years, establishes the 24LC16B-I/ST as a principal candidate for systems requiring verifiable, long-term, non-volatile archival. This retention performance is attributed to optimized oxide stack integrity and precision control of cell leakage currents during silicon processing. Reliability in storage preserves critical configuration data and event logs in low-power standby or power-off states, which has concrete value for sealed medical instrumentation, aerospace modules, and infrastructure monitoring equipment installed for decades-long service periods. In practical deployments, even after repeated cycling and years of shelf life, stored calibration constants and unique device identifiers have been observed to remain unaltered, validating the engineering choices in process and material selection.
Balancing operational endurance with data reliability, the 24LC16B-I/ST targets the intersection of high duty-cycle memory usage and uncompromised retention. This approach not only extends system lifespans but also lowers maintenance overhead and total cost of ownership in asset-heavy environments. For designers, the device’s capabilities unlock greater flexibility in distributed intelligence architectures, allowing the persistent storage of mission-critical parameters and logs directly at the edge of the network or within embedded controllers. The implementation experiences underscore the strategic value of integrating memory components with robust electrical and retention properties, especially in applications where maintenance access is impractical or where data continuity underpins system safety and compliance.
Functional Operation and Bus Protocol for the 24LC16B-I/ST
The 24LC16B-I/ST integrates seamlessly into embedded systems by leveraging a standard two-wire, I2C-compatible serial interface. Operating strictly as an I2C slave, its functional protocol begins with the receipt of a fixed 7-bit control code (‘1010’) combined with three block-select bits, enabling full device selection within applications where multiple EEPROMs coexist on the same bus. This device-centric addressing protocol optimizes resource management in complex architectures and simplifies code routines for modern microcontroller-based designs.
The bus protocol orchestrates transaction integrity through disciplined state transitions. Communication initializes only during bus idle states, a safeguard that eliminates timing ambiguity and upholds electromagnetic compatibility standards by minimizing bus contention. Each transaction is bracketed by explicit start and stop conditions, serving as unambiguous flags that frame data packets and differentiate consecutive operations—a foundational mechanism for synchronous serial bus design. Acknowledge cycles follow every byte transfer, maintaining synchronized flow and facilitating error detection in real time. This immediate feedback is critical in embedded systems with stringent reliability requirements, as it allows upper-layer software to react to anomalies, implement retries, or alert supervisory routines without introducing latency.
Internal safeguards further elevate protocol robustness. The device enforces data stability on the bus during SCL high periods; this measure mitigates the risk of race conditions or spurious writes—a frequent pitfall in noisy industrial or automotive environments. Such temporal filtering, based on the I2C's well-established hold and setup times, prevents state corruption by blocking data acceptance outside valid windows. The architecture’s commitment to protocol discipline ensures that only deliberate, master-initiated writes proceed, effectively eliminating inadvertent overwrites—a key requirement in safety-critical logging or configuration storage.
Application scenarios range from persistent configuration storage to dynamic logging. For instance, in multi-sensor data acquisition modules, the deterministic addressing scheme allows each EEPROM to serve a unique data block, streamlining firmware logic and enhancing parallel operation throughput. In firmware upgrades or parameter retention, robust acknowledge handling combined with defined start-stop signaling provides unambiguous state demarcation, minimizing risk during transactional operations and enabling secure rollback or validation flows. The device’s protocol-level mechanisms dovetail with established software design patterns, facilitating compact driver implementations and supporting frameworks for redundancy or error recovery.
Analyzing the interplay between bus protocol and device operations reveals an important nuance: the deliberate restriction on operations to idle bus periods and the enforcement of stability requirements substantively increase system immunity to communication faults, especially under conditions of bus congestion or transient noise. This combination not only preserves data integrity but also extends the operating envelope of the 24LC16B-I/ST in modular, scalable embedded architectures. A methodical approach to integrating this device—anchored in disciplined protocol management—directly translates to enhanced reliability and maintainability, particularly in applications demanding long-term data retention and frequent access cycles.
Pinout and Interface Key Points for 24LC16B-I/ST
Pinout and interface specifics for the 24LC16B-I/ST EEPROM reveal a compact, integration-centric design, precisely tailored for space-limited embedded systems. The absence of any electrical function for address pins (A0, A1, A2) reflects a multiplexed internal addressing approach, eliminating external device selection. Engineers have the latitude to leave these pins floating or connect them to ground or power rails, a flexibility that streamlines PCB trace planning, especially in multi-layer stacks or high-density layouts. This removal of address complexity eradicates potential bus conflicts in single-device modules and mitigates routing congestion, favoring layouts with minimal via count and shortened critical path lengths.
The data exchange mechanism centers on two fundamental lines: SDA and SCL. The SDA line, serving as a bidirectional channel for serial data, is inherently open-drain—mandating an external pull-up resistor to maintain logical high states. Optimal resistor selection is pivotal; applying 10kΩ at 100kHz ensures proper rise times without excessive current draw, whereas high-speed operation at 400kHz or 1MHz requires lowering resistance to 2kΩ to counteract capacitive loading and maintain timing fidelity. Empirical observation confirms that improper sizing can prompt signal integrity degradation or intermittent read/write failures, so matching resistor values to layout capacitance and trace length is critical in proximity-sensitive deployments. SCL, the clock input, underpins synchronous data transfer and should be routed with attention to crosstalk minimization, taking particular care in designs where simultaneous high-speed peripherals share adjacent traces.
The WP (Write Protect) pin adds a hardware-based memory safeguard, acting as a binary switch for write operations. Logic high on WP (connected to Vcc) imposes a physical barrier against unintended data alteration, an essential feature in certification-driven deployments where non-volatile data integrity is paramount—such as configuration storage or calibration tables. Conversely, tying WP to Vss grants unrestricted access for updates. Field experience suggests routing flexibility around WP expands maintenance options, permitting firmware or service pins to toggle write states without board modification; leveraging this can reduce recall or repair overhead in upgradable products.
The streamlined pinout and elegant interface choices of the 24LC16B-I/ST exemplify an architecture optimized for production efficiency, reliability, and error-proof operation. By concentrating on minimal, well-defined signals and embedding fail-safe provisions directly into hardware, this device meets the nuanced demands of both prototyping and high-volume manufacturing, supporting deterministic behavior under varied operational conditions. The resultant system-level robustness makes this EEPROM variant a staple in applications where board real estate, maintenance simplicity, and long-term reliability are prioritized.
Write and Read Mechanisms in the 24LC16B-I/ST EEPROM
The 24LC16B-I/ST EEPROM achieves efficient data access through well-defined write and read mechanisms underpinned by robust hardware features. Byte write operations engage granular control—each transaction starts by presenting an 8-bit memory address, followed by the target data byte. The chip automatically issues an acknowledge pulse to confirm data receipt and manages the internal write cycle transparently. To ensure system responsiveness, the timing constraints of the internal write cycle must be respected, preventing premature access attempts that could result in data corruption.
Page write mode extends throughput, allowing up to 16 bytes per operation, but mandates strict address management. Data transferred beyond the current 16-byte boundary wraps within the same physical page, overwriting existing values. Optimized drivers segment write requests to stay within page limits, leveraging software buffers to coalesce updates and reduce bus utilization. Deep familiarity with page alignment minimizes latency spikes and contentions, especially in time-sensitive applications.
Write protection is realized via a dedicated pin that, when asserted, secures the entire memory array against modification. This mechanism is crucial for ensuring data integrity in safety-critical deployments, such as configuration storage for industrial controllers or secure key retention. Activation often occurs during system provisioning, and correct sequencing avoids inadvertent lockout or undefined states. Combining hardware protection with layered firmware controls reinforces fault tolerance, allowing selective enforcement based on operational circumstances.
Read operations offer versatility through three access modes. Current address read returns the byte at the EEPROM’s internal pointer without explicit address communication, streamlining sequential access patterns. Random read unlocks arbitrary data retrieval, employing a two-stage addressing technique—first transmitting the target address, then performing the read. Sequential reads automate pointer advancement, reducing command overhead during block transfers. High-performance designs exploit this address auto-incrementation for boot loaders or continuous configuration sweeps, noticeably improving throughput.
Electrical noise resilience is integral to the I²C interface. Schmitt trigger inputs on both SCL and SDA lines provide hysteresis, stabilizing signal transitions in noisy conditions. Internal filters suppress spurious spikes, ensuring data integrity during operation in environments with considerable electromagnetic interference, such as heavy machinery or field-deployed sensor networks. Deployments in such contexts validate the significance of these features, as reduced error rates directly correlate with reliable logic-level detection and system longevity.
A critical insight is that the real-world performance and error immunity of the 24LC16B-I/ST are not solely dictated by protocol compliance or nominal timing. Optimal execution depends on a synergy between firmware awareness—for precise write buffering and page alignment—and hardware configuration—particularly judicious use of protection mechanisms and careful consideration of electrical design constraints. Engineering workflows that internalize these interdependencies achieve both reliability and efficiency, reducing debug cycles and extending product lifecycles in demanding applications.
Package Options and Mechanical Considerations for 24LC16B-I/ST
The 24LC16B-I/ST demonstrates pronounced mechanical flexibility through its diverse packaging options, supporting seamless integration across a spectrum of board designs and deployment scenarios. Key package types include 8-lead TSSOP, DFN, MSOP, PDIP, SOIC, TDFN, UDFN, and space-saving 5-lead SOT-23 or CSP formats. These variants align with prevalent surface-mount and through-hole assembly standards, addressing the multifaceted constraints of modern embedded systems.
Each package type corresponds to rigorously defined PCB land patterns, which are essential for consistent reflow soldering and rework. Surface-mount packages such as TSSOP, MSOP, and DFN optimize for automated placement, benefiting from high pitch accuracy and low-profile dimensions. This supports dense memory population on multilayer PCBs and enables minimal enclosure heights—a critical trait in portable consumer devices and industrial control modules. For design iterations or mature platforms, the 8-lead PDIP offers robust mechanical handling and straightforward socket compatibility, streamlining prototyping, manual rework, and long-term maintainability.
Selecting between package options pivots on engineering trade-offs. DFN, TDFN, and UDFN provide enhanced thermal performance due to expanded exposed pads, while maintaining a compact footprint for IoT or medical miniaturized designs. SOT-23 and CSP are optimal when PCB real estate is at a premium and pick-and-place throughput is prioritized. In contrast, SOIC and PDIP afford mechanical stability for harsh environments or designs with less pressure to minimize dimensions, supporting ease of inspection and test probe contact.
Practical experience underscores the impact of stencil design and placement accuracy on reliable solder joints. For example, the fine leads of TSSOP require precision paste deposition to mitigate shorts; DFN or TDFN demand careful management of voids beneath exposed pads to ensure thermal and mechanical integrity. Tweaking reflow profiles and pad sizes based on empirical yield analyses often drives incremental robustness in high-volume runs. Moreover, transition from one package family to another—such as from SOIC in development to DFN in production—can streamline productization by decoupling form factor optimization from functional validation.
Ultimately, packaging decisions for 24LC16B-I/ST balance electrical performance, assembly throughput, environmental resilience, and lifetime cost. Leveraging standardized package options enables supply chain flexibility and simplifies regulatory qualification, while practiced adjustment of land pattern and soldering process parameters delivers consistent yields across diverse deployment contexts. This holistic approach to mechanical integration not only protects signal integrity and device reliability but also accelerates system-level innovation by de-risking physical layout constraints.
Application Scenarios and Design Considerations for 24LC16B-I/ST
Engineers leverage the 24LC16B-I/ST EEPROM in architectures requiring persistent, reconfigurable data retention within constrained form factors. At its core, this serial EEPROM combines robust non-volatile storage with an I²C interface, facilitating integration into a wide spectrum of embedded applications. Industrial controllers benefit from the device’s dependable parameter storage, ensuring system states and configuration data remain intact across power cycles and field updates. Automotive environments, with their stringent reliability and temperature specifications, exploit the chip’s extended operating range and endurance, using it to preserve calibration data and runtime variables within ECUs. In consumer and medical designs, the low active current and high endurance cycle ratings extend battery life and support frequent write operations, especially valuable in data-logging and user preference retention.
Access control panels and utility metering systems require tamper-resistant designs. The 24LC16B-I/ST’s hardware write protection input provides physical security at the hardware level, blocking all program and erase actions when asserted—critical for audit trails and configuration integrity. Multi-package options further support PCB-level design flexibility, enabling tight layouts and ease of assembly across projects with varying mechanical constraints.
System architecture must address several integration parameters. Supply voltage must reliably remain above 2.5V to avoid erroneous writes or readbacks, commonly mitigated by supervisory circuitry or brown-out detection logic. The I²C bus characteristics demand careful pull-up resistor selection; values too high degrade signal edges, while values too low can burden the bus and escalate power draw. In high-speed or noisy environments, tailored pull-up sizing maintains data integrity, and software strategies like clock stretching accommodate marginal buses.
A practical consideration lies in the device’s 16Kbit organization—specifically, its page-write mechanism. Each memory page comprises 16 bytes; write operations crossing page boundaries wrap within the same physical page, potentially overwriting unintended data. Reliable firmware design explicitly segments multi-byte writes by page addressing, ensuring atomic updates and minimizing data corruption risk during power anomalies. Robust application-layer routines will validate page alignment before initiating bulk writes, leveraging retry mechanisms and CRC checks where critical data is involved.
The hardware write-protect feature, while valuable for tamper resistance, should be implemented with well-documented PCB routing and accessible test points in development builds, allowing for streamlined reprogramming or debugging cycles without restricting production security.
In integrating the 24LC16B-I/ST, subtle but significant trade-offs manifest between bus throughput, power budget, memory partitioning, and system-level resilience. Recognizing that EEPROM endurance far exceeds application needs in most update-on-boot or configuration-only use cases, flash or SRAM alternatives may only become attractive at scale or under extreme cost constraints. The component’s balance of flexibility, protection, and ease of deployment supports enduring design patterns, such as decentralized firmware updates and distributed sensor node calibration—ultimately advancing the reliability and adaptability of embedded solutions.
Potential Equivalent/Replacement Models for 24LC16B-I/ST
Identifying functionally compatible EEPROM substitutes for the 24LC16B-I/ST requires focusing on several technical axes: memory organization, bus protocol adherence, electrical parameters, and environmental ruggedness. Within Microchip's lineup, both 24AA16 and 24FC16 present themselves as structurally analogous options, featuring identical 16Kbit memory architecture and full support for I²C communication standards. Where selection leans on operational voltage constraints, the 24AA16 and 24FC16 accommodate applications needing stable read/write cycles at lowered system voltages—down to 1.7V—without compromising data retention or speed consistency.
Several engineering subtleties emerge when applying such replacements. Pin mapping and package topology must be overlaid rigorously onto existing PCB layouts, as device footprints and lead configurations may subtly diverge, especially across different package codes (SOIC, TSSOP, etc.). Discrepancies in write cycle endurance, temperature rating, and ESD tolerances surface under more demanding operational categories, such as industrial or automotive deployments. For robust design assurance, comparing specific datasheet parameters—such as tSU, tHD, and Vcc tolerances—preempts signal integrity or lifetime issues in multi-vendor supply pipelines.
Deployment experience continually reveals the importance of integrating second-source alternatives for EEPROM. Establishing pin-compatible, protocol-consistent parts in Bills of Materials shields manufacturing from line-down scenarios arising in constrained supply chains. In many production test profiles, the 24AA16 and 24FC16 transition seamlessly into sockets originally validated for the 24LC16B-I/ST, streamlining firmware validation and minimizing hardware revision cycles. Notably, the slightly enhanced voltage flexibility of the recommended alternatives enables migration into battery-sensitive or voltage-variable consumer systems previously inhibited by stricter Vcc requirements.
A broader viewpoint indicates that actively harmonizing replacement selection with both system electrical boundaries and environmental stress factors builds not only supply chain resilience but also future-proofs product lines against obsolescence. Strategic choice in EEPROM substitutes amplifies design modularity and testing agility, ultimately reinforcing long-term field reliability and cross-platform compatibility.
Conclusion
The Microchip 24LC16B-I/ST stands as a robust solution for non-volatile serial memory within I2C-centric embedded systems, offering core functionalities that address persistent data storage challenges in contemporary electronics. At the circuit level, the EEPROM leverages a CMOS process architecture, enabling high cell density and efficient Silicon utilization while minimizing active and standby current. Data retention of over 200 years and endurance ratings upwards of one million write cycles are achieved through optimized tunneling oxide and error correction protocols integrated at the silicon layer. These characteristics support scenarios demanding frequent updates to small data sets, such as configuration parameters, event logs, or calibration values, without risking data corruption from cycling or shock events.
Reliability features embedded within the 24LC16B-I/ST serve as key differentiators. On-chip hardware write protection, inclusive of software-selectable memory block locking, prevents inadvertent overwrites—a crucial factor when deploying firmware updates or when safeguarding critical boot parameters. The internal voltage detection circuitry preserves data integrity during brownout or power fluctuation events by inhibiting write operations under unsafe supply conditions. In constrained board designs or harsh field environments, this translates directly to reduced failure risk and simplified system-level protection requirements.
From an integration perspective, the device’s I2C slave interface with support for multiple device address options simplifies expansion across shared buses, promoting modularity in distributed control architectures. Package variability further enhances deployment flexibility, with SOIC, TSSOP, and PDIP forms accommodating both high-density production and prototyping on standard breadboards or sockets. Noteworthy in practical usage, the EEPROM’s low pin count and wide voltage tolerance allow seamless adoption in space-sensitive or battery-powered designs.
Application-wise, the 24LC16B-I/ST fulfills key roles in industrial controllers, automotive infotainment, and consumer appliances, efficiently storing lookup tables, user profiles, or diagnostics without imposing complex power sequencing or memory management demands. Its transparent I2C protocol and well-documented timing simplify migration from earlier generations or competitive devices, facilitating BOM rationalization and streamlining design qualification phases.
A direct insight emerges when examining the intersection of endurance, data retention, and fail-safety: integrating the 24LC16B-I/ST early in the hardware design cycle empowers engineers to adopt software-based redundancy and logging strategies instead of resorting to over-specced flash or battery-backed SRAM alternatives. The cost-to-value ratio and predictable longevity within extended temperature ranges make it a pragmatic choice in designs anticipated for long deployment life cycles or where field updates must be supported with minimum risk.
In sum, selection of the 24LC16B-I/ST aligns with both technical best practices and component longevity targets within modern embedded applications, effectively balancing reliability, integration simplicity, and supply assurance.
