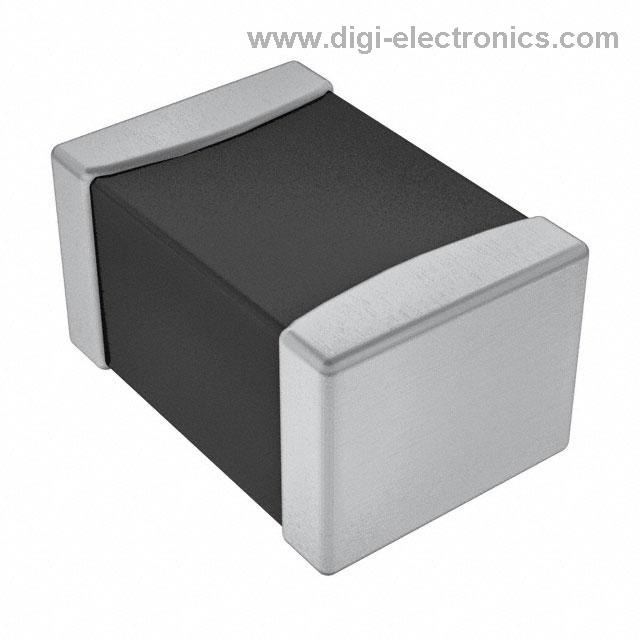

Product overview of the BLM21BD222SN1L Murata ferrite bead
The BLM21BD222SN1L ferrite bead from Murata Electronics is engineered for effective high-frequency noise attenuation within compact PCB layouts. Leveraging the 0805 (2012 metric) SMD standard, it occupies minimal footprint while delivering substantial impedance at frequencies typically associated with EMI issues, such as those emanating from switching power supplies, RF circuits, or high-speed digital interfaces. This component’s multilayer structure applies advanced ceramic processing technology, resulting in consistent electrical performance and tight tolerance control across varied operating conditions.
At the mechanistic level, the BLM21BD222SN1L utilizes a proprietary ferrite composition with a high permeability index, optimized for sharp attenuation curves in the frequency spectrum above 100 MHz. Its nominal impedance of 2.2 kΩ at 100 MHz, measured under specified test conditions, ensures robust filtering without significant voltage loss or signal distortion. This balance between impedance and DC resistance (~500 mΩ max) is critical in preventing unwanted voltage drops or excessive heating during continuous operation, particularly in densely populated or thermally sensitive designs.
Integration into circuit topologies typically occurs at entry points for power or signal traces, where the bead acts as a passive choke, suppressing parasitic oscillations and cross-talk. Engineers frequently deploy this device in conjunction with bypass capacitors to establish low-pass filtering networks, ensuring compliance with radiated emissions standards specified for consumer, industrial, and medical platforms. Past deployment in mixed-signal boards has demonstrated its reliability within temperature ranges specified for harsh environments, offering stable EMI mitigation without shift in impedance under varying loads.
Selection of the BLM21BD222SN1L facilitates streamlined BOM management due to Murata’s global logistics support and predictable product life cycles. The consistency in batch-to-batch performance also simplifies design validation cycles, minimizing the risk of variance-induced system failures during regulatory testing. As system complexity and board density continue to increase, applying targeted ferrite beads such as this model enables scalable noise mitigation strategies. One unique insight is the recognition that careful examination of the placement and orientation significantly improves suppression effectiveness, particularly in layouts where signal integrity is paramount, such as analog front-ends and high-speed interface modules.
The overall value proposition centers on the convergence of miniature form factor, high-frequency impedance profile, and Murata’s long-standing reliability baseline. When integrating into broad-spectrum EMI suppression initiatives, the BLM21BD222SN1L offers a robust starting point, supporting design architectures from low-power wearable devices to mission-critical instrumentation, where quantifiable noise reduction translates directly to enhanced operational stability and compliance confidence.
Electrical and physical characteristics of the BLM21BD222SN1L
The BLM21BD222SN1L ferrite bead operates on the principle of frequency-dependent impedance, using a proprietary ferrite ceramic composition that ensures effective suppression of high-frequency noise. Its nominal impedance, measured at 2.25 kΩ at 100 MHz, arises from a combination of resistive and reactive elements, with the resistive component dominating at target frequencies. This characteristic enables precise attenuation of electromagnetic interference (EMI) without significantly affecting baseband stability, supporting the performance requirements of sensitive analog or high-speed digital circuits.
Core electrical parameters are established to balance noise suppression and system efficiency. The continuous current rating of 250 mA caters to most signal and low-power supply rails, while the 600 mΩ maximum DC resistance limits voltage drop. This balance is particularly pertinent when integrating the component in circuits with tight IR drop budgets, such as mixed-signal front ends or RF receiver stages, where excessive parasitic resistance would degrade signal integrity. Ferrite beads of this class are often employed as strategic barriers against differential-mode noise or for power rail filtering in multilayer board designs, streamlining electromagnetic compliance in compact PCB layouts.
Physical design conforms to the 0805 (2012 metric) SMD footprint, supporting dense, automated assembly. The unit mass of 0.014 g aids the mechanical stability required during high-speed pick-and-place operations, especially when processed in volume via tape-and-reel packaging formats. The non-polarized terminal structure simplifies orientation during assembly and minimizes placement errors, a key advantage when designing for manufacturability in high-throughput environments.
Practical deployment reveals specific considerations. In power distribution networks, placement near active devices can markedly reduce conducted and radiated emissions, particularly around clock oscillator nodes or wireless transceivers. Proper routing and proximity to noise sources are crucial; slight variations in bead placement can cause significant differences in EMI containment. Selecting BLM21BD222SN1L in these scenarios allows tuning the trade-off between noise rejection and voltage regulation with greater granularity than broad-spectrum capacitive filters. Moreover, empirical tuning—adjusting bead values in situ—can refine circuit response across production batches.
An engineering perspective underscores the importance of precise impedance profiles over generic filtering. Using components like the BLM21BD222SN1L entails recognizing not just the nominal ratings but how dynamic circuit conditions (temperature shifts, board parasitics, signal rise time) affect real-world effectiveness. Proactive design integrates simulation-backed placement and layer stackup selection, leveraging the bead’s properties within a holistic EMI mitigation strategy. This approach transforms passive beads from simple discrete elements to active participants in electromagnetic compatibility engineering, elevating overall system robustness.
Suitable applications for the BLM21BD222SN1L
The BLM21BD222SN1L ferrite bead by Murata is optimized for suppression of high-frequency conducted noise in compact electronic systems. Its core mechanism centers on high impedance at frequencies above 100 MHz, leveraging manganese-zinc or nickel-zinc ferrite materials configured to maximize loss within target frequency bands. This sharply attenuates noise energy without introducing significant DC resistance, preserving signal and power integrity in the desired frequency range. Such a component is typically surface-mounted, facilitating straightforward integration onto dense PCBs and supporting automated manufacturing flows.
Within consumer electronics, this ferrite bead is frequently employed to filter signal and power lines in devices such as set-top boxes, smart appliances, and high-speed audio/visual equipment. Its deployment prevents the propagation of clock harmonics or other digital switching artifacts, thereby containing electromagnetic interference and meeting regulatory limits without extensive shielded enclosures. In communication hardware and information processing systems, its targeted impedance helps isolate sensitive analog or RF sections from digital noise, promoting robust system behavior at both the module and system levels.
Industrial automation platforms—where subsystems such as sensors, robotic actuators, and data acquisition interfaces operate in noise-rich environments—benefit directly from the BLM21BD222SN1L's compact form factor and predictable filtering response. In factory or process instrumentation, it enables precise measurement and command integrity by suppressing transients induced by adjacent power electronics, relay coil switching, or variable frequency drives. Integration is generally seamless, as the bead's power rating and temperature tolerance support typical control and monitoring applications without necessitating significant layout changes.
For medical devices falling within GHTF Class A, B, and select C categories, the bead's usage aligns with the sector's strict EMC requirements. Filtering signal lines in patient monitors, imaging peripherals, or non-critical support electronics, the BLM21BD222SN1L helps ensure functional reliability and reduces the risk of spurious alarms caused by conducted interference. This contributes to patient safety while maintaining regulatory compliance, though its use remains explicitly restricted from configurations where bead failure could impact life-critical operation.
Emerging applications in renewable energy and electrical storage systems further leverage this bead's characteristics. Power conversion, battery management, and grid-coupled inverters depend on effective noise suppression on data and low-voltage power lines to guarantee predictable communication, safe control, and low emission footprints. Practical experience shows that selecting the correct impedance profile for the bead is essential: an under-spec’d component may allow noise leakage, while excessive filtering could degrade signal rise times or introduce communication errors. A balanced approach, tuning the bead's selection in parallel with PCB trace design and source impedance, consistently yields optimal results.
The BLM21BD222SN1L is, by design, unsuitable for safety-critical functions found in aerospace platforms, high-reliability industrial control, or primary life-support systems. The lack of explicit AEC-Q200 or analogous certifications, and inherent limitations in ferrite bead thermal and electrical stability under extreme duress, dictate this exclusion. From a system engineering perspective, this highlights the importance of fully matching the EMC strategy not only to the emission profile but also to relevant compliance and reliability envelopes.
A key insight is that effective use of ferrite beads requires careful system-level planning rather than after-the-fact emission mitigation. Integrating the BLM21BD222SN1L early in the design cycle—anchored by controlled impedance layouts, comprehensive simulation of harmonic currents, and robust design margins—delivers maximal value. This prevents late-stage noise issues and ensures that product development cycles remain predictable. Consistent results are achieved through iterative prototype validation, correlating lab measurements with simulated performance while allowing for layout or component value adjustments as operating conditions dictate, completing a rigorous, application-aware noise mitigation strategy.
Mounting, handling, and packaging guidelines for the BLM21BD222SN1L
Mounting approaches for the BLM21BD222SN1L ferrite bead demand precise compliance with thermal and mechanical stipulations to safeguard signal integrity and prevent premature device failure. The component’s compatibility with both reflow and flow soldering technologies underscores the necessity of adherence to controlled temperature ramps, soak profiles, and peak temperature limits. Maintaining a restricted thermal gradient throughout the soldering cycle significantly reduces stress propagation within the ceramic body, mitigating risks of fissuring and microfracture. Optimally, pre-heating zones on reflow ovens should align with Murata’s profiles, typically limiting ∆T between zones and ensuring uniform temperature distribution across densely populated boards.
The 8 mm-wide plastic tape packaging supports automated pick-and-place operations. Stable tape dimensions and package integrity ensure feeder reliability and minimize misplacement rates, a critical factor for high-throughput SMT lines. In practice, erratic feeder tension or excessive vacuum forces may cause fine displacement of ferrite beads, underscoring the benefit of low-profile handling tools and regular calibration of assembly robotics. Deploying vision-assisted placement routines further improves positional accuracy, especially for high-frequency signal conditioning where even minor offset may impact impedance characteristics.
PCB layout decisions directly impact the functional robustness of the ferrite bead. Murata’s recommended land pattern dimensions are engineered to maximize wettable surface area, balancing solder adhesion and thermal dissipation. Integrating solder mask-defined pads prevents bridging while lowering susceptibility to cold joints during high-speed assembly. Strategic orientation of the device, particularly parallel to board depanelization directions, counteracts flexural stress and lowers the likelihood of fracture initiation along the bead’s weakest axis. Locating the bead downstream from heat sources, mechanical fasteners, or edge-mount connectors shields it from vibration-induced fatigue and thermal cycling hazards. In real-world deployments, placing beads centrally within a PCB zone dedicated to EMI management insulates sensitive circuits against both direct and radiated interference.
Post-soldering protocols are equally critical. Substrate deflection, notably during stencil removal, depaneling, or fixture testing, is a chief culprit of post-reflow cracking. Leveraging stiffer PCB materials and optimizing fixture design for uniform support during handling significantly curtail these risks. Cleaning processes require careful validation: excessive ultrasonic energy or inappropriate solvent chemistry may not only erode solder fillets but also induce chip delamination or ferrite granule dislodgement. Selecting cleaning frequencies under 28 kHz and limiting immersion times to manufacturer-tested thresholds preserves both device and assembly yield. Batch testing with sacrificial sections of populated boards empirically refines these parameters, reducing long-term reliability issues often traced back to inadequate cleaning regimens.
A layered approach to deployment, from thermal management and mechanical resilience to post-assembly care, establishes an engineering foundation enabling the BLM21BD222SN1L to function optimally within demanding environments. Prioritizing these interconnected variables elevates the reliability of high-density electronic systems, demonstrating that nuanced process control and design-for-manufacturability principles are integral to leveraging ferrite bead performance in advanced circuitry.
Environmental, electrical, and operational precautions for the BLM21BD222SN1L
Safe and robust integration of the BLM21BD222SN1L ferrite bead depends on strict fidelity to its absolute ratings and thoughtful adaptation to both electrical and environmental variables. The initial layer of consideration centers on its rated temperature, voltage, and current. Surpassing these thresholds initiates failure modes that range from elevated core losses and insulation degradation to outright thermal runaway or melting of electrode pathways. Notably, transient phenomena—such as inrush, surge, or repetitive pulse currents—can induce localized heating well beyond steady-state predictions; even sub-millisecond excursions can accelerate material fatigue or modify the bead’s impedance profile. Professional practice involves the implementation of simulation and empirical stress testing under anticipated and worst-case load conditions, ensuring that margin is maintained above the manufacturer's specified limits.
Secondary to electrical stress, the environmental context has nontrivial impacts on both the ferrite core and the integrity of the soldered interconnections. Exposure to corrosive atmospheres—including, but not limited to, environments rich in sulfur or halogen constituents—poses risks of migration, corrosive film formation, and eventual contact loss. Situations involving aggressive manufacturing residues or fluxes require an upstream review of cleaning and coating protocols. In humid or condensation-prone ecosystems, rapid thermal shifts can induce microcracking or delamination, undermining reliability. Effective designs integrate not only hermetic sealing when feasible, but also judicious selection and qualification of underfills or resin coatings. Here, compatibility testing between encapsulants and the ferrite material itself is crucial, as inadvertent reactions may manifest as solder joint embrittlement or chemical-induced corrosion beneath the bead, which often evades routine inspection.
Electrical designers benefit from deep application-level evaluation prior to final design freeze. Real-world EMC performance can diverge from catalog values due to layout parasitics, lead inductance, or proximity effects, necessitating validation in situ through board-level test vehicles and iterative tuning. For high-density assemblies or in automotive and industrial domains, there is merit in analyzing bead behavior under power-cycling and vibration, with special attention to mechanical anchoring and the mechanical resonance properties of the bead and neighboring passive elements. Regular review of technical updates from the manufacturer, such as material revisions or enhanced product variants, ensures that longevity and compliance targets remain aligned with the latest field data.
An advanced perspective considers the interdependency between electrical and environmental domains. For example, repeated duty cycles at near-maximum current in a high-humidity setting may not immediately breach rated limits, yet their compound effect can precipitate latent degradation that escapes detection until late in product life. Proactive derating and contextual screening protocols are therefore not only prudent but essential for critical systems. Additionally, collaborative dialogue with materials and reliability engineering teams in the early design phase mitigates downstream risk, embedding resilience into the assembly from the outset. This multidisciplinary strategy, informed by practical lessons from cross-industry deployments, positions the BLM21BD222SN1L for maximized functional yield and field longevity, even in challenging operational landscapes.
Potential equivalent/replacement models for the BLM21BD222SN1L
Selecting functional replacements for the BLM21BD222SN1L ferrite bead requires a systematic evaluation of electrical and physical parameters within the context of application-specific EMC objectives. The BLM21 family from Murata, fabricated in 0805 (2012 metric) packages, encompasses a spectrum of impedance ratings and current capacities while maintaining uniformity in core dimensions, thereby streamlining PCB layout adjustments.
Central to the substitution process is the precise mapping of the original bead’s performance envelope against the target signal path’s noise environment. The BLM21BD222SN1L offers a nominal impedance of 2.2 kΩ at 100 MHz, a value optimized for mid-frequency noise attenuation. Application scenarios with similar EMI concerns may accept alternatives such as the BLM21BD272SN1L, which presents a higher 2.7 kΩ impedance at the same frequency, offering enhanced suppression but with a modest increase in insertion loss and DC resistance. When substituting, it is imperative to assess the allowable voltage drop derived from DC resistance, as excessive loss may destabilize sensitive analog or power delivery nets.
Further, current rating delineates safe operating boundaries. Variants within the BLM21 series differ subtly in maximum rated current—exceeding those limits may cause thermal drift or bead saturation, negating the filtering intent. Evaluating real-world current profiles and accommodating transient inrush conditions ensures that the chosen alternative maintains both component longevity and reliability.
Engineers often face the challenge of reconciling wideband suppression with minimal signal degradation. Ferrite beads with higher impedance can inadvertently attenuate desirable transitions in high-speed digital traces, highlighting the importance of correlating simulation data with empirical PCB-level testing. Test setups should replicate anticipated noise sources and load conditions, as parasitic effects—such as layout-induced inductance or proximity coupling—may modulate the nominal bead performance.
Another critical consideration in procurement is multi-sourcing for yield resilience and cost optimization. Although Murata’s BLM21 series is recognized for consistency, cross-referencing with equivalent families from reputable manufacturers such as TDK or Taiyo Yuden is a prudent risk management measure, provided electrical and physical compatibility is maintained. Datasheets must be meticulously compared, focusing on impedance over frequency curves, maximum allowable current, voltage ratings, and aging characteristics under thermal cycling.
In summary, thoughtful replacement of the BLM21BD222SN1L leverages a structured methodology: matching impedance to the dominant noise spectra, verifying current handling, optimizing for voltage drop, and qualifying performance through context-aware bench testing. Subtle shifts in component parameters can have system-level impacts—success in equivalent part selection arises not just from datasheet comparisons but from a nuanced understanding of system integration and long-term reliability.
Conclusion
The Murata BLM21BD222SN1L ferrite bead offers a comprehensive EMI suppression approach, directly addressing common high-frequency noise challenges encountered at the PCB level. Its core mechanism relies on frequency-dependent impedance characteristics, efficiently impeding high-frequency noise currents while maintaining low DC resistance—key for preserving system signal integrity. The device construction utilizes a multilayer ferrite structure, enabling consistent impedance performance across its rated 2.2 kΩ at 100 MHz, which aligns with the noise profiles generated by modern high-speed digital and mixed-signal circuits.
This ferrite bead’s compact 0805 package supports streamlined SMT assembly, optimizing PCB real estate and facilitating high-density placement in consumer devices such as smartphones, laptops, and network modules. It delivers broad compatibility in industrial controllers and instrumentation, where EMI compliance is crucial yet board space and thermal management cannot be compromised. In medical equipment, the BLM21BD222SN1L’s predictable electrical response under varying load and temperature conditions meets the stringent noise and reliability criteria mandated by regulatory standards.
Effective usage demands strict conformity to the component’s handling criteria, particularly during reflow, to prevent micro-crack propagation in the ceramic matrix, which could imperil EMI suppression efficacy. Real-world EMC debugging phases have shown that system-level noise issues are rarely solved by passive ferrites alone; instead, optimal results depend on strategic placement—close to noise sources or sensitive nodes—and, in some cases, parallel deployment with tailored values from the broader BLM21 family. Engineers frequently integrate this bead into power rails supplying high-speed subsystems, leveraging its high rated current and minimal voltage drop to balance noise suppression and power delivery.
A notable consideration is the importance of simulation and bench validation. Experience demonstrates that while datasheet impedance values provide a baseline, circuit parasitics can shift resonance and reduce effectiveness. Iterative testing backed by vector network analyzers enables fine-tuning of bead selection and placement. Furthermore, leveraging the bead’s defined environmental tolerances ensures long-term stability in both temperature-cycled industrial equipment and thermally dynamic consumer devices.
The depth of the BLM21BD222SN1L’s design flexibility extends into cost and logistics. Its mainstream packaging and supply chain stability streamline procurement processes—an often overlooked but decisive factor during multi-platform rollouts. This combined with the BLM21 product family's portfolio (offering alternative impedance and current ratings) establishes a scalable, application-driven EMI management strategy, efficiently transitioning from prototype to mass production environments. Ultimately, precise engineering discipline in component specification, layout, and validation underpins the ferrite bead’s core benefit: consistent, repeatable EMI control in today’s increasingly congested electronic ecosystems.
