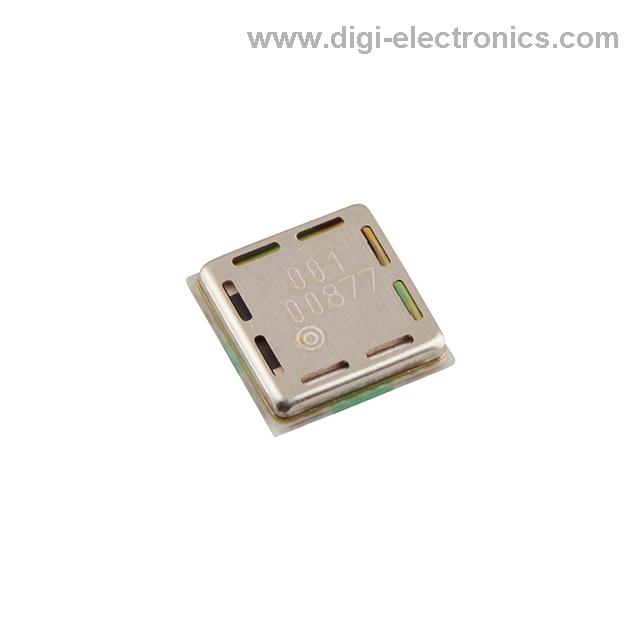

Product overview: Murata MA40H1S-R ultrasonic transducer
The Murata MA40H1S-R ultrasonic transducer is a compact, air-coupled piezoelectric sensor operating at 40 kHz, architected for precision distance detection within constrained embedded environments. At its foundation, the MA40H1S-R leverages the direct and converse piezoelectric effects, efficiently converting electrical excitation into a focused ultrasonic pressure wave and, conversely, transforming reflected acoustic signals back into electrical form. This bidirectional transduction capacity positions the device as a key enabler for real-time, non-contact measurement frameworks.
Mechanically, the transducer integrates a rugged housing that ensures consistent acoustic coupling while minimizing susceptibility to environmental perturbations such as dust, humidity, or temperature shifts within typical consumer settings. The resonance-tuned diaphragm and optimized backing structure maximize energy conversion efficiency, yielding high signal-to-noise ratios that translate directly into extended detection ranges and enhanced sensitivity to weak echoes. Notably, its precise 40 kHz carrier frequency facilitates selective filtering, suppressing ambient noise and electromagnetic interference prevalent in densely integrated electronic assemblies.
System-level integration benefits from the MA40H1S-R’s low-profile package and moderate drive requirements, which align with the I/O characteristics of standard microcontroller-based front-end circuits. Pulse-echo timing schemes are directly supported by the transducer’s sharp transmission envelope and narrow beam angle, allowing for spatially resolved object detection, collision avoidance, and fluid level monitoring in tanks or dispensing modules. Circuit designers often exploit its stable acoustic parameters to implement time-of-flight algorithms with sub-centimeter accuracy, mitigating the need for complex calibration routines.
Applied experience underscores the advantage of pairing the MA40H1S-R with matched preamplifiers and carefully timed excitation signals to extract maximum performance, particularly in cluttered or absorptive media. Proper PCB layout, ground isolation, and synchronized triggering architectures further optimize detection fidelity, reducing systematic errors in threshold-based target discrimination. At a solution architecture level, the transducer’s reliability and reproducibility have led to its selection for scalable multi-node sensor arrays, as seen in robotic localization and automated material handling use cases.
An essential insight is the value of specifying ultrasonic components with rigorously characterized directivity and ring-down suppression, both of which the MA40H1S-R addresses through its structural and material choices. This translates to more robust system margins and reduces lifecycle uncertainties under conditions of mechanical shock or long-term operation. Exploring its deployment in hybrid sensor stacks—blending ultrasonic with IR or optical sensing—can further elevate environmental perception accuracy, especially in variable lighting or reflectivity domains.
Through a combination of mature electroacoustic design, application-oriented form factor, and integration-ready electrical characteristics, the Murata MA40H1S-R sets an industrial benchmark for engineers architecting ultrasonic ranging and detection solutions in cost-sensitive yet performance-critical embedded applications.
Key features and functional parameters of the MA40H1S-R
In-depth evaluation of the MA40H1S-R ultrasonic transducer centers on its electrical, mechanical, and acoustic properties, each influencing system-level design strategies. With a nominal resonance frequency of 40kHz, the device aligns with standardized drive protocols. This facilitates seamless integration with off-the-shelf signal generation and conditioning architectures found in both analog and digital ultrasonic modules. The transducer’s resonant frequency stability ensures minimal frequency drift, which is essential for maintaining time-of-flight accuracy and simplifying echo discrimination in complex environments.
The MA40H1S-R is characterized by a sound pressure level that reliably meets manufacturer-stated expectations when stimulated with a 6 Vp-p square wave. This waveform, preferred in many deployment scenarios, particularly favors efficient driver circuit topology and pulse-echo schemes. The ability to maintain acoustic output stability under square wave excitation directly impacts detection range and angular resolution, critical for precision-dependent applications such as automated obstacle avoidance and fluid level sensing.
Operational reliability is evidenced by the device’s validation under environmental test regimes: nominal ambient temperatures (25 ± 3°C) and relative humidity (45–60%) provide reproducible acoustic and electrical performance metrics. By constraining production and test conditions within these parameters, consistency in fundamental characteristics such as transducer impedance and transient response is achieved across manufacturing batches. This repeatability is particularly advantageous for multi-sensor arrays, where inter-unit variation can compromise beamforming algorithms and cross-talk mitigation efforts.
Durability is addressed through empirical long-term operation assessments. Continuous operation exceeding 1000 hours without measurable degradation confirms the MA40H1S-R’s aptitude for deployment in embedded systems with strict maintenance intervals, such as industrial process control or remote environmental monitoring. Field experience shows that integration of this transducer into conformally coated or encapsulated assemblies further extends its functional envelope, allowing for reliable operation in challenging conditions marked by dust, mechanical shock, or vibration.
A nuanced consideration is the interplay between transducer excitation methods and system-level power efficiency. While square wave excitation at 6 Vp-p provides optimal drive performance, tailoring the burst duration and repetition rate allows for application-specific trade-offs between range, sensitivity, and energy consumption—a crucial factor in battery-operated sensor platforms.
Overall, the MA40H1S-R’s design philosophy balances manufacturability, performance consistency, and operational longevity. It offers a robust solution for engineers demanding reliable ultrasonic sensing with predictable signal characteristics across diverse usage scenarios. Such attributes minimize the need for frequent recalibration, reduce total ownership costs, and accelerate the development cycle of ultrasonic-based measurement and detection systems.
Mechanical and dimensional characteristics of the MA40H1S-R
The MA40H1S-R’s structural profile features a highly compact envelope, strategically optimized for integration within constrained spaces commonly found in ultrasonic sensing applications such as proximity detection, robotics, or occupancy monitoring. Its precisely defined external dimensions, documented in the manufacturer’s technical drawings, directly inform PCB land pattern development, mitigates fitment issues during pre-production review, and allow for precise clearance calculations in high-density multi-sensor arrays. Adherence to the standard dual-pin layout expedites electrical routing, as designers can leverage established footprint libraries without necessitating customized board revisions or disruptive deviation from mainstream reference platforms. This consistency not only accelerates prototyping but also simplifies cross-compatibility audits where design reuse drives cost and time efficiencies.
Critical to manufacturing reliability is the device’s mandatory reflow soldering process. The MA40H1S-R’s internal structure and material system exhibit sensitivities that are not tolerant of thermal gradients or manual flux application—conditions typically encountered in hand or wave soldering. Experience reveals that circumventing the prescribed reflow profile can lead to degraded transducer performance or latent reliability failures, emphasizing the importance of precise temperature and dwell control. Automated reflow, performed in nitrogen or controlled-atmosphere environments, ensures consistent joint quality and mitigates defect rates that may arise from manual intervention. The MA40H1S-R’s packaging reflects its orientation towards high-throughput production: embossed carrier tapes with specified reel diameters and pocket pitch enhance pick-and-place accuracy, maintain pin integrity through mechanical handling, and facilitate seamless component traceability. Bulk feeding and static protection integrated at the packaging level address typical failure vectors encountered in high-volume sensor module assembly lines.
Designers benefit further by considering board-level stacking constraints and mechanical fastener placements early in the integration cycle, with the component's edge clearance and pin protrusion tolerances guiding fixture selection and airflow modeling. The standardized housing interface supports drop-in replacement strategies and forward compatibility, a critical factor in evolving platform ecosystems where lifecycle management and field upgrades must avoid mechanical re-engineering. Experienced teams leverage 3D CAD models provided by the supplier, coupling them with finite element simulations to forecast system-level acoustic performance while accounting for real-world assembly tolerances.
Adopting the MA40H1S-R within a robust design flow not only addresses immediate fit and assembly requirements but also enables scalable test automation and predictable field reliability. This systematic approach to mechanical and dimensional specification underpins durable sensor system deployment, where latent flaws in assembly or component compatibility often manifest only under field stress. Ultimately, mechanical discipline, paired with standardized packaging and proven reflow capability, delivers tangible benefits—from cost-effective assembly to durable end-use performance—when integrating this ultrasonic transducer in modern embedded platforms.
Environmental robustness and qualification assessments of the MA40H1S-R
Environmental robustness forms the bedrock of the MA40H1S-R’s deployment in harsh field and industrial production settings. Rigorous qualification processes establish the transducer’s endurance to mechanical, thermal, and electrical stresses commonly encountered outside controlled laboratory conditions. At the core, the device effectively withstands mechanical shocks up to 100G and continuous vibrational loads spanning 10–55 Hz with a displacement amplitude of 1.5 mm. This ensures operational stability even within machinery subject to persistent movement or accidental impacts, directly translating to reduced failure rates during installation or servicing in mobile platforms and assembly lines.
Thermal durability is engineered into the design by subjecting production batches to accelerated thermal aging at extremes of +85°C and –40°C for 500-hour intervals. This dual-temperature endurance enables deployment in diverse ambient environments—from enclosed electrical cabinets exposed to solar loading in summer, to outdoor installations facing subzero winters. Repeated temperature cycling encompassing 100 rounds between –40°C and +85°C further simulates diurnal and seasonal fluctuations, addressing material fatigue and solder joint integrity. Such cycling tests capture latent vulnerabilities, ensuring long-term acoustic consistency across years of field use.
Moisture resilience is validated at 60°C and 95% relative humidity for extended periods. This addresses concerns of sensor drift or dielectric breakdown in humid or condensation-prone environments, like greenhouse automation or coastal infrastructure monitoring. Complementing these, the transducer’s construction demonstrates mechanical robustness through drop testing from 75 cm, simulating inadvertent drops during handling or site deployment.
Electrostatic discharge (ESD) is a major risk in production and maintenance activities. The MA40H1S-R’s ESD tolerance up to 1,000V (per 100pF/1.5kΩ modeling) minimizes susceptibility to transients during manual handling, connector insertion, or nearby switching operations. This robustness, reinforced at the device level, is crucial for maintaining system integrity in environments lacking advanced ESD mitigation protocols.
Application-specific reliability measurement hinges on maintaining acoustic characteristics post-stress. The MA40H1S-R demonstrates less than 5dB deviation in sound pressure level at its 40kHz test frequency after every qualification cycle. This narrow window of permissible variation safeguards system-level performance in ultrasonic rangefinding, occupancy detection, or liquid level sensing, where signal repeatability is non-negotiable.
Integrating these qualification layers yields both direct and indirect benefits. Deployment experience in infrastructure and robotics settings highlights a significant reduction in maintenance intervention and improved diagnostic predictability. Frontloaded qualification investment thus translates into overall lifecycle cost savings and system reliability. The convergence of mechanical, thermal, moisture, and ESD robustness within a single compact transducer positions the MA40H1S-R as a foundational element in sensor architectures demanding uncompromised durability and signal consistency under real-world stresses. This holistic approach to qualification is essential, as system failures in the field are most often rooted not in basic function, but in inadequate environmental foresight during component selection.
Application cautions and reliability considerations for the MA40H1S-R
The MA40H1S-R piezoelectric transducer serves as an effective component for consumer electronics, where cost-performance balance and moderate environmental robustness are prioritized over absolute mission-critical reliability. The device's materials and assembly do not conform to the qualification standards required by aerospace, medical, or emergency infrastructure, which restricts its application to domains where safety margins are supplemented at the system level. In signal acquisition or proximity-sensing networks, for instance, redundancy architectures or cross-checking among multiple transducers is recommended to mitigate the possibility of a single-point electrical or mechanical failure impacting overall device operation.
The inherent vulnerability of piezoelectric ceramics to surge voltages must be addressed through careful interface engineering. Mechanical shocks—such as impacts due to device drops during assembly or logistics handling—and rapid temperature transitions can generate transient voltage spikes, potentially exceeding dielectric breakdown thresholds or inducing microcracks. Integrating series resistors, surge suppressor devices, or snubber circuits in the analog signal path helps to buffer against such spikes. In field deployments, transducers showing unexplained shifts in sensitivity often trace the cause to undamped mechanical resonance or thermal excursions, emphasizing the value of proper mechanical mounting and thermal interface control. Even at the board layout stage, maintaining adequate physical decoupling from high-inertia components can significantly reduce incident energy coupling under shock.
A strict prohibition on DC bias across the MA40H1S-R leads to improved operational longevity. Continuous DC voltage, even of low magnitude, gradually polarizes and migrates charges within the piezoelectric crystal lattice or across electrode interfaces, manifesting as sensitivity loss or spectral distortion. Circuit designers typically implement AC coupling via high-quality capacitors and verify that amplifier input biasing does not inadvertently create path-to-ground leakage, which would otherwise compromise device health. This practice, while subtle, consistently results in stable signal amplitude and frequency response across extended life-testing datasets.
Environmental risks require diligent exclusion of moisture, corrosive gases, and particulate matter from both operative and storage settings. Sulfide and chloride species, commonly originating from packaging materials, battery byproducts, or certain conformal coatings, can act as accelerants for terminal corrosion or cause dielectric degradation within the transducer core. Practical mitigation includes the use of hermetically sealed enclosures, strategic air-path design, and the application of non-reactive surface coatings where full encapsulation is not feasible. Improper sealing against ambient humidity often correlates directly with increased drift in transducer capacitance and Q-factor, as observed in controlled aging experiments.
Direct exposure to water must be strictly avoided, as the MA40H1S-R lacks robust ingress protection. Users integrating the device into handheld or field-deployable systems routinely observe erratic operation or premature failure following accidental liquid contact. If applied in scenarios with incidental moisture risk, enhanced barrier methods such as over-molded housings or integration behind acoustically transparent but hydrophobic membranes can extend functional life. Nevertheless, alternatives with explicit waterproof ratings are preferred for continuous outdoor or industrial monitoring applications.
A comprehensive transducer selection framework must thus balance the inherent physical limits of the MA40H1S-R with robust electronic and mechanical system-level risk controls. Deliberate engineering choices in circuit, housing, and interface design, coupled with foreknowledge of operational environments, enable reliable integration of this device into non-critical yet demanding consumer electronics.
Integration and assembly guidelines for the MA40H1S-R
The mechanical integration of MA40H1S-R ultrasonic transducers demands precise control of applied forces. Excessive stress, especially during automated placement or manual insertion, concentrates at the housing and terminal interfaces, often initiating microcracks or deformation. Such localized failures typically manifest as open circuits or impaired piezoelectric response. Integrating soft support materials or torque-limiters within assembly tooling provides robust mitigation—minimizing the risk of material fatigue at critical contact points. Moreover, maintaining perpendicularity and alignment during soldering ensures mechanical compliance with minimal residual stress.
Material selection for mounting components plays a pivotal role in device lifespan and reliability. Sulfur- and sulfide-containing compounds accelerate electrochemical reactions at electrode interfaces, frequently observed as progressive corrosion in practice. Even low-level outgassing within enclosed modules can result in conductive residue formation, with device failures often correlated to overlooked gasketing or adhesive choices. Selecting inert thermoplastics and avoiding elastomers with uncharacterized fillers is a proven approach. Advanced validation includes accelerated corrosion testing under simulated field conditions to verify material compatibility.
Environmental management extends beyond temperature and humidity boundaries of –10°C to +40°C and 30–80% RH. Sudden shifts in ambient conditions foster internal condensation, promoting both electrical leakage and acoustic degradation. Practical experience shows that gradual acclimatization—staging devices in pre-storage areas—is essential in climates with wide temperature swings. Isolation from direct solar irradiation prevents localized heating, which can compromise epoxy seals and shorten piezo element life. Packaging protocols should enforce vapor barrier materials and minimize handling within uncontrolled environments.
Cleaning procedures require restraint, especially concerning the transducer's rear aperture. Contact with polar solvents, alcohols, or water not only threatens insulation integrity but also fosters capillary ingress, resulting in piezo element delamination over time. In process controls, compressed dry air or static-resistant vacuum cleaning prevents particulate accumulation without chemical risk.
With no defined terminal polarity, MA40H1S-R transducers introduce a non-obvious risk for phase inversion in signal-path critical designs. System-level verification—including differential scope measurements or using calibrated reference sources—ensures alignment between transmission and reception phases. Failure to address this detail often results in destructive interference or ambiguous readings in phased-array or beam-forming applications. Incorporating explicit phase-identification steps within both design review and functional test sequences establishes robust process discipline, enhancing field reliability.
A nuanced perspective reveals that the longevity and performance of the MA40H1S-R are dictated as much by integration discipline as by intrinsic device quality. Proactive attention to force management, material compatibility, environmental stability, non-invasive cleaning, and phase verification yields assemblies characterized by low drift and consistent performance metrics over extended service intervals. The intersection of detailed engineering practice and application-domain awareness directly shapes the operational envelope of the transducer, ultimately determining system-level success.
Potential equivalent/replacement models for the MA40H1S-R
Selection of equivalent or replacement models for the MA40H1S-R requires a systematic examination of both electrical and mechanical parameters. The MA40H1S-R, a 40kHz ultrasonic transducer from Murata, forms a benchmark due to its specific resonance, directivity, and mounting profile. Initiating the search with the broader Murata MA40 product family leverages compatibility, as these devices typically share physical enclosure diameters, mounting footprints, and pin spacing, streamlining replacement within established PCB layouts. Direct frequency overlap at 40kHz supports consistency in signal chain designs and ensures minimal firmware re-tuning.
Beyond the Murata ecosystem, alternative 40kHz ultrasonic transducers from manufacturers such as TDK, Nicera, and PUI Audio should be vetted on multiple fronts. Key attributes—sound pressure level (SPL), sensitivity, beam pattern, and drive voltage—must closely align with the original component to preserve detection range, accuracy, and power consumption targets. Iso-functional replacements often demand mechanical scrutiny; variations in case diameter, pin alignment, or enclosure depth can disrupt enclosure fit or introduce acoustic anomalies due to shifts in aperture positioning or housing resonance. Experienced practitioners consistently cross-reference case drawings and recommended solder pad outlines, mitigating risks of unexpected board revisions.
Environmental ratings, including operating temperature range and ingress protection, are non-negotiable in deployment scenarios subjected to wide thermal swings or exposure to dust and moisture. Overlooking these metrics frequently leads to early device failure in real-world applications such as outdoor robotics or smart parking sensors. Attention to compliance certifications streamlines regulatory approvals for end products in sectors with stringent validation requirements.
Datasheet analysis extends to subtleties such as total harmonic distortion at nominal drive conditions, as excessive harmonic content can interfere with signal processing, especially in multi-transducer arrays or environments with high ultrasonic noise. Transducer Q-factor and impedance matching considerations also interface directly with analog front-end performance, influencing both transmission efficiency and echo detectability. System design constraints—such as excitation waveform shaping or amplifier drive limitations—can shift candidate priorities during shortlist refinement.
Leveraging suppliers with robust supply chains and documented long-term availability histories further stabilizes manufacturing pipelines. Unforeseen end-of-life notifications or sourcing bottlenecks have downstream impacts on production continuity, especially for devices embedded in critical safety or infrastructure applications. Maintaining dual-qualified sources, aligned by validated test data and automated test fixture results, fortifies response flexibility in fast-changing component availability landscapes.
Ultimately, successful drop-in replacement pivots on meticulous alignment of mechanical, electrical, and environmental criteria, validated at both the schematic and physical prototype level. Layering practical testing with acoustic characterization and hardware-in-loop verification ensures that subtle deviations—often missed in datasheet-only reviews—are addressed early. Presence of specialized in-house fixtures for beam directivity and SPL measurement accelerates qualification and highlights second-order effects before broader deployment. This process-centric approach transforms replacement selection from a simple spec-matching exercise into a robust engineering discipline, foundational for reliable ultrasonic system performance across generations.
Conclusion
The Murata MA40H1S-R ultrasonic transducer is engineered for precise distance measurement, delivering consistent performance across diverse embedded platforms. At its core, the transducer leverages piezoelectric materials optimized for efficiency in both transmission and reception, enabling reliable detection of objects with minimal signal degradation. The primary operating frequency, tight beamwidth control, and sensitivity parameters are matched to suppress ambient acoustic interference, facilitating accurate ranging in environments with variable noise profiles. Design architecture emphasizes encapsulation and terminal robustness, reducing entry points for moisture and particulate contamination—critical for deployment in consumer and industrial settings where ingress protection standards are stringently enforced.
Qualification processes encompass accelerated lifetime and shock testing, ensuring that the MA40H1S-R sustains optimal resonance characteristics under repeated thermomechanical stress. Data from prolonged vibration and salt spray exposures corroborate the transducer’s suitability in devices subjected to continuous handling or outdoor installation, such as smart home automation nodes and robotic distance sensors. Engineers integrating the device benefit from manufacturer-documented mounting guidelines, which mitigate signal reflection artifacts and preserve pulse fidelity within various enclosure geometries. In practice, carefully selected PCB placement and mechanical isolation schemes suppress parasitic resonances, directly improving ranging accuracy and long-term stability, especially when coupled with algorithmic echo filtering.
Application scenarios extend from proximity alert systems in mobile devices to automated industrial inventory trackers, where fluctuations in humidity, temperature, and mechanical stress can compromise conventional ultrasonic modules. System designers frequently exploit the MA40H1S-R’s steady operating metrics under these fluctuating conditions, enabling deployment without extensive recalibration or custom environmental shielding. Notably, empirical evidence suggests that the transducer maintains signal-to-noise ratios above threshold across repeated operational cycles, outperforming less specialized models under strict reliability constraints.
Reliability and accuracy hinge on rigorous adherence to recommended installation and system integration practices. Shielding strategies that decouple the transducer from sources of electromagnetic interference, combined with methodical encapsulation, safeguard functional longevity within larger assemblies. Approaching integration not only as a placement challenge but as a system-level engineering problem yields superior results; signal integrity improves with informed choices around cabling, substrate materials, and interface circuit filtering. Ultimately, selecting the MA40H1S-R aligns with a principled, data-driven engineering rationale: leveraging proven qualification data and robust design attributes to meet and exceed detection requirements in modern embedded solutions.
