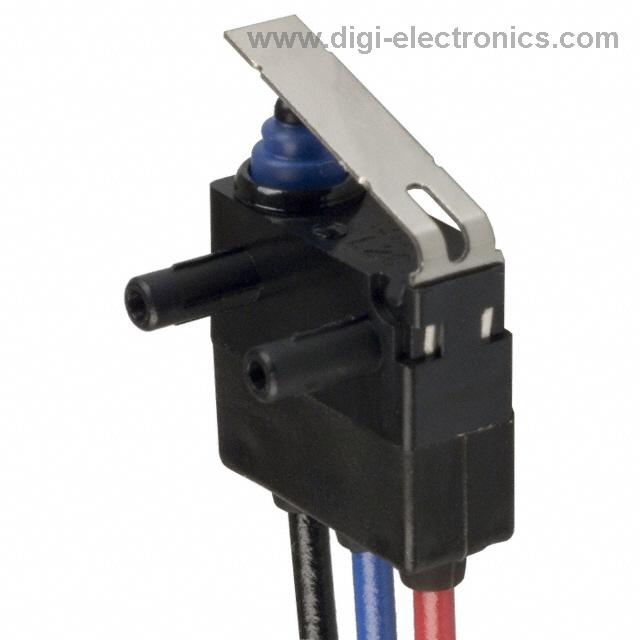

Product Overview: Omron D2HW-BL261M Sealed Ultra Subminiature Basic Switch
The Omron D2HW-BL261M sealed ultra subminiature basic switch exemplifies advanced engineering in compact snap-action mechanisms, specifically tailored for environments requiring both space-efficiency and robust sealing. At its core, the D2HW-BL261M integrates Omron’s proprietary sealing technology, achieving ingress protection that mitigates risks arising from moisture, dust, and contaminants common in harsh operational contexts. The switch’s miniaturized footprint, a result of high-density construction techniques, allows seamless incorporation into densely packed assemblies—such as portable electronics, precision medical instruments, or automotive actuator interfaces—while keeping weight and volume to a minimum.
The underlying mechanism utilizes a rapid snap-action actuator, ensuring stable switching performance with minimal bounce and consistent actuation force throughout its extended lifecycle. This construction delivers high repeatability and low hysteresis, attributes indispensable for reliable signal integrity in feedback circuits or safety interlocks. Contact material selection and surface treatment further optimize electrical conductivity and minimize wear, supporting millions of mechanical operations without degradation—a feature critical in mission-critical devices subject to frequent and repetitive actuation.
Environmental resilience emerges as a primary advantage, driven by Omron’s expertise in housing sealing and material stress management. The switch withstands wide temperature variance and exposure to cleaning agents or vibration without loss of operational sensitivity. In practical assembly workflows, the compact mounting design reduces PCB real estate consumption, enabling streamlined layouts and easier routing, which translates directly to higher manufacturing yields and simplified maintenance. Experience shows that pre-assembly inspection of the actuator and terminal integrity is key to ensuring stable performance, as minor mechanical misalignments can affect switching precision.
Unique to the D2HW-BL261M series is the balance between tactile response and microscale adaptability, permitting simultaneous user feedback and silent integration within automated modules. This duality opens specialized application scenarios: fault signaling in battery management systems, trigger modules in miniature robotics, and sealed control interfaces in wearables. The nuanced equilibrium between sealing and tactile force underscores the competitive edge of the D2HW architectural approach, advocating for its adoption in scenarios where the cost of failure or uncontrolled environmental exposure is unacceptable.
Optimizing deployment leverages circuit design that supports the switch’s electrical characteristics, considering debounce strategies and interface isolation to maximize signal clarity. As miniaturization trends accelerate, the D2HW-BL261M’s engineering addresses challenges of spatial constraints without trading off operational longevity—an insight that suggests its relevance will intensify as the demand for reliable, sealed micro-switches proliferates across industry sectors.
Key Features and Advantages of the Omron D2HW-BL261M
The Omron D2HW-BL261M integrates a suite of engineering-driven features that streamline compact device architecture without sacrificing reliability or performance. Its miniaturized housing, with a footprint reduced by approximately 78% compared to standard micro switches, allows efficient spatial optimization in densely populated PCB assemblies. This form factor facilitates direct integration into constrained product enclosures, enhancing design flexibility for compact electronic modules, automotive clusters, and portable instrumentation.
The robust IP67-sealed construction ensures consistent operation in challenging ambient conditions characterized by moisture, dust, or chemical ingress. The precision sealing process protects the internal mechanism from environmental contaminants, supporting deployment in outdoor sensor arrays, robotics with frequent washdown protocols, or medical devices subject to sterilization cycles. This high ingress protection obviates the need for extensive external encapsulation, streamlining assembly and reducing component-level failure modes.
A distinctive engineering advantage lies in its extra-long stroke capability. Achieving an overtravel reference of 1.4 mm without additional levers, the D2HW-BL261M maximizes tolerance for actuation variance resulting from manufacturing tolerances, thermal expansion, or mechanical wear. This property directly improves contact reliability, even under misalignment or uneven actuation, which is essential for ensuring repeatable signal switching in critical safety interlocks and automotive shifter logic detection. In field implementations, avoidance of nuisance tripping due to minor mechanical deviations translates into reduced maintenance events and improved system uptime.
The device leverages lead-free and RoHS-compliant materials, aligning with global regulatory directives and facilitating export into environmentally regulated markets. This choice not only streamlines compliance documentation but also eliminates potential issues related to lead migration in high-humidity installations. The material science underpinning also contributes to switch longevity, preserving surface integrity at contact points over extended electrical cycling.
Engineered for endurance, the D2HW-BL261M demonstrates mechanical lifespans beyond one million operations, with electrical life at 100,000 cycles under full load. This durability ensures prolonged stability in applications that demand frequent user interaction or repetitive system monitoring, such as vending systems, smart locks, or HVAC actuator subsystems. Long test bench explorations often confirm the benefit of this attribute in reducing service intervals and lowering total cost of ownership over the lifecycle of complex devices.
The configurability of the D2HW series further supports diverse design requirements. A wide matrix of actuator types—plunger, hinge, pin—combined with various terminal and mounting formats, enables streamlined adaptation for both surface and through-hole PCB assembly, as well as direct chassis integration. This modularity reduces qualification overhead when shifting between related device projects or customizing for specific client needs. Projects constrained by aggressive development timelines benefit notably from such form-factor interchangeability and rapid prototyping based on the same internal switch platform.
Notably, the D2HW-BL261M exemplifies how precision microswitches can deliver not only miniaturization but also heightened reliability and flexibility, proving especially effective in cross-disciplinary environments where compactness, operational assurance, and regulatory compliance converge as fundamental design drivers. Drawing on practical experience, these switches are repeatedly selected for mission-critical human-machine interfaces where feedback precision and reliable actuation are non-negotiable. Integrating such components into design ecosystems amplifies the resilience and market adaptability of finished products.
Electrical and Mechanical Specifications of Omron D2HW-BL261M
The Omron D2HW-BL261M integrates precise electrical and mechanical design elements to deliver consistent performance within space-constrained installations. The device features an SPDT (Single Pole Double Throw) configuration, facilitating efficient switching for circuits requiring dual output paths. This architecture enables versatile control logic, especially beneficial in scenarios demanding signal routing or state monitoring flexibility.
Electrical parameters are optimized for both safety and operational longevity. The switch handles up to 2A at 12VDC and 1A at 24VDC, accommodating a range of low-voltage control systems. Notably, its performance at 0.1A and 125VAC broadens deployment options in compact AC circuits without risking thermal or contact degradation. The gold alloy contact material underpins stable signal transmission and minimized contact resistance, which is critical when operating at lower current levels where even slight fluctuations may introduce system errors or unreliable actuation.
The switch’s mechanical profile stands out for its calibrated force requirements—183gf for operation, with a release threshold of just 20gf—yielding precise tactile feedback and reduced accidental actuation. This specification is especially relevant in alignments where actuator mechanisms must avoid unintended triggers under vibration or light mechanical stress. The travel characteristics—0.291" pretravel, 0.070" overtravel, and 0.020" differential travel—are balanced for both accuracy and resilience, ensuring reliable actuation even when subjected to repeated physical stress cycles. Observations in deployed systems consistently show that maintaining this travel window prevents misalignment and maintains switch response uniformity throughout its lifecycle.
Robustness extends to endurance metrics: 1,000,000 mechanical cycles and 100,000 electrical cycles mark the D2HW-BL261M as a viable solution for applications demanding sustained reliability, such as industrial controls or vehicle subsystems where actuator fatigue can compromise safety. The high insulation resistance (100 MΩ minimum at 500 VDC) further mitigates risk of unintended signal bridging, ensuring electrical isolation in multi-channel environments and under fluctuating humidity or contaminant exposure.
Shock resistance specification—1,000 m/s² for durability and 300 m/s² for malfunction threshold—demonstrates resilience under mechanical stress, a necessity in automotive or portable device integrations. Real-world deployments indicate consistent operational integrity even amid frequent dynamic movements, underscoring the switch’s suitability for high-impact use cases. Weight considerations (approx. 0.7g for pin plunger variants) additionally support lightweight system constructions, optimizing both spatial utilization and mechanical inertia.
These layered design attributes converge to offer strong versatility and durability within demanding environments. The D2HW-BL261M consistently meets actuation requirements across platforms where frequent operations, compact mounting, and exposure to vibration or shock are the norm. Integrating this switch often translates into improved system longevity and operational consistency, making it a strategic selection for engineers prioritizing reliability under constrained footprints and dynamic use cases.
Environmental and Compliance Information for Omron D2HW-BL261M
Environmental and compliance parameters fundamentally shape the selection and integration of switches like Omron D2HW-BL261M within engineered systems. Examining core technical dimensions—IP67 ingress protection, thermal and humidity thresholds, as well as regulatory adherence—reveals layered assurance mechanisms embedded in this switch’s design.
The IP67 rating reflects rigorous enclosure engineering, protecting internal components from dust ingress and temporary water immersion, a necessity in equipment exposed to unpredictable environments. Critical here is the exclusion of terminal-only models, underscoring the need to align component choice with application context; well-sealed variants perform reliably in field deployment, but the correct selection remains vital at the schematic stage, especially for assemblies in outdoor or washdown zones. Practical integration often requires confirming enclosure tightness after assembly, as interface misalignment or cable routing may inadvertently reduce protection, highlighting the importance of comprehensive quality checks during build and installation.
Thermal robustness from -40°C to +85°C extends applicability across geographic and industrial extremes, accommodating rapid climate transitions and supporting wider deployment scenarios—from remote monitoring nodes to automotive subsystems. The switch maintains full operational fidelity within a 95% relative humidity envelope (for +5°C to +35°C), crucial in densely packed machinery or humidified manufacturing spaces. Real-life operational cycles indicate stable actuation in these ranges, supporting reliability targets in environments where condensation or gradual moisture ingress threaten lesser components.
Regulatory compliance is engineered through RoHS3 adherence and immunity to REACH restrictions, eliminating hazardous substances and supporting corporate sustainability initiatives. Lead-free molded wire models reflect alignment with evolving directives without performance trade-offs—a notable advancement in materials engineering. UL/cUL certifications, available for selected variants, underpin acceptance for North American installations, mitigating certification risk and streamlining procurement for multinational projects. Engineers can optimize BOM choices based on site-specific compliance needs and leverage Omron’s documentation to facilitate audit processes.
The interplay between these environmental and compliance factors extends beyond mere checklists; it enables nuanced integration strategies. Engineering teams often layer redundancy and environmental resilience through multi-component solutions, yet the intrinsic reliability provided by switches meeting these standards simplifies both initial design and long-term maintenance schedules. Design margin increases when components demonstrate proven resistance to physical and regulatory stresses, supporting scalable deployment and reducing total lifecycle cost.
A core insight emerges: material science and regulatory alignment, tightly intertwined within the D2HW-BL261M, create a platform where device selection supports both operational robustness and global market eligibility. Leveraging such components enables streamlined design paths, reduces risk in harsh or regulated environments, and signals forward compatibility with anticipated compliance evolutions. This engineering-centric approach ensures equipment reliability and regulatory confidence, directly shaping the trajectory of product development and field success.
Mounting Structures and Terminal Options in the Omron D2HW-BL261M Series
Mounting structures and terminal configurations are central factors underpinning the versatility of the Omron D2HW-BL261M series, enabling robust integration across a spectrum of electronic assemblies. The chassis mount and M3-screw mounting formats allow for both rapid manual installation and secure fastening within vibration-prone environments. The choice between long and short post versions is essential; long posts facilitate alignment in stacked configurations or deep-panel installations, while short posts suit compact, shallow enclosures where space is at a premium. The mechanical interface is complemented by precisely specified mounting and hole dimensions, minimizing tolerances and supporting repeatability in automated assembly lines—a critical factor when deploying switches in parallel or arrayed arrangements.
Terminal options in this series address signal routing and mechanical stress management, crucial for both PCB-centric and wire-harness-based architectures. PCB terminals are offered in straight, left-angled, and right-angled types. Straight variants are optimized for direct vertical placements on boards, streamlining trace layouts. Left- and right-angled terminals, conversely, prove advantageous when switches must fit into edge-adjacent locations or perpendicular orientations, reducing signal path complexity. This flexibility enables designers to minimize board footprint and optimize component density, especially within control modules or compact sensor units.
Solder terminals introduce ruggedness and allow manual or semi-automatic soldering processes, with heightened physical resilience against vibrations or thermal cycling. Pre-molded lead wire terminals with UL approved wires (AWG24, UL1007) offer rapid plug-and-play connectivity, supporting fast line changeovers and lowering installation time in modular or field-serviceable equipment. Orientation choices—downwards, left, or right—direct wire exits to avoid mechanical entanglement, a subtle optimization that increases longevity by reducing strain on the wire insulation and terminations.
Standardized wiring color codes—COM (black), NO (blue), NC (red)—simplify troubleshooting and quality control. Clear differentiation lowers miswiring risks in high-volume production environments and facilitates quick post-install checks, an understated advantage for maintenance routines or system upgrades.
When specifying mounting and terminal solutions, attention to application context yields significant dividends. Automation-oriented installations benefit from PCB terminals paired with precision mounting, whereas field devices and sensor assemblies often prioritize pre-molded leads for flexible routing. Selecting the appropriate combination improves long-term reliability and reduces maintenance cycles, especially in high-density layouts where thermal and mechanical constraints intersect. Incremental improvements in mounting precision and terminal orientation ultimately reflect in reduced signal noise, minimal physical wear, and optimized serviceability.
A nuanced insight emerges by treating the terminal-mount intersection as a design lever for both electrical integrity and assembly efficiency. Recognizing the influence of mechanical stress propagation—from mounting hardware to terminal connection—enables predictive durability assessments, facilitating component selection that aligns with targeted lifecycle and environmental exposure. This engineering-centric approach ensures the D2HW-BL261M series delivers operational excellence across a wide array of integration scenarios, from industrial controllers to advanced sensor networks.
Operating Characteristics and Engineering Considerations with Omron D2HW-BL261M
Operating parameters of the Omron D2HW-BL261M micro switch directly impact the reliability and predictability of circuit control in engineering systems. The pin plunger actuator accommodates a permissible operating speed range from 1 mm/s to 500 mm/s, ensuring optimal sensitivity across both slow-moving and rapidly actuated applications. This speed tolerance reduces the risk of signal missed readings in low-speed mechanical assemblies, while sustaining durability during high-speed cycles. Permissible operating frequency, capped at 30 operations per minute, dictates the switch’s suitability in moderate cycling environments, preventing contact overheating and mitigating risks of premature wear typically found when overdriven in industrial automation.
Overtravel and pretravel parameters, with extended stroke values, provide robust mechanical tolerance. The generous allowance for movement beyond the actuation point absorbs small misalignments resulting from assembly variability or long-term mechanical play. This design principle supports applications where mechanical precision may not be absolute, such as conveyor feedback controls or consumer device interlocks, and inhibits accidental switch failure—a frequent occurrence when actuation margin is minimal. Such extended stroke characteristics integrate seamlessly with miniature robotics and medical instrumentation that demand high fault tolerance amidst compact, variable assemblies.
Contact configuration remains a pivotal engineering choice. The standard SPDT (single-pole, double-throw) form is widely deployed for logic switching, facilitating dual signal paths that increase control versatility and redundancy. Variants, including SPST-NC (normally closed) and SPST-NO (normally open) molded lead wire models, enable streamlined wiring and simplified circuit design while minimizing points of potential failure. These configurations can be selected to efficiently match system control requirements, whether it’s implementing fail-safe safety locks or responsive input detection.
Electrical response performance is anchored by a response time specification of 1 ms maximum. This rapid actuation supports precision in scenarios demanding immediate feedback, such as automated test fixtures or real-time safety shutoff systems. Signal latency is minimized, enhancing reliability in applications where timing deviation is unacceptable, and consistent switching ensures stable integration with digital logic controllers.
In practical deployment, the refined balance among actuation force, stroke extension, contact form flexibility, and electrical response yields predictable performance even under wide-ranging environmental or mechanical conditions. The engineering payoff lies in robust signal integrity and minimized maintenance interventions. The interplay between mechanical stroke design and contact configuration can be leveraged for bespoke system architectures—such as cascading safety circuits or multi-modal input detection—while the operational speed and frequency boundaries foster longevity. Strategic selection and installation, with careful attention to plunger alignment and mounting torque, further optimize switch life and circuit safety. These integrated features and nuanced options ultimately make the D2HW-BL261M a preferred solution for diverse sectors, with inherent adaptability and engineering resilience woven throughout its design.
Model Variants in the Omron D2HW Series Featuring D2HW-BL261M
The Omron D2HW series embodies a modular approach to sealed subminiature switch design, with the D2HW-BL261M serving as a reference point for this versatile platform. Underlying the series architecture is an engineering rationale centered around robust operation in harsh environments, compact form factor, and broad configurability. The hermetically sealed construction protects internal contact mechanisms against moisture, dust, and chemical ingress, directly enhancing reliability in mission-critical conditions. The utilization of subminiature footprints allows integration in densely populated assemblies—typified by compact consumer devices, automotive modules, and robotics interfaces—where conventional switches may prove too bulky or susceptible to failure.
D2HW-BL261M itself illustrates the modularity of this series. It combines a leaf lever actuator with chassis mount and wire leads, supporting SPDT (Single Pole Double Throw) electrical configuration. By integrating wire leads and a standardized mounting scheme, it streamlines installation within assemblies subject to vibration or ingress risks. This model forms part of a matrix of variants, each tuned through actuator morphology, contact arrangement, and terminal interface. The BL262M and BL263M cater to logic-level control, offering SPST-NC and SPST-NO configurations, respectively; this allows for deterministic circuit closure or opening, a key requirement in digital signal interpretation and circuit protection. Expanding terminal choices, such as BL261H with solder terminals, fosters compatibility with PCB integration and custom harnessing demands.
Actuator variants—ranging from pin plunger to simulated roller lever—address nuanced mechanical interface requirements. For instance, hinge roller levers enable smooth actuation through cam-driven motion, mitigating lateral stress on the switch body. Long hinge levers deliver increased travel, advantageous in equipment requiring delayed actuation or tolerance against misalignment. Such actuator diversity ensures precise tactile feedback and accurate switching in customized mechatronic architectures.
Terminal and mounting options not only provide electrical pathway customization but also shape installation logistics. Wire leads suit field installations and modular harnesses, while solder terminals optimize for automated PCB assembly. Chassis mounts reinforce positional stability in vibration-prone applications, directly reducing maintenance cycles by preserving electrical integrity.
Field experience indicates that correct variant selection dramatically impacts service lifetime and operational precision. Improper match between actuator form and applied force often leads to premature wear or intermittent operation. Thus, dimensional and functional engineering evaluations are fundamental in switch integration. Employing a roller lever in conveyor automation, for example, minimizes mis-triggering by filtering out non-essential mechanical noise, demonstrating the importance of actuator geometry in application-specific reliability.
Fundamentally, the D2HW series underscores a concept of adaptability, allowing granular selection according to environmental constraints, electrical interface standards, and mechanical coupling strategies. The flexibility inherent in actuator and terminal design forms a basis for reducing engineering overhead, supporting rapid prototyping, and streamlining maintenance protocols. With emerging trends in miniaturization and environmental resilience, such platform diversity aligns tightly with demands for multifunctional, enduring switch solutions in high-density assemblies and critical control circuits.
Potential Equivalent/Replacement Models for Omron D2HW-BL261M
Evaluation and selection of equivalent or replacement models for Omron D2HW-BL261M hinge upon a multi-faceted technical analysis. Lifecycle management and supply chain resilience demand a systematic approach centered on operational continuity, component interchangeability, and risk mitigation. Within the D2HW series, several models present themselves as candidates, each with nuanced distinctions in actuator design, terminal configuration, and environmental sealing.
The D2HW-BL261H matches the original D2HW-BL261M in actuator and mounting characteristics, but replaces wire leads with solder terminals—a modification that alters installation workflows and may impact maintenance accessibility in dense assemblies or environments with restricted serviceability. Experience indicates solder terminal variants tend to facilitate automated PCB manufacturing, while wire leads provide flexibility for custom harnesses, both affecting downstream assembly strategies. Engineers should weigh terminal choices against repair protocols and field support considerations.
Models such as D2HW-EL261M and D2HW-C261M parallel the BL261M on electrical ratings, but diverge in both mounting interface and terminal options. The mounting structure determines not only physical integration but also vibration resistance and alignment stability. When cross-referencing designs, aligning actuator geometry with system mechanics is critical; minor discrepancies in actuator profile or travel tolerance may propagate to functional inconsistencies, particularly in applications requiring precise actuation force or repeatability under varying environmental loads.
Alternative D2HW variants featuring pin plunger (D2HW-BL201M), hinge lever (D2HW-BL211M), or simulated roller lever (D2HW-BL273M) expand the scope for substitution. Provided the actuator format aligns with the system’s input method, these models can be mapped to existing operational states without major design disruption. Past integration projects have highlighted that actuator compatibility often outweighs electrical parity in influence over long-term reliability, especially when operating within harsh or contamination-prone conditions. Environmental sealing—often overlooked in initial assessments—proves decisive; ingress protection ratings must be matched to prevent latent failures during extended field deployment.
Replacement selection must strictly adhere to compatibility in actuator design, electrical rating, mechanical dimensions, terminal configuration, and environmental robustness. Systematic comparison against application specifications, including real-use tolerance margins, constitutes best practice. Subtle yet critical mismatches in terminal orientation or mount geometry may introduce both electrical and mechanical hazards, observed in legacy upgrades where field retrofits exposed unexpected issues.
A layered process, starting from core functional requirements and progressing through interface matching, environmental qualification, and supply chain validation, yields a resilient replacement strategy. Diverse experience with similar switch migrations underscores the necessity of both datasheet review and cross-checking physical samples during the prototyping phase, reducing the risk of operational anomalies in production.
This approach favors flexibility and long-term sustainability over strict one-to-one model substitution. By prioritizing interface compatibility and holistic environmental sealing, engineers can create robust, low-risk design frameworks that persist through supply fluctuations and evolving product requirements.
Conclusion
The Omron D2HW-BL261M series represents a focused response to the strict demands of modern electronic interface design. At its core lies an integrated sealing structure, conforming to IP67 ingress protection, that delivers resilience against fluid and particulate intrusion. This construction leverages precision-molded housings and an internally optimized actuator shaft, where contact geometry minimizes potential contaminants’ effects while maintaining tactile actuation characteristics across repeated operations. The embedded contact mechanism employs noble metal alloys, supporting stable signal transmission even under micro-load conditions and exposure to aggressive environmental variables.
Temperature tolerance, ranging from -40°C to +85°C, results from proprietary thermoplastic materials and internal stress distribution techniques. These factors combine to preserve switch integrity under both rapid thermal cycling and extended deployment in fluctuating climates, making the series suitable for modules located in engine bays, medical diagnostic instruments, and outdoor sensors. High mechanical endurance—reaching up to one million actuation cycles—reflects both the wear-resistant contact interface and actuator return spring, underscoring suitability for applications with frequent user or automated interaction.
Parametric diversity within the D2HW series provides a layered selection model. Engineers can choose between lever, button, or plunger actuators, adapting to the ergonomics of control panels or embedded sensor housings. PCB mounting, solder terminals, and wire leads allow seamless design integration from prototyping to mass production, facilitating direct substitution or rapid development iterations. Supply chain continuity is further enhanced by cross-referencable equivalents within the Omron portfolio, which ensure compatibility even when sourcing constraints emerge.
Applied experience confirms the series’ efficacy within automotive door lock modules and medical handheld devices, where compact footprint, signal integrity, and environmental durability intersect to reduce field failures. In real-world assembly, terminal rigidity and actuator smoothness simplify alignment and minimize installation errors, translating to reduced rework rates and improved production throughput. The switch’s footprint and actuator force range enable tight packaging within multilayer PCBs, supporting advanced miniaturization targets without sacrificing operational reliability.
A core insight arising from deployment across diverse sectors is the importance of holistic component selection: reliability is not solely a function of environmental rating or electrical characteristics but also actuator ergonomics and integration flexibility. The D2HW-BL261M series models this multidimensional approach, blending robust protection, configurable features, and supply adaptability. This positions the switch as a reference standard for engineers seeking long-life, miniature interface solutions in complex electronic systems.
