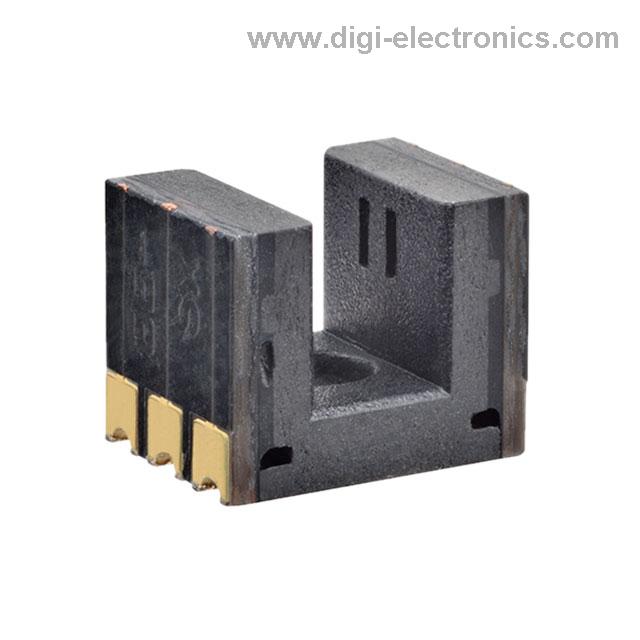

Product overview of the Omron EE-SX1321
The Omron EE-SX1321 represents a high-precision slot-type phototransistor sensor engineered to meet demanding size and accuracy constraints in automation system design. Built around a through-beam sensing mechanism, this device utilizes infrared light transmission from an emitter to a phototransistor receiver positioned opposite within a 2 mm molded slot. Interruption of this beam by an object results in a rapid change in output state, a foundational mechanism for tasks requiring accurate presence or position feedback at a fine granularity.
Key to the EE-SX1321’s utility is its ultra-compact, surface-mountable form factor. Measuring only a few millimeters across, it is optimized for situations where PCB real estate is scarce, allowing for integration within tightly packed electronic assemblies, such as compact robotic end effectors or miniature input modules in printers. The 2 mm slot width reflects careful consideration of object size resolution, enabling detection of features or parts with sub-millimeter tolerances. The dual-channel output architecture, which is uncommon at this package size, provides flexibility for differential signal processing or redundancy in safety-critical logic systems.
Operational efficiency is achieved through the sensor’s optimized electrical and optical coupling, delivering high detection repeatability and low latency signaling. This supports automated alignment, part counting, or jam detection in conveyor systems without excessive signal conditioning overhead. Surface-mount compatibility further streamlines PCB assembly workflows, catering to high-throughput manufacturing environments that demand consistent component placement and coplanarity.
Application scenarios extend across diverse automation topologies. In printer mechanisms, the EE-SX1321 is typically deployed for paper edge or media position monitoring, leveraging its immunity to ambient light and resistance to vibration-induced misalignment. In robotics, its precision and minute slot profile support end-of-arm tooling position feedback, contributing to closed-loop control algorithms that depend on deterministic state changes during fast actuation cycles. Experience shows that system stability and accuracy benefit when phototransistor slot sensors are leveraged for non-contact detection at transition points, circumventing mechanical wear and contamination risks associated with physical limit switches.
A nuanced design insight emerges from balancing slot width versus mechanical tolerance stack-up. While a narrow slot increases resolution, it requires strict mechanical control over the object path to avoid false triggers; the EE-SX1321’s 2 mm aperture offers a compromise that optimizes detection reliability without surrendering miniaturization gains. Additionally, the dual output allows for on-the-fly diagnosis of emitter degradation or foreign object intrusion by cross-referencing output behavior, thus improving long-term maintainability and minimizing unplanned downtime.
The convergence of compactness, robust optical performance, and dual-channel architecture positions the EE-SX1321 as a primary sensor solution for designers aiming to achieve both board-level density and functional integrity. Its integration simplifies object monitoring challenges in environments constrained by space, latency, and maintenance requirements, supporting scalable automation with an emphasis on precision and reliability.
Key features and design highlights of the EE-SX1321
Omron’s EE-SX1321 incorporates several engineering-centric features that address both foundational sensing requirements and real-world deployment needs. At the core of its design is a 0.3 mm optical slit, which establishes a high spatial resolution. The narrow aperture heightens the device’s sensitivity and enables the reliable differentiation of extremely fine or closely spaced targets—a necessity in automated optical inspection or microcomponent presence verification. Such precision is achieved by minimizing crosstalk and ambient light interference at the sensing element, which reduces false readings and enhances repeatability.
The sensor’s monolithic surface-mount packaging streamlines the transition from prototype to mass production. By supporting automated pick-and-place and reflow soldering, the EE-SX1321 reduces variability during assembly, thus increasing yield and lowering total installation cost. This module-centric approach fits seamlessly into high-density PCB layouts, optimizing for both electrical performance and mechanical robustness in space-constrained designs. The inherent design also minimizes component handling errors and post-solder rework, supporting stringent quality control in volume manufacturing.
A dual-channel output structure extends the device’s utility in applications demanding system-level fault tolerance and logic-level signal validation. Independent outputs allow for real-time comparison, which is beneficial for self-diagnostics and safety-critical tasks, such as misfeed detection in robotic pick-and-place or dual-edge detection in motor encoders. This redundancy can be tactically exploited to implement voting schemes, ensuring reliability even in the presence of partial channel failures or environmental disturbances.
Connectorized interfacing fundamentally simplifies both initial integration and ongoing maintenance. Quick-connect mechanisms eliminate manual soldering during board swaps, reducing mean time to repair and supporting lean manufacturing strategies on production lines. In legacy line upgrades or rapid modular system construction, this physical layer abstraction decouples sensor selection and installation from the underlying control system, fostering greater system agility.
In practice, leveraging the EE-SX1321 can provide measurable reductions in false reject rates in high-throughput industrial applications. Its predictable centering enables integration with closed-loop control systems for precision actuation. In environments demanding rapid sensor replacement—such as multi-shift facilities with minimal downtime tolerances—the device’s pluggable form and dual-output diagnostics offer substantial operational advantages over traditional through-hole or single-channel alternatives. This enables not only higher machine availability but also opens pathways for advanced error recovery based on real-time sensing feedback, supporting modern predictive maintenance initiatives.
A key insight is the deliberate convergence of mechanical design, optoelectronic architecture, and interface abstraction. This synthesis results in a sensor module optimized for both technical integration and manufacturing efficiency—key drivers in competitive automation environments. By balancing miniaturization, dual-path reliability, and ease of service, the EE-SX1321 sets a robust standard for future-proof reflective and slot-type sensor deployment.
Detailed electrical and optical characteristics of the EE-SX1321
The EE-SX1321 is defined by its integrated phototransistor output, which establishes the foundation for accurate signal conversion in optical interruption sensing. Core electrical specifications—such as maximum forward current, collector-emitter voltage, and collector current—dictate its safe operational envelope and long-term reliability. By maintaining operation at a standard reference of 25°C, the device achieves optimal balance between current capacity and photosensitive reaction, minimizing thermal-induced signal drift. Notably, the fast rise and fall times (tr and tf), typically in the microsecond range, allow the EE-SX1321 to deliver clear, rapid switching. This timing precision is essential in automation schemes where edge detection and minimal propagation delay directly affect throughput and error rates.
Optical parameters, including the spectral sensitivity and peak response wavelength, are tuned to maximize the distinction between transmission states, suppressing common-mode noise and enhancing resolution in object detection. The sensor’s characteristic curves—specifically those charting forward current against light current—provide immediate insight into the dynamic range and light-induced collector current variation. Such graphs inform threshold setting in comparator circuits and refine interruption sensitivity under different illumination conditions.
Temperature influences are nontrivial; documentation reveals a notable dependency of phototransistor response on ambient temperature shifts. Empirical references indicate that a rise in ambient temperature yields decreased light current, potentially narrowing detection margins. Engineers mitigate this via de-rating strategies, thermally integrated PCB layouts, and controlled drive currents, ensuring consistent detection even during thermal excursions. These measures are necessary for achieving robust system-level timing and maintaining a reliable logic threshold across an industrial operating range.
Power dissipation, another critical aspect, is mapped through characteristic curves correlating collector dissipation with forward input current. These relationships enable precise calculations for thermal safety margins and dictate cooling or enclosure guidelines, especially in compact installations or high-density sensor arrays. Predictive modeling based on these curves supports proactive design choices, such as judicious derating and the selection of low-thermal-resistance packaging materials.
Application scenarios extend from conveyor monitoring to slot-type object counting, where high switching speed and stable temperature performance determine integration success. Appropriate attention to the interplay of optical alignment, electrical loading, and ambient conditions results in reliable signal extraction and low false trigger rates. A nuanced understanding of these dependencies, combined with iterative field evaluation, reveals opportunities for response tuning and advanced signal conditioning. This approach ensures the EE-SX1321 transcends simple binary sensing, supporting tightly controlled automation with minimized downtime and predictable performance lifecycles.
Mechanical specifications and mounting considerations for the EE-SX1321
Mechanical integration of the EE-SX1321 begins with its compact form factor, deliberately engineered to minimize PCB footprint and facilitate high-density sensor deployment. Omron specifies principal dimensions with a tight manufacturing tolerance of ±0.2 mm, supporting precise component placement and reliable optical axis registration on assembly lines. Such dimensional control reduces cumulative misalignment error during automated mounting, enabling robust signal repeatability in production volumes. The slot aperture is geometrically optimized for consistent interruption detection, minimizing optical crosstalk and maximizing sensing accuracy across various target profiles.
Material selection for the sensor housing combines optimized infrared transparency with high-temperature resilience, ensuring stable optical performance while withstanding standard reflow and selective soldering environments. These properties prevent lens fogging and deformation under thermal load, maintaining consistent device sensitivity through its operational life. During PCB layout, maintaining sufficient land pattern clearances and reserving unobstructed approaches to the sensor slot is critical. This prevents assembly-induced fouling and ensures that moving targets traverse the optical plane without unintended obstructions or shadowing, which is notable in compact electromechanical assemblies, such as printers or banknote discriminators.
Tape-and-reel packaging (standard 2,000 units per reel) is tailored for compatibility with both high-speed pick-and-place systems and manual placement for prototypes, ensuring devices arrive unblemished with leads correctly oriented. Alignment features on the sensor package aid in fiducial recognition during automated vision-assisted mounting, directly contributing to first-pass yield rates. For new applications, the small mechanical envelope and side-slot configuration support flexible sensor orientation, permitting top, side, or inverted installations depending on enclosure constraints and maintenance access. This versatility is especially advantageous when designing scalable platforms that require sensor retrofitting or variant expansion with minimal tooling changes.
Optimizing sensor performance further benefits from iterative validation of slot positioning against real-world targets. Early-stage validation with engineering prototypes highlights that accounting for cumulative tolerances—including board shrink, component coplanarity, and final housing variation—prevents marginal alignment issues from propagating into mass production. Experience indicates that including generous clearance for target passage not only enhances sensing reliability but also simplifies long-term maintainability, particularly in service-heavy OEM applications.
In summary, comprehensive attention to mechanical specification, guided by a methodical understanding of mounting constraints and cumulative tolerances, underpins successful integration of the EE-SX1321. This approach ensures functional robustness and high-fidelity signal acquisition, elevating repeatability and throughput in system deployments where optical slot sensors are pivotal to machine function.
Soldering, storage, and handling guidance for the EE-SX1321
Soldering and storage management for the EE-SX1321 photo-interrupter demand controlled precision across all process steps. The soldering protocol centers on using reflow soldering with strict adherence to Omron’s prescribed temperature profiles, optimizing component survival during thermal cycling. Consistency in paste deposition is achieved via a metal stencil mask thickness of 0.2 to 0.25 mm, which ensures optimal fillet formation and mitigates the risk of solder bridging or voids. Engineering analysis shows that even marginal deviation in mask thickness can induce inconsistent wetting behavior, stressing the necessity for accurate stencil calibration.
Thermal excursions during reflow must always remain within the manufacturer’s specified thermal envelope, with special attention to peak temperature and dwell times. Exceeding these parameters, or increasing the number of reflow passes beyond two cycles, jeopardizes both the integrity of critical internal gold wire bonds and the dimensional stability of the resin encapsulant. Thermal imaging in PCBA studies consistently reveals that the EE-SX1321’s compact package geometry amplifies the risks of thermal shock and mechanical stress concentrations during ramp-up and cooling, making cycle control non-negotiable for yield stability.
Manual soldering is explicitly discouraged due to its propensity for producing localized hot spots, uneven thermal gradients, and inadvertent pressure on the sensor body. The gold wire bonds, engineered for minimal electrical resistance, are highly susceptible to thermomechanical fatigue or breakage under these conditions. This vulnerability translates into latent open failures, which are often detected only during functional testing or field deployment. In practice, even controlled hand rework has yielded unpredictable mechanical outcomes, reinforcing the strategy of board-level process optimization at the mass production stage.
Moisture sensitivity is another critical consideration. The sensor’s enclosure and internal elements exhibit hygroscopic behavior, necessitating robust environmental controls from warehousing through assembly. Pre-mounting storage protocols are defined: devices must be kept at 10–30°C and below 60% RH, ideally within dry-box containers utilizing desiccant instrumentation. Empirical reliability data correlate excursions beyond these parameters with elevated incidence of popcorn cracking and delamination during solder reflow, adversely affecting both optical and electrical performance.
Should absorbed moisture threaten quality, a baking regimen restores baseline dryness. However, bake-outs are strictly limited to one occurrence, and must satisfy Omron’s temperature-duration matrix. Excessive baking degrades encapsulant polymer networks, compounding the likelihood of material fatigue and microcracking over extended field operation. Process engineers often deploy traceability cards to ensure discrete tracking of bake histories, minimizing uncontrolled interventions.
Following unsealing from factory vacuum packaging, downstream reflow must conclude within 48 hours, with environmental exposure maintained inside allowable humidity and temperature windows. Exceeding these real-world time controls heightens risk of surface oxidation and interfacial hydrolysis, mechanisms which stress device insulation resistance and performance margin. In high-volume SMD production, integrating automated storage modules and tightly scheduled lot management can reduce time-in-exposure variability and streamline compliance with handling best practices.
In summary, combining precise solder profile control, stringent moisture management, and avoidance of manual intervention is essential for the EE-SX1321’s long-term reliability. Proactive monitoring and robust in-process discipline consistently yield higher product performance and reduce return rates associated with early-life component failures.
Application guidelines and safety notes for the EE-SX1321
The EE-SX1321, an Omron photomicrosensor, features precise slot-type detection suited for controlled automation environments. Its internal optoelectronic mechanism integrates an infrared LED transmitter and phototransistor receiver across a defined slot geometry, enabling responsive interruption-based state output. This fundamental sensing architecture offers reliably discrete signal transition for applications such as rotational encoder feedback, conveyor part presence, and card-in-slot recognition, provided environmental parameters remain tightly regulated.
From a reliability perspective, electrical discipline is paramount. Continuous compliance with rated supply voltage and strict adherence to input-output signal polarity maintain the integrity of the emitter-receiver pair, preempting thermal runaway or irreversible junction damage. Avoidance of transients, surges, or reverse bias conditions requires systematic integration of transient voltage suppressors and current-limiting resistors near the sensor interface—a fundamental best practice in robust circuit design. Physical isolation from ambient moisture, oil mist, or particulate contamination not only preserves optical clarity but also mitigates risk of spurious activation and corrosion-driven degradation. Typical installation protocols include enclosure-based mounting strategies and pre-operation validation under the actual site’s temperature/humidity envelope.
In automated process control, deployment of the EE-SX1321 demands holistic risk quantification relative to the application’s consequence of failure. The device is classified as non-safety rated under Omron’s guidelines, making it unsuitable for any machine safeguarding, presence detection, or interlocking role with direct impact on personnel safety. Instead, it excels within secondary automation loops—motor RPM measurement, in-slot object verification, or conveyor indexing—where system latency and error margin can be externally managed. Practical engineering implementations reinforce operational boundaries by embedding parallel sensing channels, diagnostic feedback loops, and post-detection timeouts to neutralize false positives and signal loss. Layering hardware redundancy and software validation, especially in high-throughput or mission-critical lines, extends resilience beyond the photomicrosensor’s baseline tolerances.
Material handling and disposal requirements dictate that failed or retired units undergo regulated electronic waste processing. Circuit boards and optoelectronic elements must be segregated from general trash to conform with statutory guidelines, ensuring safe reclamation of rare earths and minimization of hazardous byproduct release.
Nuanced sensor selection foregrounds context-driven design philosophy: the EE-SX1321 embodies durability and simplicity for indirect control monitoring yet requires system-level safeguards and preventive engineering to overcome application boundary limits. Direct experience points to the necessity of environmental prequalification, error-trapping logic, and modular retrofit capacity as central pillars in sustaining long-term, failure-tolerant sensor installations in modern automation facilities.
Potential equivalent/replacement models for the Omron EE-SX1321
Selecting equivalent or replacement models for the Omron EE-SX1321 requires a disciplined parameter-driven approach, focusing first on functional congruence and long-term component availability. Key internal factors, such as optical slot width, emitter-detector alignment, and dual channel signal architecture, must align closely to ensure the substitute integrates without disruption to optical path fidelity or system-level timing.
Within Omron’s comprehensive EE-SX portfolio, alternatives sharing surface-mount format (SMD), slot heights, and identical pin arrangements minimize layout modifications. Subtle differences, such as aperture geometry or phototransistor versus photodiode output stage, can introduce platform-level variability—directly impacting signal integrity, response speed, and potential noise immunity. Rigorous datasheet cross-comparison is vital; for example, minor current transfer ratio deviations can shift downstream interpretation thresholds in edge-detection or interrupt circuits, necessitating either a margin redesign or firmware adjustment.
Cross-brand substitutions further heighten the need for critical scrutiny. Absolute maximum ratings on input voltage, collector current, or operating temperature range frequently diverge, coupled with differences in output saturation voltage behavior, emitter wavelength, or housing tolerances. These factors influence not only the immediate fit but also long-term reliability under thermal cycling or vibration. Experience shows that subtle variations in mechanical tolerances from different manufacturers may require reevaluation of solder footprint or alignment jigs during assembly. Documentation inconsistencies, such as different reference pinouts or ambiguous absolute maximum tables, necessitate empirical validation using bench testing—especially for safety-involved applications.
A robust replacement strategy couples electrical matching with consideration for vendor lifecycle policies. Omron’s long-term support documentation and availability transparency often reduce the risk of premature obsolescence, compared to less-documented generic variants. For critical-volume platforms, dual-qualifying at least one alternate part—preferably from the same family and using analogous packing—migrates the supply chain risk while maintaining engineering control over signal timing and detection thresholds. This redundancy proves essential during component shortages, minimizing production delays while preserving system performance margins.
In all evaluations, implementation-specific details such as and solder profile compatibility, reflow resilience, and sensitivity to PCB contamination must be factored in at both prototyping and scale-up. Strategic alignment with the underlying application, whether for high-speed encoding, interrupt sensing, or object detection, shapes not only model choice but also the nature and extent of qualification testing. Real-world scenarios demonstrate that even with datasheet matches, in-circuit performance disparities may emerge—making staged, in-situ qualification a critical aspect of robust sensor migration.
Essentially, leveraging deep knowledge of both datasheet minutiae and production nuances positions engineers to capture functional equivalence without hidden system risks, enabling flexible sourcing that extends product life and sustains platform reliability.
Conclusion
The Omron EE-SX1321 phototransistor slot-type sensor integrates a compact form factor with precision optical detection capabilities—an intersection highly leveraged in dense automation and control environments. At its core, the device employs an infrared emitter and phototransistor receiver arranged to detect minute object interruptions within its 5 mm slot width. This through-beam configuration supports repeatable high-resolution sensing, minimizing spatial footprint while sustaining reliable output, even under fast switching conditions typical in conveyor systems, pick-and-place robotics, or PCB handling machinery.
Electrically, the sensor features robust insulation and strict noise immunity by design, protecting signal integrity during high-speed operations or in environments prone to electromagnetic interference. PCB designers benefit from the sensor’s low driving current, which assists in thermal management and contributes to the efficiency of multiplexed sensing arrays. Mechanically, the package geometry aligns with automated SMD assembly tooling, reducing mechanical stress during solder reflow and simplifying visual alignment during optical axis calibration. This seamless integration translates directly to higher assembly yields and lowers maintenance requirements during field deployment.
Expert implementation requires attention to soldering temperature profiles and controlled humidity storage per Omron’s specifications. Deviation during reflow—especially excess heat or flux intrusion—can irreversibly damage phototransistor sensitivity or internal lead integrity. Establishing tight process controls, such as using nitrogen atmospheres during reflow, amplifies device longevity and post-mount performance. In extended field operation, periodic cleaning and recalibration of the slot area mitigate dust-induced attenuation and sustain detection accuracy.
From a system architecture perspective, strategic selection between EE-SX1321 and alternate slot-type sensors during early design pays dividends in lifecycle management. Cross-referencing pinouts, dimensional tolerances, and sensitivity ensures straightforward migration or second-sourcing. This approach bolsters procurement resilience and supports platform longevity, particularly where part availability and obsolescence risks threaten throughput in high-volume lines.
A nuanced observation is that leveraging the EE-SX1321’s small footprint not only enables board-level densification but also permits modular sensor grids with multi-point feedback. Such flexibility catalyzes innovations in distributed control, real-time defect detection, and adaptive sorting—scenarios demanding precision and stability. In practice, continuous monitoring of degradation patterns, rooted in real installation data, further sharpens predictive maintenance timelines, curtailing unexpected downtime.
In tightly constrained layouts where through-beam optical detection is imperative, the EE-SX1321’s blend of mechanical compatibility, electrical reliability, and manufacturing readiness underscores its enduring suitability for advanced automation circuits. Discerning engineers exploit these multi-layered attributes to drive production efficiency while maintaining high standards for detection fidelity and operational assurance.
