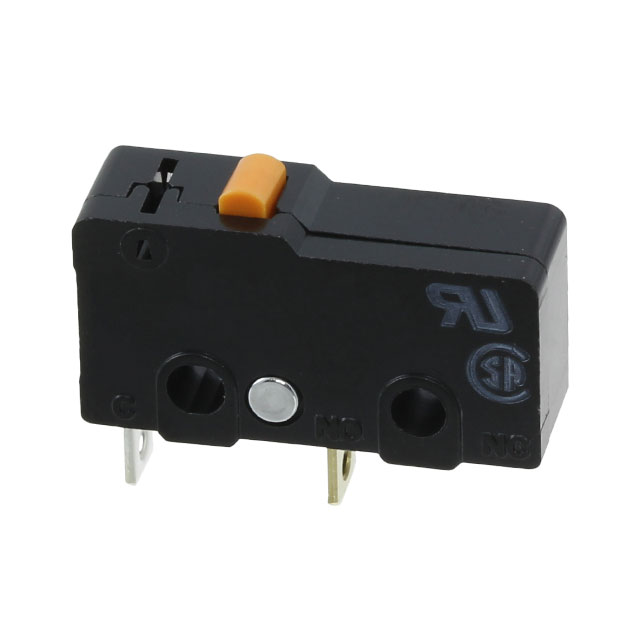

Product overview: Omron SS-5GL111 subminiature basic switch
The Omron SS-5GL111 subminiature basic switch embodies an optimal balance of compact form factor and robust electrical performance, making it a preferred choice for engineers seeking reliability in constrained environments. At its core, the SS-5GL111 utilizes a single-pole double-throw (SPDT) snap-action mechanism that ensures rapid and decisive actuation, minimizing the lag between mechanical input and electrical response. This mechanism relies on a spring-loaded contact system engineered to yield consistent switching characteristics over an extended operational lifecycle, a critical factor in minimizing system downtime and maintenance intervals.
Rated to handle 5A at 125V AC, the SS-5GL111 addresses a broad range of low-to-moderate power control needs in industrial automation, consumer equipment, and mechatronic assemblies. High-contact reliability is achieved through careful material choices and precision manufacturing, enabling dependable signal transmission even under frequent actuation cycles. The extended hinge lever actuator is particularly significant for interface design in that it allows for nuanced control of actuation force and stroke, facilitating integration into assemblies with challenging access or space constraints. The leverage effect reduces the required operating force, which lowers wear on upstream actuation linkages and promotes longer system operational life.
The switch’s chassis-mount architecture provides stable, vibration-resistant fixation within panels or enclosures, a key consideration in environments subject to mechanical shocks or continual movement. Its subminiature footprint unlocks dense PCB layouts and supports the trend toward miniaturization without sacrificing performance margins. This architectural detail also mitigates issues related to heat dissipation, as the switch housing is designed to minimize thermal buildup during high-frequency operation.
Application scenarios for the SS-5GL111 span safety interlocks in machine guarding, precision limit detection in automation axes, and operational mode selection in consumer appliances. Its SPDT configuration offers design flexibility by enabling both normally-open and normally-closed circuit incorporation, allowing for fail-safe logic or dual-path routing. The long lever variation, specifically, streamlines retrofitting and on-site adjustment processes, allowing modifications in trigger points with minimal downtime.
Observations from practical use reveal a marked reduction in false triggering and electrical noise, attributed to the positive actuation characteristics of the snap-action mechanism. In assemblies where reliability and repeatability are paramount, such as print heads or robotics end-effectors, this switch delivers stable performance across thousands of repetitive cycles. Selection of the SS-5GL111 frequently leverages its standardized mounting and connection options, simplifying replacement strategies and multi-vendor sourcing.
A distinctive advantage lies in its versatility across industries, serving as a bridge between standardization and customization. Its foundational mechanical architecture eases adaptation to emerging system requirements, especially as automation and miniaturization continue to shape design paradigms. The SS-5GL111 exemplifies how precise engineering at the component level cascades positively into system-level dependability and resilience.
Key features of the Omron SS-5GL111
The Omron SS-5GL111 embodies a set of structural and functional attributes engineered for robustness in performance-critical environments. Core to its longevity is the dual split spring mechanism, directly impacting operational lifespan by minimizing mechanical wear over extended cycles. Rigorous endurance—rated up to 30 million actuations—positions this micro switch as a trusted element in repetitive automation systems, where sustained reliability outpaces standard single-spring alternatives.
The SPDT (Single Pole Double Throw) contact configuration enhances design flexibility, supporting a variety of fail-safe architectures and control logic scenarios. By enabling straightforward circuit changeover, the SS-5GL111 directly supports redundant safety loops, alternate signal routing, and priority status indication, which are prevalent in industrial control panels and process automation nodes. Here, engineers benefit from the assured isolation and fast state transition, mitigating signal ambiguity across digital or relay-driven systems.
A long hinge lever actuator defines a universal interface, especially where installation tolerances or dimensional variances exist in operator mechanisms or cam followers. This extended actuator design translates into more tolerant alignment, easing integration alongside mechanical linkages, doors, or limit cams. Practical field application often leverages this adjustability, reducing commissioning time by absorbing non-ideal mounting positions without performance degradation.
The enforced contact gap of at least 1 mm is a deliberate safety provision catering to both user protection and machine interlock mandates. Such spacing supports arc suppression, extends service intervals, and clarifies state separation—attributes crucial in environments subject to electrical noise, vibration, or operator exposure.
A distinguishing facet of the SS series lies in its actuator diversity and customizable force profiles. Modular actuator options and selectable actuation forces empower targeted design optimization, from low-force sensing assemblies to high-durability process actuators. Decision frameworks for switch selection often integrate these variants, allowing precise adaptation to trigger sensitivity or tactile feedback requirements, particularly in bespoke HMI panels, robotics limit detection, or sequential logic controllers.
A subtle advantage arises from the interplay between fine mechanical construction and Omron's adherence to tight contact specification. The result is not merely in meeting lifecycle claims but in delivering consistent feel and actuation repeatability over time. Such reliability underpins qualitative improvements in finished assemblies, reducing maintenance and minimizing diagnostic intervals—a tangible benefit in high-throughput manufacturing or safety-critical instrumentation.
In summary, the SS-5GL111 leverages an optimized mix of endurance, adaptability, and integration-ready safety features. The resulting design elevates its utility across a spectrum of engineered systems, where switch reliability is as vital as mechanical or electrical compatibility. The selection process, therefore, extends beyond datasheet comparisons; it becomes part of a broader engineering decision chain focused on system longevity and operational certainty.
Electrical characteristics and ratings of the SS-5GL111
The SS-5GL111 micro switch presents a precisely engineered electrical profile, optimized for consistent operation in standard industrial control environments. Rated for 5A at 125V AC, the device utilizes compact internal contact geometries that minimize arcing and ensure long operational life under moderate current loads. Comprehensive testing at 20 ± 2°C ambient temperature and 65 ± 5% humidity underscores the switch’s capacity to maintain stable contact resistance and insulation performance even with environmental fluctuations, ensuring repeatable actuation thresholds and preserving low leakage currents essential for sensitive automation circuits.
Mechanistically, the SS-5GL111 integrates a snap-action mechanism, translating minimal actuator travel into high-speed transition at the contact interface. This action reduces electrical wear, supporting the test regime of 30 operations per minute and offering resilience against contact welding—frequent in higher power cycling environments. Such construction allows deployment in repetitive switching scenarios, including PLC-based signal routing, machine interlocks, or control panel logic elements, where both electrical endurance and mechanical precision define application suitability.
Model variations within the SS series extend adaptability to broader system requirements. By adjusting contact material, actuator geometries, or enclosure sealing, these models scale to higher voltage or current ratings, supporting system upgrades or specialized operating conditions without altering the mounting or wiring framework. Field experience suggests that proper derating—maintaining operation below maximum current in environments subject to voltage surges or elevated temperatures—significantly enhances long-term reliability while minimizing nuisance failures.
A nuanced appreciation emerges when considering interface dynamics between micro switches and downstream circuits. Employing proper arc suppression components, such as snubbers or RC networks, directly mitigates degradation from inductive load switching. Furthermore, verifying compatibility between the switch’s dielectric withstand voltage and potential transient events within the control system ensures safety compliance and prevents insulation breakdowns. These measures, often overlooked in initial circuit design, form a foundation for sustained switch performance in dynamic electrical situations.
Progressive optimization involves integrating diagnostic feedback, utilizing the SS-5GL111’s predictable switching signatures to feed health monitoring algorithms. Early deviation in operating force or bounce time signals impending contact fatigue—valuable information for preventative maintenance scheduling and system uptime maximization. Recognition of such patterns, drawn from in-service switch metrics, supports the deployment of advanced monitoring in high-value manufacturing or safety-critical assemblies, amplifying the operational value of this established component.
In summary, the SS-5GL111’s electrical characteristics foster robust deployment across automation, signaling, and safety applications. A detailed technical approach—incorporating environmental management, electrical interface adaptation, derating strategies, and application-driven monitoring—unlocks the device’s full potential and ensures both durability and operational safety in complex real-world systems.
Mechanical design and mounting options for SS-5GL111
The SS-5GL111’s mechanical design is engineered for robust integration and broad mounting versatility across diverse application environments. At its core, the long hinge lever, constructed from stainless steel, delivers consistent actuation force and repeatable travel. This material selection mitigates deformation and fatigue over extended cycles, an attribute essential in high-cycle switching assemblies or where constant mechanical loading induces wear. Stainless steel’s intrinsic resilience to corrosion further extends operational lifespan, particularly in environments subject to humidity or rapid thermal fluctuation.
Mounting provisions rely on dual 2.4 mm through-holes, which accommodate standard M2.3 fasteners. This interface harmonizes with both OEM chassis designs and secondary retrofitting scenarios, reducing assembly tooling requirements. The spatial distribution of these mounting points enhances stability under vibration or impact, preventing switch displacement. Alignment precision is aided by manufacturing tolerances held to ±0.4 mm on all critical geometries, ensuring seamless substitution in modular designs and maintaining actuator-lever engagement accuracy in constrained enclosures.
Adaptability is further promoted by the availability of multiple terminal configurations. Solder terminals allow secure, low-profile connections ideal for permanent or space-constrained circuit placement. Quick-connect (#110) terminals facilitate rapid exchange and repair, vital in iterative prototyping or field maintenance environments. PCB terminal options enable direct integration onto boards, streamlining wiring complexity and boosting reliability in high-density electronic assemblies. Such flexibility supports optimized electrical interfacing without dependence on ancillary adapters, which can introduce impedance or mechanical instability.
Practical experience reveals that careful attention to the mounting surface’s flatness and proper torque on the fasteners can significantly enhance switch longevity and tactile response. In high-vibration deployments, thread-locking compounds and precision washers contribute to maintaining alignment and integrity over extensive actuation cycles. Proper alignment of the hinge lever relative to distal actuators reduces side loading, preserving both switch sensitivity and lifetime.
The SS-5GL111’s configuration is not merely a function of switch operation but a facilitator of system-level reliability. Its mechanical architecture integrates lessons from repeated deployment in automation pilot runs: predictable actuation curves and secure mounting translate directly to fewer field failures and leaner maintenance protocols. The coexistence of robust levers, diversified terminal options, and standardized mounting interfaces consolidates this switch as both a drop-in solution for established designs and a reliable core for new, space-sensitive mechatronic integrations.
Environmental compliance and safety certifications of SS-5GL111
Environmental compliance and safety certifications form a foundational layer in the design and integration of electromechanical components such as the SS-5GL111. This device satisfies rigorous global regulatory demands through adherence to multiple frameworks, thus facilitating deployment across diverse markets without lengthy approval bottlenecks.
At the component level, RoHS3 compliance eliminates use of regulated hazardous substances, notably lead, mercury, and cadmium, commonly challenged by international electronics directives. This reduces environmental risk throughout the lifecycle—from supply chain management through end-of-life disposal—and enables integration into assemblies that must pass restrictive substance audits. REACH unaffected status further affirms material transparency by verifying that the switch contains no substances of very high concern per the stringent EU chemical inventory, which is frequently updated. This status is critical for manufacturers seeking to avoid late-stage compliance setbacks and maintain eligibility for EU market access as regulatory landscapes evolve.
On the safety certification front, UL1054 and CSA C22.2 No.55 listings substantiate the switch’s suitability for integration within regulated systems in North America. These standards examine operational endurance, insulation resistance, and mechanical robustness under prescribed test conditions, significantly reducing risk for OEMs during product liability evaluations and field safety audits. The availability of VDE-certified variants (EN61058-1) extends this assurance to EEA applications, aligning with the CE conformity framework. Selection flexibility between standard and heat-resistant models addresses application profiles ranging from conventional industrial controls to environments with elevated ambient temperatures, such as HVAC units or power electronics cabinets. However, the tradeoff inherent in the heat-resistant options—not being UL/CSA listed—necessitates careful risk assessment and documentation when developing solutions intended for North American markets.
In practical export and compliance operations, possession of clear industrial classifications such as ECCN EAR99 and HTSUS 8536.50.7000 streamlines cross-border logistics. These codes accelerate customs clearance and regulatory filings, reducing administrative friction particularly in projects subject to multi-regional shipments or rapid prototyping cycles. Avoidance of category restrictions simplifies supply chain logistics, often minimizing the lead times faced in project scaling and worldwide distribution.
The SS-5GL111’s compliance architecture exemplifies a tiered approach: baseline material safety and chemical transparency underpinning regional safety certifications, overlaid by export facilitation mechanisms. This progression not only future-proofs the design against recurrent regulatory tightening but also transfers risk management from downstream integrators back toward the component selection stage. Incorporating such components early in the design process can reduce late-stage design churn and field retrofit costs—insights borne out across several industrial automation deployments where streamlined documentation and global compliance led to reduced product launch delays.
When viewed through the lens of systems engineering, these certifications are not mere checkboxes but active enablers of market reach, long-term liability reduction, and supply chain agility. Standardized compliance unlocks direct pathways into both regulated consumer devices and specialized equipment, while nuanced understanding of the certification matrix enables tailored solutions calibrated to specific deployment geographies and operational envelopes. This strategic alignment with evolving standards provides a durable competitive advantage for design teams prioritizing robust, future-proofed architectures.
Application scenarios for SS-5GL111 switches
Application of SS-5GL111 switches centers on environments requiring precise, reliable actuation and robust feedback. The switch incorporates a minimum 1 mm contact gap, ensuring effective electrical isolation and providing decisive state transitions. Its long lever actuator translates minimal force into consistent operation, improving response certainty even under repeated actuation. These mechanical properties form the bedrock for deployment in machine safety interlocks, where controlled engagement and status integrity are paramount. In such safety-critical interlocks, real-world use demonstrates that the SS-5GL111 maintains performance consistency over extensive operating periods—minimizing false signaling and reducing maintenance cycles.
Within industrial control panels, the switch excels due to tightly engineered tolerances and materials that allow repetitive switching without degradation. The tactile feedback is immediate and definite, facilitating operator awareness and reducing the likelihood of incorrect input. In systems where visual cues may be limited or ambiguous, the mechanical feedback offers an additional layer of assurance. Practical application in automated manufacturing lines shows that integrating SS-5GL111 switches improves operational confidence, especially where control inputs are frequent and downtime imposes significant costs.
Extending to consumer electronics and home appliances, the switch effectively balances compact form factor with operational longevity. In field configurations, components that endure daily use—such as push-button controls or reset mechanisms—benefit from the switch’s established cycle endurance. For automation architectures, the SS-5GL111 supports high-frequency switching scenarios, demonstrating stable electrical and mechanical performance across tens of thousands of cycles. Experience suggests that this durability translates directly to longer maintenance intervals and improved overall equipment effectiveness.
One underlying insight is that the switch’s mechanical design aligns tightly with the failure mitigation requirements of high duty cycle applications. The intersection of precision actuation, contact gap management, and proven component longevity makes the SS-5GL111 integral to architectures where both safety and control reliability are engineered as non-negotiable parameters. In practice, deploying these switches within control and safety logic circuits results in measurable improvements in uptime and operational accuracy, particularly in settings sensitive to interruption or error propagation. This suitability is a direct function of design choices prioritizing repeatability, electrical integrity, and operator interaction—attributes that consistently materialize as tangible benefits in diverse engineering domains.
Operation, handling, and use considerations for SS-5GL111
Optimized deployment of the SS-5GL111 micro switch relies on meticulous adherence to process parameters throughout integration and field service. During soldering, the key mechanism involves heat management at the joint interface; controlling soldering iron tip temperature below 350°C and limiting contact to under five seconds protects the thermoplastic housing and internal actuator elements from thermal distortion and latent degradation of switching characteristics. The post-soldering rest period, extending at least one minute, stabilizes solidification and mitigates internal mechanical stresses. Excess flux is a central contamination risk—tiny ingress can result in residue on critical contact surfaces, undermining consistent conductivity and accelerating wear. Thus, precision in flux volume and application technique, followed by careful cleaning protocols, addresses latent failure modes frequently overlooked in high-throughput assembly environments.
For PCB terminal variants, hand soldering is prioritized. Manual control precisely limits flux exposure, ensuring isolation of switch internals and preventing the common field issue of contact impedance drift due to flux migration. Automated soldering, while expedient, tends to compromise this control, correlating with higher contact failure rates in long-term reliability studies. Properly executed manual soldering maintains the switch’s designed dielectric strength and signal integrity, supporting both logic and low-level circuit applications.
Mounting integrity is foundational for preserving repeatable actuation force and operational consistency. Specifying M2.3 screws with flat washers, installed on unwarped mounting planes, aligns mechanical load and ensures uniform pressure distribution. Adhering to the 0.23–0.26 N·m torque window prevents both thread stripping and housing deformation—subtle mounting-induced stresses here can propagate microcracks, impacting both tactile feedback and long-term mechanical stability. In practical scenarios, verifying torque with calibrated drivers and confirming surface flatness in pre-assembly inspections yields measurably improved in-service performance.
In micro load environments, switch reliability pivots on compliance with stated minimum electrical loads. Switches under exercise below threshold current or voltage face an increased risk of contact oxidation, leading to erratic switching and signal attenuation. Integrating contact protection circuits, such as parallel RC snubbers or diodes in inductive scenarios, suppresses transient inrush currents, thus preserving silver contact sets and extending operational lifespan. The SS-5GL111 bridges standard and low-level signal processing, provided implementation respects reported limits—a mismatch frequently manifests as premature failure in automated test benches and signal routing controls.
Root-cause analysis of field returns consistently traces anomalies either to thermal mismanagement during assembly, contamination from improper manual technique, or mechanical misalignment on mounting. Proactive process refinement at these junctures not only maximizes SS-5GL111 cycle life but also streamlines diagnostics during system-level maintenance. Careful engineering attention to these layered integration details translates directly to reduced downtime and heightened operational reliability, a critical consideration wherever fail-safe switch function is expected.
Potential equivalent/replacement models for SS-5GL111
The SS-5GL111 micro switch occupies a defined niche within Omron’s SS series, balancing reliable electrical performance and mechanical interface adaptability. At the core, the SS-5GL111 combines a rated capacity suitable for standard automation circuits with a versatile long hinge lever actuator, supporting integration in sensing or control systems where consistent tactile response is critical. Underlying its selection are electrical contact parameters, actuator geometry, terminal layout, and mounting profiles, each influencing design interoperability in equipment manufacturing.
Exploring equivalent or replacement models requires systematic evaluation of key electrical and mechanical variables. The SS-10GL111 advances current-carrying capacity to 10.1A at 250V AC, leveraging the same mounting footprint and actuator design as SS-5GL111, which streamlines retrofit opportunities in circuits with heavier relay loads or motor controls. This model is typically preferred when design constraints demand a switch with headroom for transient or sustained amperage spikes without thermal degradation. Real-world deployment confirms robust operation in industrial conveyor systems, where frequent cycling and higher load currents are routine.
For applications prioritizing low-voltage and minimal current—such as signal-level detection in precision instrumentation—the SS-01GL111 offers optimal alignment. It maintains the long hinge lever form factor but reduces contact rating to 0.1A at 30V DC. This distinction prevents potential over-specification and reduces cost where circuit protection and sensitivity dominate. In legacy control panel upgrades, transitioning from SS-5GL111 to SS-01GL111 minimizes wiring modifications, supporting modular upgrades with minimal downtime.
Mechanical interface needs sometimes outweigh pure electrical rating concerns. Variants like SS-5GL13 and SS-5GL2 incorporate simulated roller or hinge roller levers, addressing mechanical tolerances and actuator force differentials. In practice, these options facilitate enhanced mechanical compliance in assemblies with variable actuation forces or misalignment risks, such as robotic end-effectors or automated gating mechanisms. Matching lever characteristics to system dynamics frequently preempts nuisance tripping or incomplete signal transmission—an insight underscored during iterative prototyping.
Rigorous specification matching is essential during model substitution. Verification of electrical ratings ensures switched currents, voltages, and arc suppression align with system requirements. Collating actuator dimensions and force profiles against application tolerances mitigates premature wear and maintains consistent actuation feedback. Additionally, adherence to certification standards—UL, ENEC, CE—remains non-negotiable in regulated environments, especially in machinery destined for multi-market deployment.
A core insight emerges from iterative field integration: model selection, though seemingly routine, exerts direct influence on operational stability, service life, and certification conformity. Engineers who rank adaptability, precise rating alignment, and actuator reliability over generic compatibility realize gains in maintenance reductions and long-term cost savings. Applying a tightly layered approach to replacement—starting from system voltage/current, proceeding through actuator geometry, and verifying regulatory marks—anchors the process in engineering discipline and delivers optimized results for complex automation environments.
Conclusion
The Omron SS-5GL111 subminiature switch embodies a precise balance of mechanical robustness and operational versatility, establishing itself as an essential component in automation architectures. At its core, the SS-5GL111 utilizes a snap-action mechanism engineered to minimize wear through rapid switching, maintaining contact integrity in environments where microsecond response is critical. The housing and actuator employ high-grade thermoplastic materials, optimized for dimensional stability under thermal loads and repeated cycling, reducing the risk of drift and failure in applications where downtime translates directly to operational cost.
Installation dynamics are addressed through multiple mounting options and actuator geometries, offering streamlined integration within compact enclosures or dense control panels. The switch's form factor allows for precise placement even in multi-layered assemblies, facilitating maintenance without the need for extensive disassembly. Electrical ratings and certification profiles embedded within the SS series provide clear pathways for compliance with international safety directives, supporting deployment across diverse sectors such as industrial robotics, HVAC systems, and access control modules. Selection flexibility, enabled by a broad catalog of SS variants, encourages tailored configurations—whether the priority is actuation force, termination style, or ingress protection—mitigating design trade-offs that commonly hinder scalable system upgrades.
Direct field experience demonstrates that long-term reliability is sustained by meticulous mechanical tolerances and contact materials resistant to oxidation and arcing, critical in circuits exposed to variable loads and environmental contaminants. The SS-5GL111 consistently meets extended lifecycle benchmarks in high-frequency switching scenarios, such as conveyor motor endpoints or security interlocks, validating its suitability for mission-critical installations. Notably, the discrete tactile feedback serves both as a diagnostic aid and as reassurance in safety interfaces, establishing a physical baseline that enhances user confidence without necessitating additional instrumentation.
An often-overlooked strength of the SS-5GL111 series lies in its support infrastructure: standardized termination methods, such as solder or quick-connect tabs, align with automated assembly lines for streamlined procurement and logistical efficiency. Configuration granularity within the SS catalog enables direct cross-referencing with competitive models, accelerating approval cycles and reducing complexity in multi-vendor systems. This strategic interoperability, combined with the inherent durability of the design, positions the SS-5GL111 as a forward-compatible choice for evolving platforms and legacy upgrades alike. Its proven performance underlines the principle that reliability is not solely a function of initial engineering, but of consistent adaptability to the unpredictable demands of modern automated systems.
