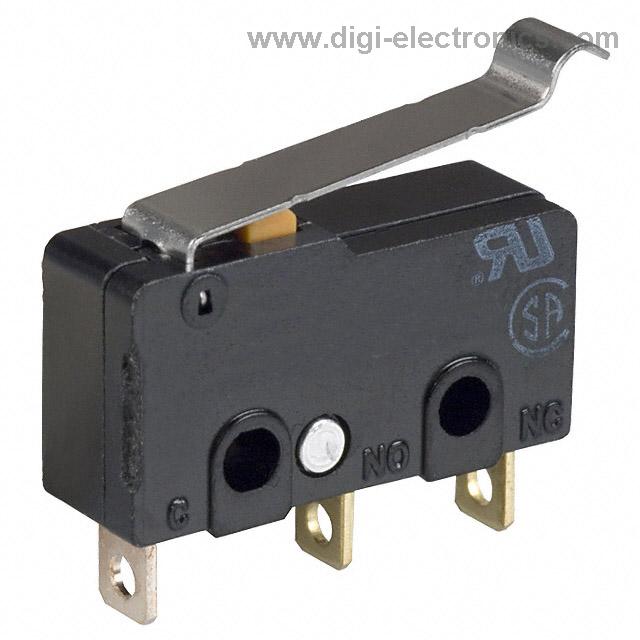

Product overview of Omron SS-5GL13 subminiature basic switch
The Omron SS-5GL13 subminiature basic switch integrates durable engineering and advanced actuation mechanics within a compact footprint, addressing the persistent need for reliability and extended service life in space-constrained assemblies. Employing a simulated roller lever actuator, the device refines the translation of low-force mechanical inputs into accurate electrical switching, reducing stress concentration on moving parts and thereby prolonging operational integrity. Its SPDT (single pole double throw) contact architecture offers versatility for both signal routing and fail-safe circuit design, enabling seamless switching between alternate paths while preserving isolation and minimizing cross-talk—an essential consideration in control logic and multi-state automation protocols.
The robust 5A contact rating at 125VAC underscores the SS-5GL13’s suitability for applications involving moderate load currents, particularly in safety interlocks, limit detection, or sequential control mechanisms typical of industrial machinery and robotics. The chassis-mount configuration streamlines integration into enclosures, promoting both rapid deployment and reliable panel retention under vibration or repeated operation. Practical deployment reveals consistent switch response under varying environmental factors, attributed to precision-matched internal components and Omron’s manufacturing tolerances, which mitigate actuator bounce and contact misalignment over millions of actuations.
In iterative prototyping scenarios, the SS-5GL13’s lever design facilitates tactile feedback and actuation repeatability, significantly reducing the need for recalibration during assembly or field adjustment. The mechanical geometry accommodates custom mounting brackets and enclosure limitations, supporting modularization for scalable automation systems. Engineers often value its low-profile form for retrofitting legacy installations or for integrating into constrained sensor arrays where direct positional feedback is essential. Embedded control developers leverage the SPDT output to interface with microcontrollers, enabling hardware redundancy and expanded actuation logic without complex software compensation.
A distinctive perspective emerges from examining the switch’s resilience to cumulative mechanical wear. The simulated roller mechanism not only distributes actuation force, but also dampens surface abrasion, yielding predictable switch performance—an attribute reflected in long-term system reliability metrics within critical infrastructure or precision positioning subsystems. This operational consistency feeds into predictive maintenance algorithms, where switch lifecycle data informs replacement intervals and downtime minimization strategies.
Ultimately, the SS-5GL13 stands out through a blend of mechanical innovation, electrical versatility, and integration-friendly features. These are leveraged most effectively in applications demanding high signal integrity, repeated actuation, and flexible mounting—demonstrating how targeted component design can drive measurable gains in reliability and maintainability for electromechanical solutions.
Key features and reliability aspects of the SS-5GL13
The SS-5GL13 embodies several core engineering solutions that address compactness, durability, and application flexibility in micro switch design. At its foundation, Omron applies a refined double split-spring system, optimizing the energy distribution during actuation. This mechanism delivers consistent contact pressure and sharply defined switching thresholds, directly enhancing reliability under high-cycle conditions. As a result, the switch achieves a mechanical endurance benchmark of 30 million operations, mitigating failure risks in demanding duty cycles commonly encountered in automated systems and industrial machinery.
A key element lies in the 1mm minimum contact gap, which ensures positive contact separation each switching event. This feature is instrumental for safety and interlock functions, where electrical isolation must be definitive and verifiable, even under micro-vibration or thermal expansion stressors. In practice, this design choice bolsters circuit resilience against arcing and contact welding, factors frequently implicated in system downtime or latent failures. The switch’s engineering, therefore, meets stringent international safety circuit standards, supporting deployment in machine safety guards, door interlocks, and elevator control systems.
Attention to actuator architecture is another critical dimension. The simulated roller lever reduces frictional variability, promoting uniform actuation force across a wide deflection angle. This mechanical stability simplifies integration with cam-driven mechanisms and position detection assemblies, regardless of installation orientation or repetitive mechanical loads. Field data suggest that this leads to predictable response profiles over millions of cycles, a requirement for precision equipment such as robotics end-effectors and automated conveyor sensors.
The micro switch’s compact footprint extends its applicability to space-constrained panels or modular system boards, allowing dense system integration without sacrificing maintainability or accessibility. In high-mix production lines, the SS-5GL13’s mounting versatility and electrical robustness enable rapid retrofit and reliable signaling even under fluctuating environmental parameters. Through iterative field validation, subtle improvements in the geometry and spring metallurgy have resulted in reduced bounce times and minimized false triggers, further cementing its relevance in noise-sensitive and high-availability circuit designs.
From a broader perspective, the SS-5GL13 demonstrates how the convergence of nuanced mechanical engineering and robust materials selection sets the benchmark for micro switches intended for critical control architectures. Its design strategy exemplifies the synthesis of miniaturization, repeatable actuation, and fail-safe performance, forming a technical foundation that supports both legacy system upgrades and next-generation automation platforms.
Electrical ratings and performance standards of the SS-5GL13
Engineered for reliability, the SS-5GL13 micro switch achieves a primary electrical rating of 5A at 125VAC, optimized for moderate current tasks such as those found in embedded control units, home appliances, and automated industrial machinery. Internal construction leverages snap-action technology, enabling rapid contact transition with minimal arcing, thereby preserving operational longevity even under repetitive cycling. Material selection emphasizes contact metallurgy and housing polymers attuned to thermal and mechanical stresses found in diverse control environments.
Variability in application demands is addressed through multiple SS series models, accommodating low-voltage DC circuitry; notably, configurations supporting 0.1A at 30VDC enable precision actuation in battery-powered instrumentation and logic-level triggering. The switch’s conformity to UL (UL1054) and CSA (C22.2 No.55) standards ensures predictable performance under regulatory oversight, with comprehensive test protocols spanning dielectric endurance, mechanical life, and fault scenarios. For installations governed by European directives, selective SS series variants attain VDE (EN61058-1) certification, legitimizing their use in international control cabinets or consumer electronics distributed across continental markets.
Design integration must factor nuanced aspects of electrical safety and thermal resistance, particularly given certain SS-5GL13 heat-resistant models may diverge from blanket certifications. Field experience confirms that higher ambient or localized heating can drive the need for supplementary qualification, such as expanded thermal aging tests or additional regulatory audits, to sustain system compliance. In custom assemblies, precise matching between switch rating and circuit demand—especially accounting for inrush currents or switching transients—directly influences maintenance intervals and overall reliability.
Beyond compliance, the switch's mechanical profile—compact lever actuation, consistent force tolerances, and mounting flexibility—accelerates deployment in panel arrays and retrofit solutions. When reliability is paramount, careful attention to environmental exposures, load profiles, and connection integrity yields optimal longevity. Long-term data reveal that deployments under-rated for load or thermal dissipation frequently exhibit contact oxidation or surface fatigue, underscoring the strategic importance of rating alignment in preventive maintenance regimes.
An implicit insight arises in project planning: standardized certification does not guarantee suitability for all environmental or application scenarios. Engineers benefit from supplementing catalog values with empirical stress testing and targeted qualification, especially when interfacing with specialized safety systems or untested control topologies. This layered approach, bridging regulatory assurance with practical adaptation, results in robust control architectures and minimized operational risk.
Mechanical structure and actuation types in the SS-5GL13 series
Mechanical structure in the SS-5GL13 series centers on the simulated roller lever, an element engineered to translate linear or cam-driven motion into reliable switch actuation. This design is optimized for consistent mechanical engagement with dynamic interfaces, such as machine cams or linear detents, enabling high repeatability in both timing and actuation force thresholds. The lever configuration precisely channels external mechanical energy toward the internal switching assembly, minimizing lost motion and contributing to the long-term stability of operating parameters.
Within the broader SS-5 platform, a spectrum of actuator variants is available, including pin plunger, hinge lever, long hinge lever, hinge roller lever, and, in this specific context, the simulated roller lever. This array allows targeted adaptation to varying space constraints, interface geometries, and motion profiles commonly encountered in automated machinery and safety interlocks. The mechanical differentiation between these types lies primarily in contact surface design and motion transfer efficiency, both of which directly affect operating force curves and contact closure dynamics.
The actuation system in the SS-5GL13 utilizes a precisely tensioned spring and rigid pivot assembly, optimized to generate a defined force-displacement response. Through the simulated roller lever, the user achieves low-friction mechanical advantage with rapid overtravel at the trip point, yielding clean, repeatable switching. This characteristic profile is essential for applications demanding precise cycle counts and mandatory state changes, such as PLC-monitored safety systems, encoder endstops, or mechanical limit detection sequences. Proper installation alignment, including consideration for lateral forces and cam surface finish, directly influences service life and switch accuracy.
In deployment, one recognizes that consistent results depend on stable mounting, avoidance of side loading, and periodic validation of actuation force thresholds against manufacturer specifications. Particularly within rapidly cycling or high-vibration environments, subtle optimizations such as parallel cam tracking and surface lubrication substantially enhance switch endurance and prevent premature wear. The interaction between lever geometry and actuation profile becomes most apparent under boundary use conditions, where the clear mechanical advantage of the simulated roller lever mitigates issues typical with more simplistic plunger or straight lever designs.
This switch series exemplifies a pragmatic approach to compact motion control interfacing: modular actuator options, robust simulations of cam-roller mechanics, and force deflection properties tailored for industrial reliability. When adapting the SS-5GL13, precision in integration elevates both functional safety outcomes and the longevity of mechanical assemblies, underscoring the importance of mechanical interface design beyond simple switch selection.
Terminal configurations and mounting options for SS-5GL13
Terminal configurations and mounting options for the SS-5GL13 micro switch are engineered to address diverse interfacing and assembly requirements common in compact electromechanical systems. The series provides multiple terminal types, each optimized for specific integration pathways. Solder terminals facilitate permanent wiring and are compatible with manual or automated soldering processes. Their robust nature allows reliable joint formation, minimizing the risk of intermittent contacts in vibration-prone or thermally dynamic environments. Quick-connect terminals in #110 size support fast, tool-less connections, streamlining repetitive assembly tasks in medium to high-volume production, while also allowing efficient field replacement. The PCB terminal variant is dimensionally compatible with standard board layouts, enabling direct through-hole soldering and reducing intermediate wiring, thus lowering parasitic resistance and improving signal integrity. This direct coupling to the PCB supports dense layout designs, optimizes workflow in SMT or mixed-technology assembly, and facilitates automated testing during production.
Chassis mounting provisions are standardized for M2.3 hardware, taking into account typical panel or bracket thicknesses found in precision instrumentation. The mounting holes employ tightly controlled diameters, which not only align with global mechanical interoperability standards but also eliminate cumulative tolerance stack-up across interfaces. This degree of dimensional fidelity safeguards switch actuation consistency, especially in assemblies where trigger points or reset forces are tightly specified. Careful selection of screws and washers, with regard to the recommended seating torque, further inhibits long-term loosening due to micro-vibrations—an essential consideration in assembled equipment subjected to cyclic mechanical loading.
SS-5GL13’s detailed dimensional specification allows seamless integration in precision subsystems—such as signal detection units and safety interlocks—where both spatial constraints and repeatability are critical. In prototyping phases, the versatility of the mounting and terminal options allows rapid iteration between hand-wired mockups and pre-series PCB builds. This modularity expedites design validation cycles and mitigates supply chain constraints by permitting interchangeability of terminal formats without altering the chassis interface.
Experience demonstrates that enforcing strict torque control during mounting—paired with adherence to recommended terminal attachment methods—yields a notable improvement in both electrical reliability and long-term positional accuracy. Consistent mechanical grounding through well-chosen mounting hardware further isolates actuation from environmental perturbations, ensuring the SS-5GL13 maintains low-profile form factors without compromising mechanical or electrical stability. This switch’s configuration flexibility thus supports high-integrity design practices in safety-critical, compact electromechanical assemblies requiring both reliability and efficient manufacturing flows.
Environmental and safety compliance of the SS-5GL13
Environmental and safety compliance for the Omron SS-5GL13 micro switch reflects a sustained commitment to industrial standards and market interoperability. Adherence to RoHS3 and REACH directives eliminates hazardous substances—such as lead, mercury, cadmium, and certain phthalates—from the manufacturing process, ensuring compatibility with global regulatory expectations in electronics export and OEM supply chains. This alignment not only satisfies legal requirements but also minimizes risk during cross-border transactions.
Inspection of moisture sensitivity is critical in production logistics. With an MSL 1 (unlimited) rating, the SS-5GL13 withstands extended exposure in both storage and assembly, removing constraints common with higher sensitivity components. This mechanical resilience allows standard SMT, wave, or manual soldering techniques without risk of latent humidity-induced degradation, a decisive factor when scheduling large batch orders or managing inventory rotation in dynamic assembly lines.
Classification under HTSUS 8536.50.7000 and ECCN EAR99 streamlines customs clearance and trade compliance, facilitating cost-effective procurement cycles. For engineering procurement teams, this reduces paperwork overhead and risk of shipment delays linked to export controls, especially when deploying in multi-site manufacturing scenarios where agility is paramount.
In applications subjected to high thermal loads or volatile field conditions, heat-resistant versions of the SS-5GL13 family, rated to withstand ambient temperatures up to 120°C, address operational demands without additional board-level mitigation. Integration in robotics, automated test equipment, and power systems benefits from such variants, enabling deployment where thermal cycling or intermittent spikes might otherwise induce premature performance loss.
Direct experience in system-level integration confirms that selecting components with comprehensive environmental and safety compliance status often results in fewer downstream complications, especially when designs interface with restrictive end-user or governmental audits. The inherent flexibility provided by the SS-5GL13’s compliance breadth supports modular project architectures and forward compatibility, simplifying ongoing lifecycle management and obsolescence planning. Embedding such considerations at both component choice and supply chain stages yields durable outcomes in both product reliability and operational efficiency.
Design and engineering considerations for SS-5GL13 applications
Selection and integration of the SS-5GL13 micro-switch demand precision in both process control and system architecture. Soldering parameters directly impact switch longevity; maintaining the iron tip below 350°C and limiting contact time to five seconds mitigates thermal stress on critical internal components. Excess heat compromises the plastic actuator and internal snap spring, introducing variability in actuation force and risking early mechanical fatigue. Flux usage requires strict control—excessive amounts facilitate capillary action, transferring contaminants into the contact zone and causing increased resistance, which proves particularly detrimental in signal-switching roles where milliohm-level consistency is vital.
Mechanical stability during mounting governs both electrical reliability and tactile actuation integrity. Applying torque within the 0.23–0.26 N·m range ensures the housing structure preserves designed clearances of the trigger and plunger. An uneven or overly rigid base introduces housing distortion, producing erratic switching points and drift under cyclic stresses typical in industrial environments. Flat mounting bases and appropriately sized washers distribute mechanical load efficiently, isolating the sensing mechanism from chassis inconsistencies.
Micro-load circuits present additional challenges; the correct switch variant with gold-plated, low-resistance contacts is necessary for load profiles below the conventional wettability threshold. Application of active or passive contact protection networks—such as RC snubbers or MOSFET buffers—dampens transient inrush currents, suppressing micro-welding and extending electrical life cycles. Empirical evidence indicates that omitting such circuitry accelerates contact pitting and functional failure, especially in highly-cycled automation or instrumentation systems. The lower-bound operational limit, as verified by JIS C5003 standards, offers a quantifiable reference to prevent ambiguous field performance under marginal load conditions.
Deployment in precision equipment, such as limit detection in CNC machinery or position feedback in robotics, leverages the SS-5GL13’s compact profile and tactile feedback. These applications highlight the interplay between mechanical restraint, electrical loading, and environmental control, reinforcing the necessity of adhering to recommended assembly and circuit integration protocols. System-level reliability emerges when attention is given not just to isolated parameters, but how mounting precision, thermal management, and circuit protection intersect to minimize cumulative degradation. Design iterations that embed feedback loops—enabling early detection of contact drift or mechanical play—consistently achieve service intervals aligned with the upper limits of the switch’s rated lifecycle, illustrating the value of a holistic engineering perspective.
Potential equivalent/replacement models for Omron SS-5GL13
Identifying suitable replacements for the Omron SS-5GL13 involves a multi-layered assessment of mechanical and electrical features, starting with actuator configuration and terminal geometry. Within the Omron SS-5 family, notable variance exists between models employing pin plunger versus hinge lever actuators, directly influencing tactile response and integration with mechanical linkages. Selecting a replacement demands precise matching of actuation force, pretravel, and differential travel parameters, as even a slight deviation may induce undesired operational latency or premature activation in critical assemblies, such as micro-driven interlocks or limit stops.
Moving deeper, contact form merits careful consideration—SPDT, SPST-NO, and SPST-NC variants each pertain to distinct circuit logic requirements. For scenarios mandating reliable switching redundancy, as in fail-safe designs or dual-path controls, a direct SPDT equivalent like the SS-5GL or SS-5GL2 becomes advantageous. Terminal style further refines compatibility; wire-lead, solder, and PCB mounting options must synchronize with pre-defined harnesses or board layouts, minimizing retrofit complexity and safeguarding against cold solder joints or vibration-induced failures.
In addressing application-driven constraints, dimensional consistency, mounting hole alignment, and envelope size are non-negotiable. Substitute models from Omron or reputable competitors, such as Honeywell's V7 or Panasonic's ASQM series, can be introduced if their datasheets demonstrate parity in current rating, voltage standoff, and insulation resistance. However, subtleties such as operator life, electrical endurance, and the presence of safety marks (UL, ENEC, CSA) require verification—oversight during selection may lead to compliance gaps or functional drift under real-world load cycles. Experience highlights that switches operating intermittently in low-humidity, vibration-rich environments exhibit longer service life with gold-plated contacts, a consideration often under-appreciated during rapid substitution.
Within high-volume production contexts, procurement teams benefit from tracking lead times and batch-to-batch consistency across SKUs. Streamlining vendor documentation and ensuring RoHS conformity early in the design validation phase mitigates project risk. A refined approach recommends beginning substitution evaluations at the level of electrical signature testing, followed by mechanical fixture trials that stress switch actuation under simulated endpoint conditions. This exposes subtle divergences in travel hysteresis and bounce deviation not always detailed within specification sheets.
The layered assessment structure underscores that successful replacement extends beyond surface-level specifications—robust interoperability arises from aligning all physical, logical, and regulatory vectors. This methodology supports sustained system reliability and ensures future scalability as device ecosystems evolve. Sophisticated teams leverage feedback from field data to iterate model selection, abstracting core performance metrics to update approved-switch databases for ongoing projects.
Conclusion
The Omron SS-5GL13 subminiature basic switch leverages precision engineering to meet rigorous demands in industrial and automation applications. Its compact form factor integrates a spring-actuated mechanism constructed for repeated cycling under diverse mechanical stress scenarios. The internal architecture utilizes durable materials optimized for contact reliability and resistance to wear, yielding an operational lifecycle that exceeds typical requirements for limit, presence, and position-detection duties. Electrical robustness is further supported by wide voltage and current compatibility, minimizing risks associated with arcing or thermal degradation during high-frequency switching.
Engineers selecting the SS-5GL13 benefit from compliance with major international standards, simplifying integration into globally-certified assemblies. The switch’s compatibility with various mounting methods, including PCB, solder, and screw terminals, supports flexible deployment across control panels, actuator arms, and sensor arrays. Precision in mounting alignment and secure terminal connections is crucial; field deployments have highlighted that inadequate fixation or loose wiring introduces premature failure modes. Careful matching of the switch’s electrical load rating to application specifics—such as inductive or resistive profiles—directly impacts operational lifespan and overall circuit integrity.
Design teams managing replacement cycles or system upgrades will find the SS-5GL13’s cross-referencing versatility beneficial. The SS-5 product line presents a spectrum of operating forces, actuator geometries, and termination styles, enabling substitution without significant re-engineering. Experience indicates that systematic cross-matching, rather than ad-hoc replacements, mitigates integration risks; reviewing the full datasheet specifications and leveraging manufacturer-provided compatibility matrices streamlines procurement and optimizes inventory strategies.
At the intersection of mechanical precision and electrical reliability, the SS-5GL13 illustrates how miniaturized components can facilitate robust control architectures. When specifying, attention to granular installation details and mindful consideration of actuator wear over time will maximize field performance. Modular selection within the SS-5 family empowers project scalability and future-proofing, an approach reflecting best practices in resilient system engineering.
