Product Overview: CM1406-04DE Series
The CM1406-04DE series represents a sophisticated integration of electromagnetic interference (EMI) filtering and electrostatic discharge (ESD) protection, purpose-built for high-speed I/O signal lines. Leveraging a four-channel architecture, each channel employs a well-defined second-order Pi low-pass topology composed of 200 Ω resistors and 15 pF capacitors. This configuration enables sharp roll-off characteristics, effectively attenuating unwanted high-frequency components while preserving signal fidelity for critical data lines such as USB, HDMI, and high-speed parallel interfaces.
At the core, the device addresses the pervasive problem of broadband EMI generated and coupled in dense, high-speed electronic assemblies. The selection of passive elements is deliberate: the 200 Ω series resistors introduce minimal insertion loss in the passband—critical for maintaining eye diagrams in digital signal applications—while the 15 pF capacitors minimize capacitive loading, thus preserving edge rates essential for protocol compliance. The second-order nature improves stopband rejection beyond single-pole solutions, reducing residual noise that could trigger data errors or regulatory compliance failures.
Simultaneously, the integrated ESD protection is designed to withstand discharges far beyond basic system-level requirements, safeguarding sensitive transceivers and ASICs from destructive surge events. The advanced process technology ensures sub-nanosecond clamping response and repeatable performance, thereby eliminating discrete implementations that could introduce board inductance or variability due to layout. This dual-function approach streamlines PCB real estate utilization, a non-trivial benefit in space-constrained modules where routing flexibility and compact solution size directly impact mechanical design options.
From an implementation viewpoint, the CM1406-04DE’s miniature 8-lead WDFN package facilitates easy surface-mount assembly with minimal thermal and parasitic penalties. This form factor aligns well with contemporary automated manufacturing flows, supporting high-yield, high-reliability production standards. Despite integration, designers must remain vigilant about trace layouts—optimizing the return path and minimizing exposure to radiating structures remains paramount to fully leverage the filter’s performance envelope.
Practically, deployment in production environments has illustrated strong robustness against both radiated and conducted disturbances during electromagnetic compatibility (EMC) compliance testing, yielding improvements in margin scores and reducing the need for rework or shielding at the enclosure level. In protocols featuring hot-plugging, the inherent ESD structures markedly reduce field failures attributed to user-induced discharges, indirectly supporting overall product longevity and reducing service costs.
The CM1406-04DE series, by unifying high-order EMI suppression with fast, repeatable ESD clamping in a low-profile package, stands as an enabling device for engineers aiming to balance signal integrity, regulatory EMI limits, and board space constraints. The clear benefit lies in its ability to simplify complex board-level challenges, offering a repeatable, high-performance solution well-suited to both greenfield and retrofit designs in consumer, industrial, and automotive electronics.
Application Scenarios for CM1406-04DE
Application scenarios for the CM1406-04DE revolve around densely populated electronic assemblies requiring simultaneous electromagnetic interference (EMI) suppression and electrostatic discharge (ESD) protection at the board level. The device leverages a multilayer architecture to combine low-pass EMI filtering characteristics with transient voltage suppression, enabling reliable operation of sensitive digital interfaces. Its small footprint and surface-mount form factor facilitate placement on high-density PCBs, accommodating the spatial constraints typical of modern mobile platforms.
In wireless handsets and ultra-portable notebooks, the CM1406-04DE is routinely deployed across high-speed data lines such as those interfacing with camera modules, display panels, or touch sensors. The integration of both EMI attenuation and ESD clamping functions eliminates the need for discrete passive networks and supplemental TVS diodes, reducing component stack height and trace routing complexity—directly addressing the challenges experienced in iterative PCB layout optimizations for devices with rigorous space limitations.
Designers implementing the CM1406-04DE observe pronounced improvements in interface resilience, with significant reductions in radiated and conducted emissions. In scenarios involving chip-to-chip connections within system-on-chip (SoC) architectures, the device enhances signal integrity, mitigating bit error rates attributed to environmental noise and ensuring compliance with regulatory standards for electromagnetic compatibility (EMC). These factors are especially pertinent during the qualification process for consumer electronics, where interface robustness directly impacts product reliability.
A distinctive advantage stems from the CM1406-04DE's balanced impedance profile and minimal capacitive loading, preserving signal rise and fall times in fast serial communication buses. This preserves performance margins in interfaces such as USB, I²C, or MIPI CSI/DSI, where signal degradation poses a risk to overall system throughput. Integration at the schematic level can be further refined through precise modeling of the component’s filter response under loaded conditions, allowing pre-emptive tuning for margin compliance.
Layered deployment within stacked PCB assemblies offers further benefits. In practice, grouping these arrays near connector inputs or immediately adjacent to high-activity IC pads maximizes protective coverage without sacrificing layout flexibility, supporting product miniaturization efforts without introducing susceptibility gaps. Notably, leveraging the CM1406-04DE as a front-line defense enables parallel reductions in secondary shielding measures, contributing to cost-optimized production and streamlined assembly flows.
Through iterative use in next-generation compact electronics, a clear trend emerges: the CM1406-04DE consolidates protection and filtering functions, delivering board-level noise immunity and robust interface safeguards in design environments where both form factor constraints and reliability are paramount. Its deployment marks a shift toward single-chip signal conditioning components, accelerating development cycles and reinforcing overall system robustness throughout the product lifecycle.
Core Features and Technological Highlights of CM1406-04DE
The CM1406-04DE integrates a set of finely-tuned RC (Pi) filter channels, each composed of a 15 pF capacitor and a 200 Ω resistor. This configuration yields a predictable low-pass cutoff, efficiently suppressing high-frequency noise while maintaining signal integrity for critical data lines. The selection of component values optimizes insertion loss and minimizes phase distortion, a consideration vital when resolving signal fidelity issues in densely packed board layouts where cross-channel interference can dramatically affect system stability.
At the device’s input stage, advanced ESD protection is realized through proprietary diode structures engineered for extreme surge tolerance. The diodes withstand electrostatic discharges up to ±15 kV per IEC 61000-4-2 and an elevated ±30 kV per MIL-STD-883 HBM, matching industry demands in both consumer and industrial contexts where unpredictable transients threaten sensitive ICs. The symmetry and planar uniformity of these diode arrays ensure negligible clamping delay and consistent response across all channels, minimizing the risk of device-latchup during aggressive ESD scenarios.
Electromagnetic interference attenuation is another cornerstone. Across the 800 MHz to 3 GHz spectrum, the filter network delivers attenuation exceeding 30 dB, directly targeting cellular, Wi-Fi, and proprietary wireless bands. This performance not only addresses compliance with global EMC standards but also sustains low BER in high-speed communication environments, particularly observed in USB, HDMI, and RF transceiver applications. In practice, this level of filtering can resolve persistent radiated emission failures during final product qualification, reducing the necessity for iterative PCB redesign or expensive shielding additions.
Underlying these electrical features, device fabrication leverages onsemi’s Centurion™ low-capacitance zener technology. Through advanced material selection and precision diffusion processes, parasitic capacitance is held well below typical thresholds, mitigating unwanted signal load and leakage current even under continuous bias. Longevity tests demonstrate the effectiveness of this approach, with markedly reduced drift in electrical parameters over extended operational cycles and exposure to thermal gradients, supporting high-reliability commitments in automotive and medical electronics.
The CM1406-04DE’s package adheres strictly to RoHS directives, utilizing lead-free solder materials and environmentally stable encapsulants. This design choice aligns with the increasing mandate for green manufacturing, but, crucially, the absence of hazardous metals does not undermine electrical or mechanical reliability. Empirical evidence from assembly line throughput and long-term field data suggests no observable increase in joint fatigue or contact resistance shifts, confirming the viability of sustainable processes for mission-critical deployments.
One subtle, yet pivotal, insight emerges from system-level deployment: the interaction between low-pass filtering and ESD clamping can introduce complex impedance profiles in multilayer PCBs. This demands precise simulation and pre-layout analysis, as overcoupling may impact edge rates or create resonant peaks in high-speed data systems. Appropriately balancing these properties during schematic capture and physical design phases maximizes the functional bandwidth while retaining optimal protection, a nuanced task best supported by close coordination between component selection and layout methodologies. This layered engineering approach underpins the robust adoption of the CM1406-04DE in sectors ranging from mobile devices to industrial control modules.
Electrical and Performance Characteristics of CM1406-04DE
The CM1406-04DE arrays are shaped for precision signal conditioning in high-frequency system environments, with their operational parameters tightly controlled to meet critical performance benchmarks. Each channel is engineered for integration into 50 Ω impedance systems, maximizing filter linearity and preserving pass-band fidelity. This standardization ensures that attenuation profiles remain consistent throughout extensive frequency sweeps, supporting system-level predictability during both initial characterization and deployment.
The array maintains stable filter capacitance, a direct consequence of its robust dielectric architecture. This stability persists despite variations in bias voltage or ambient temperature, eliminating the need for complex compensation networks during PCB layout or post-production tuning. In practice, these characteristics simplify simulation processes; parametric models match real-world measurements closely, reducing the risk of frequency drift or signal degradation in deployed systems. This intrinsic reliability streamlines qualification procedures—especially where electrical overstress and temperature excursions are routine.
The device’s absolute maximum ratings and recommended operating conditions are defined to safeguard the array under aggressive EMI and transient conditions. For high-speed data and RF circuits, the CM1406-04DE offers durable suppression of conducted and radiated noise, preventing packet loss or susceptibility spikes. Over repeated thermal cycles and prolonged biases, long-term capacitance remains within tight tolerances, fostering robust ESD performance and minimizing degradation vectors common to competitive filter solutions.
In applied scenarios, leveraging the CM1406-04DE enables engineers to scale high-density I/O arrays without sacrificing channel integrity. Layout flexibility is enhanced by the component’s consistent electrical footprint, reducing parasitic coupling effects and cross-talk in compact board designs. Experimental validation often reveals negligible insertion loss and minimal impact on signal rise times when proper matching is maintained. This aligns well with modern compliance test requirements for electromagnetic compatibility in multilayer assemblies.
A nuanced consideration is the device’s capacity for integration with mixed-signal and analog-digital interface blocks. Its predictable filtering response simplifies threshold setting in RF front ends and allows for straightforward implementation in automotive or industrial applications where environmental extremes are pervasive. By choosing CM1406-04DE, design teams position their systems for enhanced longevity and scalable performance, with stress testing indicating repeatable outcomes even when subjected to variable load profiles.
Through careful component selection and rigorous measurement, the array enables a level of system optimization that is difficult to achieve with generic discrete filters. The sophistication of its electrical characteristics directly influences downstream test throughput and field reliability, offering a foundation for future-proof circuit development in broadband connectivity and mission-critical applications.
Package Options and Mechanical Considerations for CM1406-04DE

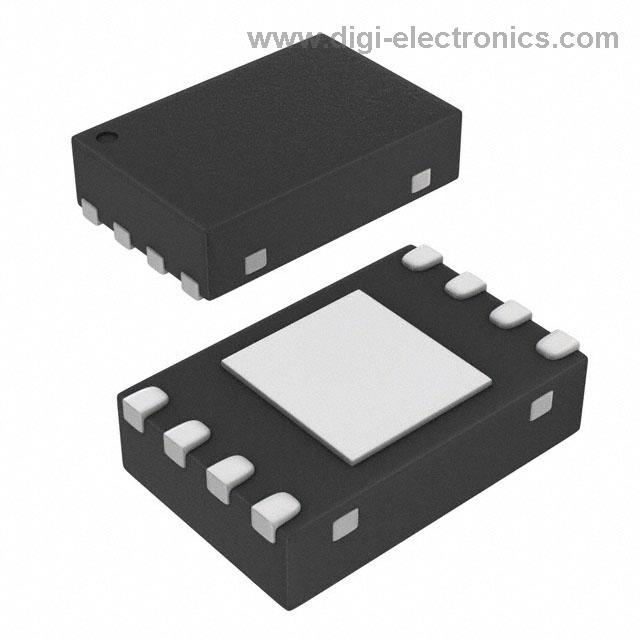

The CM1406-04DE component is engineered for streamlined integration within compact electronic architectures, primarily through its utilization of an 8-lead, low-profile WDFN package measuring 2x2 mm with a 0.5 mm lead pitch. At the foundational level, the exposed pad on the unit’s underside serves dual purposes: it provides a robust thermal path that supports efficient heat dissipation and anchors the device mechanically, enhancing solder joint reliability during both reflow and wave soldering. The pad’s footprint is dimensioned and located to support consistent wetting, minimize voiding, and simplify placement alignment, all of which are critical for process consistency in high-throughput environments.
Dimensional tolerances follow ASME Y14.5M standards, establishing a baseline for precision in automated pick-and-place operations and conformal verification routines. This geometric clarity is particularly valuable during PCB design, where high pin density and tight pad clearances increase sensitivity to deviations in coplanarity or package warpage, potentially impacting assembly yield. Experience shows that proper stencil aperture design, particularly around the exposed pad area, reduces the risk of solder starvation or bridging, both of which directly impact field reliability.
When elevated I/O or greater functional integration is necessary, the family supports a 16-lead package variant. This preserves core electrical functionality while expanding PCB routing options, enabling denser system layouts without sacrificing electrical isolation or signal integrity. However, increased pad count and package size necessitate a recalibration of the soldering profile and possibly a transition to more advanced stencil designs or paste chemistries to manage the increased thermal mass.
Surface-mount assembly is critically dependent on selecting parameters—such as reflow temperature profiles and solder paste formulations—that accommodate the device’s Pb-free finish. Historically, incomplete wetting or delamination has been observed when reflow ramps or soak intervals are mismatched with the component’s thermal inertia. Adhering to datasheet guidance and referencing industry standards, such as IPC-A-610 and J-STD-001, helps mitigate such process variations. Emphasizing inspection of the exposed pad solder coverage via X-ray tomography often reveals latent defects otherwise invisible at optical stages, providing valuable feedback for continual process optimization.
Deployment in miniaturized handheld or thermally constrained embedded systems illustrates key application scenarios. In such cases, the combination of a minimized package outline with a high-efficiency thermal ground dramatically extends operational headroom, enabling higher power densities or sustained workloads without thermal derating. These attributes often differentiate the CM1406-04DE series in system-level benchmarking, particularly where mechanical reliability, heat spreading, and electrical performance intersect as principal determining factors.
Potential Equivalent/Replacement Models for CM1406-04DE
When identifying suitable replacement models for the CM1406-04DE, a methodical approach begins with analyzing intrinsic circuit topology and channel scalability. Within the CM1406 series, varying channel counts—such as the CM1406-08DE’s eight-lane configuration—enable seamless adaptation to multi-line signal interfaces found in high-density mobile devices. Core functional parameters, including line-to-ground capacitance values, insertion loss per channel, and component mating thresholds, must be cross-verified. The 04DE’s differential filtering can be closely matched with the 08DE, provided the design maintains identical signal integrity and footprint constraints. Subtle package variations directly affect placement strategies in densely routed PCBs, especially where ESD mitigation zones overlap sensitive analog domains.
Expanding the scope to encompass onsemi’s broader filter array portfolio, designers are encouraged to scrutinize spectral attenuation performance: Not all alternatives maintain equivalent stopband suppression across the 800 MHz–2.5 GHz domain, which is critical for current RF-intensive platforms. An advanced selection process leverages synthesis of S-parameter data and empirical EMI scans to confirm that alternative models consistently meet target values for clamping voltage, transient response speed, and leakage thresholds under worst-case environmental conditions. Integration nuances—such as soldering profiles and thermal cycling resilience—should align with current assembly flows to reduce qualification cycles.
Practical deployment reveals that small deviations in parasitic capacitance between models can yield measurable differences in high-speed signaling fidelity, particularly where ground bounce or coupled noise is a persistent concern. Experienced teams tend to favor models with well-documented empirical ESD robustness, validated by repeat bench tests simulating IEC 61000-4-2 strikes. A strategic advantage lies in cataloging filter arrays whose supply chains maintain stable lead times and consistent revision controls, reducing risk in serialized product launches.
From an engineering perspective, the optimal substitution must move beyond mere datasheet alignment. Integrated cross-discipline feedback loops, connecting procurement, layout, and test, allow the selection criteria to anticipate latent incompatibilities—such as rare pad size misalignments or non-standard package depths. Robustness against cumulative stress, especially in high-turnover production environments, becomes a unifying metric. For accelerated product cycles, prioritizing suppliers with transparent change notification protocols and legacy part support bolsters long-term compatibility.
Effective model selection for CM1406-04DE replacements thus emerges not just from parameter equivalency, but from a holistic, context-sensitive evaluation of operational risk, physical fit, and supply chain stability. Where subtle technical differences intersect with real-world assembly and electrical scenarios, superior outcomes arise from engineered foresight and layered assessment.
Conclusion
The onsemi CM1406-04DE exemplifies a purpose-built device tailored for EMI filtering and ESD protection in space-constrained, high-speed electronic designs. At its core, the CM1406-04DE integrates multi-line low-pass filter arrays with robust ESD clamping structures, effectively combining two essential protection mechanisms within a single footprint. This integration streamlines PCB layout by minimizing component count and trace length, which additionally reduces parasitic capacitance and improves high-frequency signal fidelity.
The device leverages precisely engineered pi-filter or RC configurations, tuned to suppress conducted and radiated EMI typical of USB, display, and RF data lines. Advanced semiconductor process controls confine the filter’s cutoff frequency within tight tolerances, affording predictable attenuation profiles under variable load and source impedance conditions—a critical benefit during system validation and compliance testing. ESD protection is realized through optimized silicon avalanche diodes, designed for low dynamic resistance and fast clamping response, ensuring transient voltages are efficiently shunted away from downstream ICs even under repetitive stress scenarios.
The package selection, such as ultra-small µDFN options, supports form-factor reduction without compromising thermal and electrical performance. This mechanical footprint is particularly advantageous for handheld and wearable applications, where PCB real estate is at a premium and trace paths are inevitably compact. In practical deployment, the CM1406-04DE demonstrates consistent filtering efficacy and reliable ESD endurance, notably simplifying certification processes against IEC 61000-4-2 and FCC EMI standards.
A further point of distinction lies in maintaining stable filtering performance over varying environmental conditions—thermal cycling or humidity—where rival discrete or less-integrated approaches may exhibit drift. This reliability is reinforced by package-level characterization, which engineers can factor directly into worst-case system margin analyses. In multitier circuits handling sensitive analog or high-speed digital signals, employing the CM1406-04DE at the I/O boundary enables a first line of defense, preventing common signal-integrity pitfalls such as waveform distortion and microcontroller latch-up due to ESD surges.
Analyzing actual board-level implementations reveals that using the CM1406-04DE reduces post-production troubleshooting associated with signal anomalies and sporadic system resets—outcomes frequently traced to insufficient EMI suppression or incomplete ESD coverage. Incorporating the component at the initial design stage not only accelerates EMC/ESD compliance cycles but also improves long-term device reliability, as verified through return-rate statistics on fielded systems.
In summary, the CM1406-04DE advances interface robustness and functional reliability through an optimal synergy of integrated filtering and protection functions, tailored for diverse, signal-intensive portable electronics where both board area and uncompromised signal integrity are paramount drivers.
