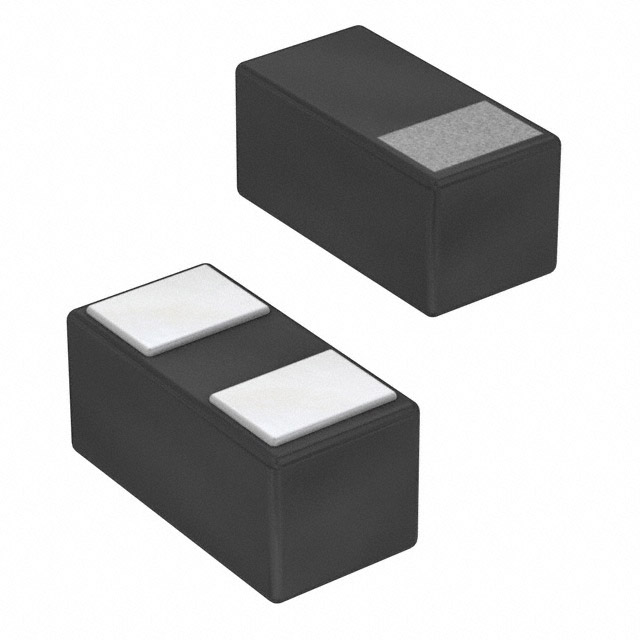

Product Overview of the onsemi ESD7C3.3DT5G TVS Diode
The onsemi ESD7C3.3DT5G TVS diode is engineered to deliver precise electrostatic discharge protection for cutting-edge, voltage-sensitive circuits. As an integral member of the ESD7C and SZESD7C series, this diode leverages advanced silicon technology to achieve fast response times and very low clamping voltages, safeguarding delicate interfaces in high-density layouts. Its reverse standoff voltage of 3.3V makes it ideally suited for protecting data lines and low-voltage power rails—a common requirement in contemporary portable and miniature electronic systems.
Fundamental to the ESD7C3.3DT5G is its core ability to rapidly shunt destructive ESD pulses away from downstream ICs. Sub-nanosecond response, coupled with low capacitance, ensures signal integrity for high-speed data lines. This characteristic becomes crucial in USB, HDMI, and advanced sensor interconnects, where excess line capacitance can degrade signal quality. The device’s stand-alone silicon junction architecture inherently limits leakage current, minimizing power draw across all operational states, a consideration of growing importance in battery-powered or energy-conscious designs.
Physical implementation considerations are addressed through the device’s SOT-723 package, one of the industry’s most compact outlines. The package not only offers a footprint of merely 1.7 mm² but also features optimized lead placement, facilitating close placement to the signal source or IC pins—critical for cutting ESD path impedance. In tightly constrained designs, package miniaturization directly translates to the ability to integrate robust protection without violating layout or stackup constraints, particularly in multi-layer boards typical of smartphones, wearables, and medical instruments.
Application scenarios highlight the device’s versatility. In smartphone mainboards, the ESD7C3.3DT5G supports touchscreen controllers and camera interface lines, where high interaction densities drive up the risk of ESD events. In portable imaging platforms, the diode’s low capacitance enables the use of high-speed serial camera interfaces without signal degradation. Similarly, in compact power modules or sensor subassemblies, its low leakage and high standoff voltage help designers comply with strict energy budgets while ensuring high reliability under repeated ESD exposure.
Practical experience demonstrates that placing the TVS diode as close as possible to the connector or input contact greatly enhances protection effectiveness, underscoring the value of the small package and thoughtful PCB routing. Soldering yields remain consistently high due to the mechanical robustness of the SOT-723 format, streamlining automated assembly processes.
A notable insight emerges regarding system-level ESD performance: while discrete TVS diodes like the ESD7C3.3DT5G cannot fully replace a holistic PCB design strategy, their physical proximity to susceptible nodes often becomes the decisive factor in passing demanding IEC 61000-4-2 ESD tests. The combination of minimized capacitance, rapid response, and minute physical outline not only aligns with but also anticipates the next generation of ultra-compact, high-performance, and ultra-reliable electronics. This positions the ESD7C3.3DT5G as a foundational element for effective ESD mitigation in increasingly space- and performance-constrained applications.
Key Features and Performance Parameters of the ESD7C3.3DT5G
The ESD7C3.3DT5G stands out as a robust ESD protection solution engineered for high-speed data line applications. Fundamental to its design is the achievement of minimal capacitance, measured between 6.2 pF and 13 pF, effectively preserving signal integrity in environments where transmission speeds are paramount. Excess capacitance in ESD clamps often introduces unwanted signal distortion or data bottlenecks, especially in USB, HDMI, or other differential data interfaces. The controlled capacitance profile of the device ensures high-frequency signal preservation, directly translating to reduced bit error rates and stable system performance across a variety of platforms.
Equally important is the device’s low leakage current—a critical factor in the design of energy-sensitive and battery-powered circuits—minimizing parasitic paths and enhancing long-term system reliability. The sub-nanosecond response time (<1 ns) enables instant clamping under ESD events, a factor that marks the threshold between component survival and catastrophic failure. This swift action is achieved through advanced internal construction and semiconductor materials, ensuring that voltage surges are redirected before they propagate into sensitive circuitry.
Operational boundaries are defined by a maximum stand-off voltage of 3.3 V, making the ESD7C3.3DT5G ideal for modern low-voltage logic and I/O standards. The device’s low clamping voltage further distinguishes its application, as it efficiently channels high-energy transients while maintaining downstream voltage levels within safe margins. In practical PCB layouts, this means that even under repeated ESD strikes, the protected ICs or modules remain unaffected due to the minimized residual voltage reaching the load.
Endurance under extreme conditions is validated by an HBM ESD rating exceeding 16 kV according to IEC 61000-4-2 Level 4. This quantifiable resilience makes the device a strategic choice where compliance with stringent EMC and product robustness standards is mandatory. Its use extends to interface and connector protection in consumer, industrial, and notably automotive sectors. The availability of the SZ-prefix variant, with its AEC-Q101 qualification and PPAP support, facilitates deployment in high-reliability environments, such as safety-critical automotive ECUs, ADAS modules, and power-train communication buses—where traceability and strict process control are baseline requirements.
Environmental compatibility is assured through the device’s Pb-free composition, which aligns with evolving regulatory and sustainability imperatives. In practice, integrating this ESD protection device into SMT designs is straightforward. Its small footprint reduces parasitic inductance and affords optimal placement adjacent to connectors or entry points. Field experience consistently confirms a reduction in RMAs and ESD-related failures post-implementation. The thoughtful balance of electrical characteristics in the ESD7C3.3DT5G addresses the not-so-obvious reality that ESD threats are both frequent and unpredictable, and robust line protection must never compromise signal fidelity.
A holistic evaluation of ESD protection pivots not solely on ratings but on the interplay between response speed, capacitance control, clamping action, and device reliability in complex environments. The ESD7C3.3DT5G’s feature set positions it as a best-in-class solution for modern electronics, where protecting data integrity and system uptime outweighs the nominal cost of component integration.
Mechanical Design and Packaging Details of the ESD7C3.3DT5G
The mechanical design and packaging of the ESD7C3.3DT5G reflect a systematic response to the rigorous demands of contemporary electronics miniaturization and assembly scalability. The SOT-723 (CASE 631AA) plastic surface-mount package delivers a 1.20 mm x 1.20 mm footprint with a height of 0.50 mm, providing exceptional density for today's advanced PCB layouts. This dimensional optimization allows for placement on both PCB surfaces, directly supporting doubled circuit complexity where board real estate is at a premium, such as in high-speed data ports and handheld device motherboards.
By tolerating any mounting orientation, the SOT-723 form factor streamlines integration within automated pick-and-place operations, accelerating throughput and minimizing alignment errors typical in the assembly of ultra-small components. Proven thermal resilience with a 260°C maximum reflow temperature harmonizes with standard lead-free soldering profiles, ensuring consistent wetting and reliability through multiple thermal cycles. Assemblers consistently observe this robust temperature threshold as beneficial for maintaining board integrity during double-sided reflow, particularly when working with sensitive multi-layer stackups.
The package finish utilizes a 100% matte tin lead surface, which aligns with RoHS-compliant processes and exhibits stable solder joint formation under various flux chemistries. This surface treatment reduces oxidation risk during extended storage and high-temperature handling—critical for maintaining process consistency in automated factories operating around the clock. Such material choices guarantee cross-compatibility with legacy and forward-looking assembly lines, preserving both environmental compliance and electrical performance.
Clear and traceable device marking supports disciplined inventory control and failure analysis throughout the supply chain. Variations in orientation and marking implementation, determined per production lot, ensure that field and post-market diagnostics remain efficient. This level of traceability contributes directly to yield management strategies and root-cause investigation protocols, providing a tangible edge in large-scale consumer electronics production.
Material selection extends beyond manufacturability, with SOT-723 casing certification to UL 94 V-0 for flame retardance. Achieving this level of safety performance is essential not only for regulatory compliance but also for reducing risk profiles in densely populated electronic assemblies. The convergence of compact form, environmental robustness, and process-friendly attributes in the ESD7C3.3DT5G packaging exemplifies a balanced approach to modern device engineering, where each mechanical and material choice coalesces to reinforce product quality and scalable manufacturing.
Electrical Characteristics and Application Considerations for the ESD7C3.3DT5G
The ESD7C3.3DT5G is optimized for robust ESD protection in circuits requiring low clamping voltage without compromising high-speed signal integrity. At $T_A = 25^{\circ}$C, the reverse standoff voltage of 3.3 V establishes a threshold below which the device remains in the off state, preventing unwanted leakage paths while safeguarding downstream components. The forward voltage, limited to 1.1 V at 10 mA, ensures minimal voltage drop during ESD events, reducing stress on protected lines and maintaining reliable operation under transient conditions.
Its characterization at 1 MHz addresses the strict frequency requirements present in contemporary interfaces such as USB 3.x, HDMI, and DisplayPort. This practice ensures that insertion loss and capacitive effects are well-controlled even as signal rates enter the multi-Gbps domain. The device’s low leakage, typically in the nanoampere range, mitigates power consumption concerns in ultra-low power applications, while its capacitance—often below 0.5 pF—precludes the introduction of detrimental signal distortion or eye diagram closure in differential signaling protocols.
Physical implementation benefits from the ESD7C3.3DT5G’s ultra-low profile, streamlining placement in height-constrained layouts. This is crucial when integrating protection on flex PCBs, stacked assemblies, or within edge-connector footprints common to mobile and wearable platforms. A smaller z-height simplifies the mechanical integration of shielding and enclosure designs, facilitating EMC compliance without increasing board thickness or requiring extensive board real estate.
In practical deployment, the device’s rapid response time to fast ESD pulses, combined with its negligible series resistance, preserves transmission line impedance and limits data errors during system-level ESD strikes. Optimal performance is realized when the device is placed close to I/O connectors. This minimizes parasitic inductance and maximizes clamping effectiveness, a best practice validated in densely routed application boards where trace running lengths are tightly constrained.
Close analysis reveals that voltage overshoot and undershoot across the protected node are minimized by the ESD7C3.3DT5G’s tailored snap-back behavior, which complements driver performance in sensitive analog front-ends and prevents latch-up in adjacent CMOS logic. The dynamic characteristics of the device strike a necessary balance: ensuring fast energy diversion during ESD events while minimizing capacitive loading under quiescent signal conditions—a critical interplay for reliable operation in space-constrained, high-speed electronic systems.
ESD Clamping Behavior and Protection Mechanism in the ESD7C3.3DT5G
Effective Electrostatic Discharge (ESD) protection hinges on controlling the transient voltage applied across sensitive circuit elements during an ESD event. The ESD7C3.3DT5G transient voltage suppression diode is engineered to intercept and shunt high-energy surges, maintaining the voltage across vulnerable points at levels well below the component damage threshold. Its clamping behavior—quantified as clamping voltage—directly correlates to the device’s ability to protect against ESD stress, a performance facet critical in safeguarding advanced integrated circuits.
The underlying operational mechanism involves a nonlinear conduction response. At low voltages, the diode remains in high impedance; once the applied voltage exceeds its breakdown threshold, it rapidly transitions to a low impedance path. This swift activation is essential for dissipating energy before it couples deeply into protected circuitry. Empirical data, particularly time-domain oscilloscope waveforms captured during IEC 61000-4-2 8 kV contact discharges, show the ESD7C3.3DT5G achieves symmetric clamping for both positive and negative pulse polarities. Its sub-nanosecond rise time and rapid recovery ensure that the peak voltage at the protected node is sharply limited, consistent with high-end system requirements in data and power-sensitive environments.
A common engineering challenge in circuit protection is the disparity between system-level ESD standards and actual device-level clamping performance. System standards, while defining ESD immunity, do not address component-specific response curves. Recognizing this, device manufacturers provide time-resolved current and voltage data under standard stress conditions. Such characterization enables predictive modeling and helps design teams align component selection with board-level robustness targets. The availability of granular waveform records aids in calibrating simulation models, facilitating precise PCB layout optimization and reducing susceptibility hotspots, particularly crucial when migrating prototypes to mass production.
Practical deployment reveals additional considerations. For instance, placement proximity to the protected IC—ideally minimizing routing parasitics—significantly impacts effective clamping action. Experience also demonstrates that consistent, repeatable clamping performance under both fast and slow rise-time surges is vital for applications ranging from consumer electronics to industrial controls, where ESD risk profiles vary. The ESD7C3.3DT5G’s performance envelope confirms its utility across a portfolio of designs, especially in scenarios demanding low leakage current and high reliability during repeated ESD exposures.
A nuanced insight emerges regarding optimal selection criteria: rather than focusing solely on minimum clamping voltage, designers achieve higher system resilience by balancing low residual voltage, fast reaction time, and thermal stability. The trade-off between ultra-low clamping and device parasitics often dictates the final bill of materials in cost-sensitive products. Anticipating real-world stress factors, such as combined ESD and electrical overstress, further shapes protection strategy. Advanced waveform characterization thus serves as both validation and diagnostic tool, enabling high-fidelity system engineering and robust field performance.
Typical Use Cases for the ESD7C3.3DT5G in Engineering Design
Typical deployment scenarios for the ESD7C3.3DT5G center on safeguarding low-voltage signal lines and power rails from transient voltage surges, primarily Electrostatic Discharge (ESD). Leveraging a robust clamp structure in an ultra-compact DFN package, this device presents a low-profile, low-capacitance solution ideal for high-speed applications requiring minimal signal integrity loss. Its response time in the sub-nanosecond range ensures that sensitive interface circuitry—such as in USB, HDMI, SIM, and SD card lines—is shielded from disruptive events without inducing unwanted line loading or excessive leakage.
At the material level, the ESD7C3.3DT5G utilizes advanced silicon process integration to maximize suppression effectiveness while keeping dynamic resistance minimal. Such characteristics translate directly into improved system robustness, as evidenced in scenarios like industrial control modules and mobile handsets, where board-level interactions introduce complex noise coupling. The protector’s low insertion capacitance becomes especially consequential for RF antenna paths, as it prevents detuning and preserves communication range—addressing a persistent challenge in compact IoT and wearable platforms.
In physical layouts characterized by dense multilayer routing, the minute footprint (SOD-723 style package) permits strategic placement directly adjacent to critical pins. This proximity is key for intercepting ESD threats before propagation into internal system layers, particularly in automotive infotainment, navigation units, and cameras deployed in vibration- and user-intensive environments. Consistent integration of the ESD7C3.3DT5G in such environments has demonstrated clear reductions in field failure attributable to transient-induced latch-up or component degradation, highlighting its reliability under rigorous conditions.
A core insight for engineering practice lies in preemptive selection of protection devices explicitly tailored to the application’s electrical and spatial constraints. In products where PCB space is traded off for functionality, the ESD7C3.3DT5G’s small outline not only enables coverage density but also facilitates compliance with stringent EMC and ESD immunity standards. Moreover, its negligible parasitic loading supports signal preservation in applications ranging from 5G edge modules to compact sensor nodes, underscoring the device’s versatility across evolving next-generation system designs.
Integrating the ESD7C3.3DT5G in the early schematic and layout stages consistently affords design teams greater latitude in meeting certification targets, mitigating board re-spin risk linked to inadequate ESD protection post-prototyping. The result is accelerated design cycles and enhanced end-system reliability, aligning with the overarching demands of high-integration, safety-critical electronics.
Potential Equivalent/Replacement Models for the ESD7C3.3DT5G
When evaluating alternatives to the ESD7C3.3DT5G ESD protection diode, the analysis must begin at the device physics and packaging level. The ESD7C3.3DT5G is distinguished by its low capacitance and fast response, implemented in a SOT-723 miniature package. These technical attributes are critical in high-speed data lines, as they directly affect signal integrity and minimization of parasitic loading. At this level, the capacitance, reverse standoff voltage (VRWM), and dynamic clamping performance under IEC61000-4-2 stress conditions represent the core parameters determining device selection.
Candidates from the same onsemi ESD7C and SZESD7C series inherently offer compatibility in pinout and mechanical outline, which facilitates layout continuity and BOM consolidation. For automotive applications, SZESD7C series devices deliver AEC-Q101 qualification, addressing stringent reliability criteria for temperature cycling, thermal shock, and humidity bias. Appropriately selected, these series address scenarios ranging from mobile handsets to exposed module interfaces, enabling robust design without excessive redesign barriers. However, careful attention must be paid to the standoff voltage range—substitution decisions require precise matching to the protected circuit’s normal operating voltage envelope, preventing unintended leakage or insufficient suppression.
Beyond direct family replacements, equivalent TVS diodes from major vendors such as Nexperia, Vishay, or Toshiba, featuring matching SOT-723 form factor and comparable electrical profiles, can be considered. The evaluation process should focus on side-by-side comparison of total capacitance, maximum clamping voltage, leakage current, and bidirectionality, cross-referenced with the application's bandwidth and ESD exposure profile. Devices with overly high capacitance, for instance, undermine high-speed USB or HDMI performance, while insufficient clamping strength exposes downstream ICs to latent damage. During bench validation, engineers have tracked variations in insertion loss and eye diagram clarity across multiple replacement candidates—subtle deviations in package internal structure or die design can appear as statistically significant jitter or amplitude degradation in high-frequency links.
Mechanical integration cannot be divorced from electrical equivalence. The SOT-723 footprint, known for its board space efficiency, imposes strict tolerances on pick-and-place assembly and solder joint reliability. Slight mismatches in package dimensions or coplanarity may trigger reflow issues or enhance susceptibility to solder tombstoning during high-speed production. Verifying land pattern conformity and ensuring package wetting compatibility with current reflow profiles must be integral to the replacement qualification routine.
At the system level, meeting ESD immunity ratings such as ±8kV contact and ±15kV air discharge is non-negotiable. Laboratory characterization frequently reveals that subtle disparities in response time or clamping effectiveness become critical under repeated strike conditions. Integrating real-world test feedback with datasheet comparison uncovers nuances rarely documented—such as transient recovery behavior and long-term leakage stability following multiple ESD events.
A layered selection procedure—distilling device physics, package integrity, and system-level robustness—enables high-confidence deployment of equivalent or upgraded ESD protection. Informed by practical integration experience and deep correlation of application-specific constraints with core device attributes, optimal choices advance both board reliability and production yield. An optimal strategy in ESD protection sourcing, therefore, extends beyond datasheet matching to holistic fitment within electrical, mechanical, and assembly domains, ensuring seamless system performance across varying operational and environmental stressors.
Conclusion
Selecting the ESD7C3.3DT5G diode for system-level ESD protection responds directly to the growing need for both compactness and signal fidelity in high-density electronic designs. This device leverages advanced silicon process technology to deliver sub-nanosecond response times, which is critical for safeguarding high-speed signal interfaces against transient discharges. By clamping surge voltages to safe levels in microseconds, the ESD7C3.3DT5G protects sensitive IC nodes without introducing detrimental loading or distortion—a frequent concern with legacy protection schemes in low-voltage differential signaling environments.
In mechanical terms, the minimal SOD-523 package profile supports aggressive PCB real estate optimization and alleviates routing constraints in densely packed layouts. This advantage proves decisive within portable consumer electronics, where allocation for discrete ESD components is typically constrained to sub-millimeter outlines. Further, low capacitance—under 0.5 pF—ensures that the diode can be placed directly on high-frequency data lines, such as USB, HDMI, or automotive data buses, without degrading edge rates or increasing signal jitter, traits verified in both lab waveforms and cross-channel eye diagram testing.
From a reliability perspective, the ESD7C3.3DT5G attains IEC 61000-4-2 Level 4 compliance, meaning designs can consistently absorb ±15 kV air and ±8 kV contact ESD strikes. Experience in automotive and industrial modules demonstrates that such robustness extends beyond new product introduction; long-term field performance shows notably reduced warranty returns linked to ESD-related latent failures. Selection of this diode thus streamlines the compliance path for regulatory certifications and reduces the need for over-engineering at the board level.
A core insight underlying the adoption of the ESD7C3.3DT5G is the synergy between electrical performance and form factor. Unlike generic clamping components, this TVS diode forms an enabling layer in next-generation electronics by supporting escalating demands for operational reliability amid tighter spatial budgets and harsher EMI environments. Aligning package, capacitance, clamping voltage, and surge capability directly with system design goals ensures that the ESD7C3.3DT5G operates not merely as a discrete add-on but as an integrated mechanism safeguarding the functional integrity and longevity of modern circuitry across a spectrum of deployment scenarios.
