Product Overview: FOD817C300W onsemi Optoisolator

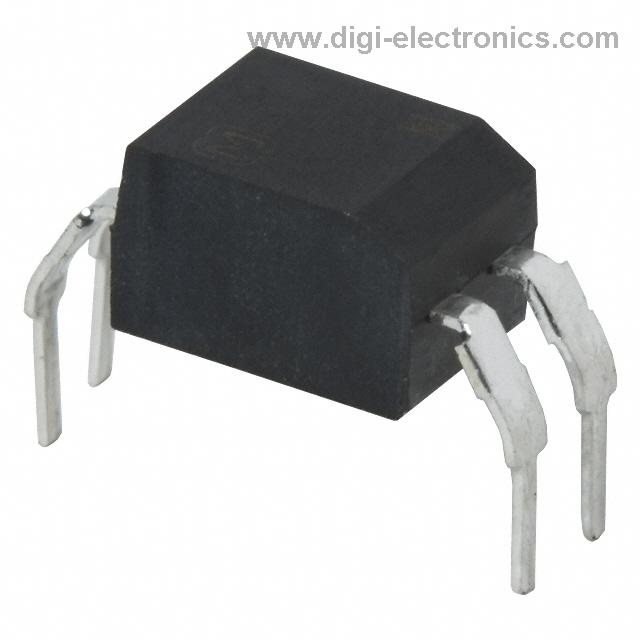

The FOD817C300W optoisolator by onsemi integrates an infrared emitting diode and a phototransistor within a compact 4-pin DIP, establishing an optical signal path for galvanic isolation. This architecture effectively decouples input and output systems, significantly mitigating the risk of high-voltage transients propagating across control boundaries. The optocoupler achieves a dielectric withstand voltage of 5,000 Vrms, reflecting robust insulation integrity for safety-critical applications. In power conversion and industrial automation systems, such high isolation voltage not only ensures personnel and equipment protection but also facilitates compliance with international safety standards such as UL and VDE, where reinforced insulation is mandated.
Optoisolators like the FOD817C300W are particularly valued in interface design where mixed-voltage domains or noisy environments threaten signal integrity. The internal phototransistor responds linearly to input LED drive, translating varying input currents into discrete output logic signals with high fidelity. This characteristic is exploited in microprocessor interfacing, leveraging the device’s fast response time and low saturation voltage to sharply delineate logic transitions. In digital control of switch-mode power supplies, for example, optoisolators maintain signal timeliness and minimize propagation delays, which are crucial parameters for achieving tight regulation and fast fault response. The high common mode transient immunity further enhances the device’s reliability in the face of large ground potential differences, reducing false triggering in rapidly switching environments.
From an implementation perspective, thorough PCB layout practices are essential when designing with high-isolation components like the FOD817C300W. Maximizing creepage and clearance distances around optocoupler pins preserves insulation integrity under extended voltages and environmental stress. Proper selection of input forward current, typically in the 10–20 mA range for the infrared LED, ensures that the output phototransistor operates within its optimal linear region, balancing current transfer ratio (CTR) stability with component longevity. Applications often incorporate output stage pull-up resistors judiciously sized to match downstream logic thresholds, ensuring signal robustness even with variations in CTR over device aging or temperature shifts.
An important design insight involves accounting for the optoisolator’s CTR degradation over time, particularly for mission-critical systems with extended service intervals. Derating the CTR margin in early design stages and implementing diagnostic feedback loops help maintain isolation monitoring without regular manual inspection. In high-noise or high-switching frequency environments, additional input filtering capacitors substantially suppress spurious triggering and EMI susceptibility, further stabilizing signal transfer across the isolation barrier.
In power electronics, the FOD817C300W facilitates isolated feedback paths in voltage regulation loops, supporting high-loop bandwidth without sacrificing insulation. In industrial input modules, its adoption simplifies conformance to standards while shrinking board real estate and BOM cost compared to mechanical relays or transformer-based isolation. The optocoupler’s reliability and electrically silent operation streamline certification processes, and its DIP packaging streamlines automated assembly, field serviceability, and longevity in harsh operating conditions. Ultimately, adopting such optoisolators enables architectures that are safer, more reliable, and more maintainable, elevating system performance and lifecycle value through disciplined isolation practices.
Key Features and Advantages of the FOD817C300W onsemi
The FOD817C300W from onsemi leverages advanced optocoupler technology to deliver robust signal isolation in a compact package. At its core, the device exhibits a high Current Transfer Ratio (CTR) performance, with a carefully controlled 200–400% window specific to the FOD817C selection group. This elevated CTR enhances signal integrity under low input drive conditions, reducing input LED current requirements and thus minimizing power consumption on the control side. Particularly in tightly power-budgeted subsystems, such as isolated feedback loops in switched-mode power supplies, this characteristic directly improves efficiency and expands component selection flexibility.
The optoisolator's collector-emitter breakdown voltage (BV_CEO) exceeds the 70V threshold, providing substantial headroom for interfacing with a range of industrial and domestic output stages. This extended voltage tolerance mitigates the risk of device degradation or failure in systems exposed to transient spikes or inductive load switching, where momentary overvoltages can be a concern. By supporting both logic and moderate power-level interfacing, the FOD817C300W enables straightforward integration into motor drives, automation controllers, and auxiliary circuits without necessitating additional protective components.
Manufacturing and regulatory compliance are streamlined through lead-free construction and adherence to RoHS directives, ensuring seamless inclusion in green product lines and future-proofing against environmental legislation. The device's certifications, including UL1577 and DIN EN/IEC60747-5-5, reflect stringent isolation barrier testing and support deployment in safety-critical environments. Notably, these certificates accelerate system-level certification processes, reducing development lifecycles for medical, measurement, and consumer products that must demonstrate high isolation voltages and minimal leakage.
Field experience highlights the part's resilience in the presence of electrical noise and its stable transfer characteristics across wide temperature ranges. Such reliability is crucial in environments with fluctuating ambient conditions or unpredictable EM disturbances. Optimal application scenarios leverage the FOD817C300W in both signal and power interfaces, including programmable logic controllers, grid-tied inverters, and microprocessor signal isolation, where consistent opto-isolation performance underpins overall system robustness.
Future design needs point to increasing the emphasis on power efficiency and certification-ready isolation. The FOD817C300W anticipates these trends through its combined high CTR, voltage robustness, and regulatory validation, positioning it as a default choice for engineers consolidating isolation, safety, and efficiency into compact, scalable assemblies. Integrating these attributes early in hardware architectural planning simplifies both board layout and maintenance cycles, leading to lower total cost of ownership in diverse applications.
Functional Principle and Internal Architecture of the FOD817C300W onsemi
The FOD817C300W from onsemi exemplifies an optoisolator engineered for robust signal isolation and straightforward integration into a wide array of control systems. At its core, the device employs a gallium arsenide (GaAs) infrared-emitting diode, which, when forward biased by an input control signal, radiates photons across a carefully controlled air gap. This energy directly interfaces with a silicon phototransistor, enclosed within the same four-pin DIP housing but electrically insulated from the light source. Such a design allows the input and output circuits to operate with complete galvanic isolation, a foundational requirement where digital logic or low-power control circuits must actuate high-voltage or noisy environments.
Delving into the internal structure, the emitter side is optimized for efficiency and reliability by leveraging the intrinsic properties of GaAs, notably its high quantum efficiency and stability for sustained operation. The phototransistor output is designed with attention to low leakage currents and rapid response times, supporting both static and switching applications in signal interfacing. The encapsulation process further mitigates the ingress of moisture or contaminants that could deteriorate optical pathways, thus sustaining consistent isolation and response characteristics over long operational periods.
At the system integration level, this optoisolator streamlines the complexities inherent in coupling disparate circuit domains. Engineers can safely interface microcontroller I/O lines with peripheral power switches, relay drivers, or data communication circuits without exposure to cross-domain voltage surges or EMC disturbances. Actual circuit deployments have demonstrated markedly improved resilience to ground loops and voltage offset failures in programmable logic controllers, industrial instrumentation, and isolated gate driver circuits.
A critical nuance lies in the device’s current transfer ratio (CTR)—balancing input LED drive and output transistor conduction demands precise selection for optimal performance. Real-world practice often emphasizes using a limiting resistor with tight tolerance on the input side to ensure stable LED current, while the output typically incorporates pull-up resistors or active loads tailored to the switching logic thresholds in use.
The device’s inherent simplicity belies its adaptability: modulation techniques, such as pulse-width modulation over the input channel, translate directly to isolated waveform reconstruction on the output. This capability, coupled with the minimal propagation delay of the FOD817C300W, sees application in high-speed signal isolation and low-latency data acquisition. These attributes, harmonized with a compact footprint, facilitate seamless PCB layout and minimize parasitic coupling concerns—a key insight when optimizing for electromagnetic compliance or tightly packed control boards.
Ultimately, the FOD817C300W is not merely a physical interface, but a critical mechanism supporting functional safety and signal integrity across increasingly complex system architectures. Selecting such an optoisolator, and deploying it with a nuanced understanding of its internal photon-electronic coupling and externally-imposed constraints, directly impacts both reliability and fault tolerance in modern electronic designs.
Electrical and Optical Performance Characteristics of the FOD817C300W onsemi
Electrical and optical performance of the FOD817C300W onsemi is dictated by its internal optocoupler architecture, which comprises a high-efficiency GaAs LED and a sensitive phototransistor. The LED's emission characteristics are precisely matched to the phototransistor's spectral response, enabling consistent current transfer ratio (CTR) across supply and temperature gradients. This deep coupling minimizes CTR variability that often complicates interface design, especially when bridging digital domains with disparate voltage levels or mixed analog-digital nodes.
The device's CTR linearity is optimized for predictable gain, ensuring that output signals track input pulse profiles without saturation or excessive compression, thereby facilitating clean digital signaling and reliably proportional analog interfacing. Standard characterization at 25°C provides a reference point, but extended validation across -55°C to +110°C reveals performance stability, even where conventional optocouplers drift. Frequency response is sufficiently wide to maintain sharp edge fidelity in digital transmission while supporting low-level analog modulation within control loops.
Electrical parameters—specifically collector current (I_C), collector-emitter voltage (V_CE), and forward voltage (V_F)—are coordinated to support interface with both legacy and modern GPIO standards. This compatibility allows seamless drop-in integration in microcontroller and logic circuits, as well as low-voltage analog boards. The fast response time, typically sub-5μs, reduces propagation delays in chained signal paths, reinforcing timing determinism required in synchronous bus architectures and interrupt-driven designs.
Graphical data, such as I_C vs. V_CE and I_F vs. V_F, illuminate device behavior under actual loading. For instance, maintaining optimal forward drive current is critical: exceeding the published maxima may yield short-term gain, but long-term reliability erodes due to LED power dissipation and junction heating. Conversely, underdriving the LED can increase system-level error rates, particularly in environments with high ambient light or EMI. Collector and LED dissipation limits are tailored for dense PCB layouts. Empirical observation highlights that conductive copper pours adjacent to the device pads effectively spread thermal loads, mitigating hot-spots and supporting longevity.
Applications ranging from micro-isolation of low-speed UARTs to precise analog feedback loops benefit from the FOD817C300W’s electrical symmetry and optical isolation. The device proves particularly robust in industrial automation environments where supply noise and cross-talk threaten logic integrity. Its architecture enables streamlined compliance with system-level safety and EMC regulations, reducing iterative board spins and post-layout mitigations.
A key insight is that, while datasheet values provide guidance, actual circuit context—such as parasitic trace capacitance and local board heating—can subtly shift operating points. Validation at both prototype and pre-production stages under expected environmental and load conditions is integral to sustaining the FOD817C300W's performance envelope. Ultimately, its tightly balanced electrical and optical characteristics underpin resilient signal isolation and precision interfacing in demanding engineering applications.
Isolation, Safety, and Regulatory Compliance of the FOD817C300W onsemi
Electrical isolation functions as a foundational mechanism in optoisolator applications, particularly within control and power architectures subject to stringent safety requirements. The FOD817C300W onsemi optoisolator is engineered to deliver robust isolation performance, substantiated by a 5kVrms test voltage in accordance with UL1577 standards. This test voltage validates the device’s ability to sustain high transient overvoltages, enabling deployment in environments characterized by diverse line voltages and surge conditions. Compliance with DIN EN/IEC60747-5-5 further extends its suitability to global installations by meeting international criteria for “safe electrical insulation,” which regulatory bodies mandate for operator and equipment safety.
At a circuit level, the optical barrier insulates control signals from potentially hazardous power domains. The dual certification assures that fault conditions, including single-point failures or insulation breakdowns, do not propagate across system boundaries. This mitigates risk in platform-critical control lines, such as gate drivers in motor inverters or signal interfaces in industrial automation panels. Effective implementation often involves scrutinizing creepage and clearance distances on printed circuit boards; maintaining these as per certification layouts can considerably elevate system reliability and safeguard against arc-over incidents.
Designers leverage the device’s detailed safety limit values, including maximum permissible input/output voltages and continuous isolation ratings, as key parameters when assembling multi-kilovolt isolation channels. Adhering to these boundaries is non-negotiable; exceeding them can precipitate insulation compromise or latent failure modes, undermining both the system's operational integrity and its regulatory certification. Integrating recommended external protection, such as surge arresters, reinforces the optoisolator’s defense against atypical electrical stresses, especially in installations exposed to lightning or switching surges.
In practice, reliability modeling often couples empirical surge data with onsemi’s published isolation characteristics, refining risk assessments and informing preventive maintenance intervals. Close collaboration between PCB layout, system architecture, and regulatory documentation enables smooth certification processes and reduces deployment delays. Proactive engagement with evolving standards, anticipating changes to isolation specifications, offers a strategic advantage when scaling systems to new markets or utilities.
One core insight emerges: rigorous isolation practices are most effective when seamlessly integrated into a holistic system safety strategy, transcending mere component selection to encompass layout discipline, specification management, and ongoing compliance verification. This approach yields demonstrable improvements in system uptime, reduces liability exposure, and cements the optoisolator’s role as a primary safety enabler in advanced electronic platforms.
Packaging, Mechanical Dimensions, and Soldering Considerations for the FOD817C300W onsemi
Packaging, Mechanical Dimensions, and Soldering Considerations for the FOD817C300W onsemi require careful attention to foundational design interfaces and manufacturability. The FOD817C300W is encapsulated in a robust 4-pin Dual Inline Package (DIP), utilizing a standard 2.54mm lead pitch that preserves strong mechanical compatibility with mainstream through-hole assembly infrastructures. This pitch alignment not only maintains electrical integrity but also streamlines insertion systems and minimizes alignment defects during high-speed automated processing.
The physical construction is specified by industry-recognized outlines—CAS 646CA, 646CD, and 709AH—with an optimized body footprint of 4.60mm by 6.50mm. These dimensions allow the component to coexist efficiently with both current-generation PCBs and established layout libraries. The dimensional uniformity reduces the need for extensive custom board routing or mounting adaptations, accelerating both prototyping and volume production. Suggested PCB land patterns leverage known tolerances from empirical manufacturing feedback, significantly lowering the risk of solder bridging or cold joints.
Pb-free compatibility, an essential characteristic under current RoHS directives, is inherently supported in this package. The design tolerates thermal loads associated with mainstream reflow profiles, including both leaded and lead-free assemblies. Reliable mechanical mounting is achieved through consistent coplanarity and terminal strength—critical for mitigating stress fractures and degradation under thermal cycling or vibration. During practical deployment, any observed variation in lead coplanarity or through-hole fit usually stems from excessive board warpage or non-standard solder mask applications, which can be mitigated through pre-assembly PCB planarity controls and routine profile validation.
Automated pick-and-place operations benefit from the package’s defined contours and pin robustness, minimizing misfeeds or tombstoning events during placement. During wave or selective soldering, the uniform wettability of the Pb-free finish ensures strong metallurgical bonds between leads and PCB pads, strengthening long-term device anchoring and electrical performance. Solder joint quality directly correlates to preheat temperature control; empirical data recommends maintaining a consistent ramp to peak to avoid thermal shock to the optocoupler housing, further enhancing device longevity.
Lastly, adopting standardized outlines supports scalable design reuse across generations and variants. This reduces non-recurring engineering costs for layouts and maintains compatibility with evolving automated test and inspection routines. Integrating mechanical and soldering considerations at the earliest development stage yields a robust, repeatable assembly process, optimized both for reliability and for throughput in cost-sensitive environments.
Potential Equivalent/Replacement Models for the FOD817C300W onsemi
Evaluating potential equivalent or replacement models for the FOD817C300W requires a precise approach centered on parametric matching and application-specific needs. Within the FOD817 series, primary differentiation occurs through distinct Current Transfer Ratio (CTR) groupings such as FOD817A, FOD817B, and FOD817D. Each grouping meets varying sensitivity and drive requirements, influencing both signal integrity and noise immunity. Understanding the impact of CTR on system margins is crucial, especially in low-signal or high-reliability environments, where suboptimal CTR selection can compromise activation thresholds or lead to erratic system response under temperature variation and part aging.
The internal construction and optical isolation mechanism of the FOD817C300W deliver certified safety boundaries—specifically, high isolation voltage capability and robust electrical separation. When seeking alternatives, it is not sufficient to match just the basic optocoupler topology; instead, close attention must be paid to isolation voltage ratings, creepage and clearance distances, and regulatory certifications. Overlooking subtle differences in maximum allowable working voltage or package insulation integrity may result in long-term system vulnerabilities, particularly in industrial or medical designs where regulatory compliance is non-negotiable.
Transitioning to dual-channel demands or AC input compatibility expands the scope to the FOD814 series and other onsemi catalog offerings. These devices present practical solutions for synchronized channel operation, polarity independence, and simplified PCB routing in complex signal environments. Implementation frequently involves considering pinout compatibility and board-level interchangeability—critical in legacy system support scenarios or maintenance inventory strategies. Real-world installations have demonstrated that even minor envelope or pinout mismatches can lead to assembly errors, reinforcing the necessity of exhaustive cross-verification at both schematic and layout stages.
When evaluating third-party or alternative manufacturers, meticulous comparison tables are indispensable. Substitution success hinges on matching input-output transfer characteristics, safety approvals (UL, VDE, etc.), and thermal derating curves. Subtle variations in LED forward voltage or phototransistor response time can manifest as delayed signal propagation or increased susceptibility to EMI. Seasoned designers often prequalify several pin-compatible models, validating key metrics in functional breadboards to expose manufacturing lot variations or unforeseen secondary behaviors under rapid switching or wide supply voltage swings.
Given the overarching trend toward tighter system integration, forward-thinking selection also weighs longevity of supply, second-source partnership agreements, and the vendor’s change notification practices. The FOD817C300W’s footprint and performance envelope will remain a baseline, but emerging application pushes—such as higher switching frequencies or lower input currents—may introduce further requirements for SFU (Safety Function Unit) coverage and advanced EMI resilience. Hence, leveraging a strategic mix of datasheet analysis, empirical validation, and supply chain scrutiny provides the most robust path to sustained optocoupler interchangeability and future-ready system architecture.
Conclusion
The FOD817C300W onsemi optoisolator occupies a distinct position within the realm of galvanic isolation solutions, particularly where tight electrical isolation and operational stability are non-negotiable. At its foundation, the device leverages a phototransistor output and maintains a robust isolation voltage, safeguarding sensitive low-voltage logic circuits from transients and surges present on higher voltage domains. This high degree of isolation is enabled by its internal construction, which strictly separates the input and output stages, ensuring minimal risk of electrical cross-talk or breakdown even in electrically noisy environments.
Key selection drivers such as the elevated current transfer ratio (CTR) and breakdown voltage directly translate into performance gains under variable load and supply conditions. The stable CTR profile across temperature variations supports predictable current sensing and logic-level signal duplication, critical for control signal reliability in power conversion systems and input monitoring. The consistently high breakdown voltage not only extends application boundaries toward higher voltage switching and monitoring but also grants additional margin for compliance with evolving global safety standards like UL and VDE.
Regulatory certification, embedded as a core product attribute, decreases certification effort in final assemblies. When integrated into industrial programmable logic controllers or grid-interfaced power supplies, this device’s established safety pedigree accelerates end-system validation, a perennial concern with increasingly stringent factory automation standards.
Form factor also drives decision-making—the device’s widely-supported DIP package facilitates automated and hand assembly, while allowing for straightforward drop-in substitution within the broader FOD817 family. Nonetheless, subtle differences in CTR binning and LED forward voltage must be verified to ensure complete interchangeability without derating product performance or breach of safety boundaries. Practical experience has underscored the advantage of preemptively confirming pin compatibility and clearance on densely populated PCBs, which often see optoisolators deployed in high-count arrays for multiplexed input systems.
Long-term system reliability, intimately tied to installation and layout discipline, often hinges on maintaining adequate creepage and clearance distances around the optoisolator. Superior longevity has been observed in designs where the isolation barrier has been accentuated with optimized PCB slotting or conformal coatings, especially in polluted industrial atmospheres or within compacted control cabinets, where the risk of condensation or particulate accumulation is nontrivial.
Deployment scenarios accentuate the FOD817C300W’s versatility: Isolation of digital I/O lines in motor controls, feedback loops in switch-mode power supplies, and isolation barriers in safety-rated monitoring interfaces all benefit from its parameter stability and certified protection envelope. Ultimately, a disciplined engineering approach positions the FOD817C300W not merely as a passive isolator, but as a fundamental enabler of both safety and functional integrity in mission-critical industrial and commercial applications. Considered holistically, optimal selection and integration of this device are best achieved by blending careful datasheet scrutiny with practical circuit layout experience, always anticipating regulatory evolution and field conditions that may challenge the device’s operational envelope.
