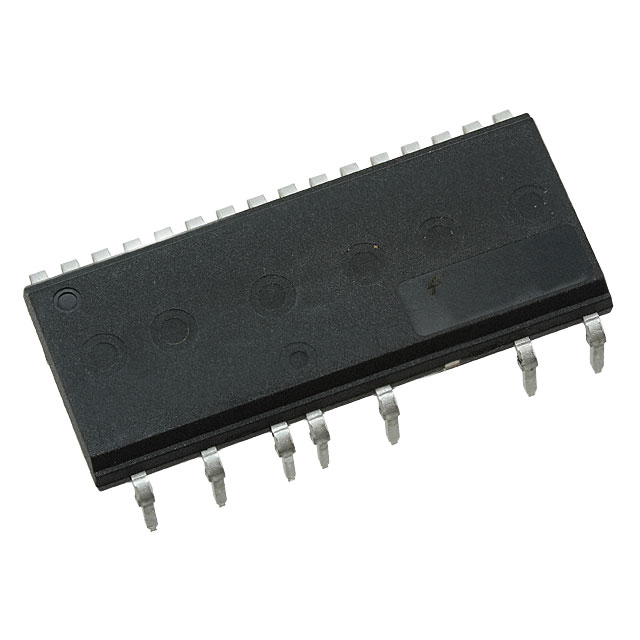

Product Overview: FSBB10CH120D Motion SPM® 3 Series by ON Semiconductor
The FSBB10CH120D Motion SPM® 3 Series module stands as a compact, high-voltage, integrated solution tailored for three-phase inverter output stages within advanced motor control architectures. Central to its design is the 1200 V/10 A IGBT array, which forms the backbone for reliable high-frequency switching. By incorporating optimized gate drivers and comprehensive protection circuitry directly into the 27-pin PowerDIP package, parasitic inductance and interconnect complexity are reduced, directly enhancing switching performance and system robustness.
Delving into its internal configuration, the module’s co-packaged gate drivers control and synchronize the IGBT switching events, delivering precise rise and fall time management. This translates to minimized switching losses and heat generation—a direct benefit for thermal stability in dense enclosures. The inclusion of fault detection, under-voltage lockout, and overcurrent protections extends beyond IGBT self-preservation. These features enable rapid fault isolation and recovery, crucial for ensuring operational integrity in variable load industrial applications such as AC induction, BLDC, and PMSM drives.
From a system integration perspective, the PowerDIP package offers significant board space reduction without compromising creepage and clearance standards necessary for 1200 V operation. This footprint efficiency supports denser power stage layouts and lowers the complexity of PCB routing, streamlining the EMC filter design. These factors combine to facilitate compact, cost-effective power conversion solutions, particularly where PCB real estate and reliability are at a premium.
In application, the module’s optimized electrical interface simplifies gate driver design, decoupling the need for discrete, matching external driver circuits. This drastically reduces engineering development time, as compatible motor drive firmware can leverage the module’s uniform switching characteristics. Field deployments show that the built-in fault signaling and shutdown mechanisms accelerate diagnosis of fault conditions, supporting predictive maintenance and lowering system downtime. Overshoot and ringing associated with long gate connections are mitigated by the integrated configuration, reflected in observable improvements in EMI performance under rapid switching test regimes.
A noteworthy insight lies in the alignment between the module’s internal design and the requirements of industrial motor control—where high reliability, maintainability, and efficiency converge. The SPM® 3 architecture anticipates evolving standards, offering a developmental baseline that supports smooth transitions to future system upgrades. Embedded protections and optimized switching diminish the traditional compromise between power density and fault tolerance, enabling scaling of inverter designs without sacrificing safety margins.
Overall, the FSBB10CH120D’s engineering-driven integration sets a benchmark for power module deployment in advanced motor drives, merging a compact form factor with the electrical resilience demanded by modern industrial environments. This synergy of robust protection, performance, and streamlined assembly positions the module well for scenarios where precise control and long-term operational security are mandatory.
Key Features and Capabilities of FSBB10CH120D Motion SPM® 3 Series
FSBB10CH120D Motion SPM® 3 Series embodies a high-integration solution specifically tailored for modern motor drive applications. Its foundational engineering lies in the adoption of short-circuit-rated, low-loss IGBT technology, which directly impacts energy efficiency and device resilience under demanding load conditions. These IGBTs are carefully selected for optimal switching performance, minimizing conduction and switching losses, thus reducing the overall heat generation within the power stage. Supplementing the thermal performance is the Al₂O₃ direct-bond copper (DBC) substrate, engineered for low thermal resistance. This substrate accelerates heat dissipation from semiconductor junctions to the heatsink, ensuring stable operation even under high power cycles and variable industrial workloads.
The device’s system integration is further enhanced by compliance with UL1557 safety standards, with tested isolation at 2500 Vrms for one minute. Such insulation performance is essential in electrically noisy environments, where transient voltages and ground loops frequently threaten system integrity. By integrating certified high-voltage insulation, the module streamlines regulatory approval cycles and reduces the need for external isolation barriers.
A distinctive structural advantage is found in the module's dedicated Vs pins and separate open-emitter pins for each low-side IGBT. This configuration simplifies PCB routing, minimizing loop inductance—a frequent cause of spurious switching and electromagnetic interference. Precise three-phase current sensing is possible through the independent open-emitter paths, supporting advanced control techniques such as vector control and real-time field-oriented algorithms. These capabilities are instrumental where high torque accuracy and efficient dynamic response are required, such as in servo drives or robotics.
Further system simplification is achieved by requiring only a single-grounded power supply, significantly easing the challenge of managing return currents across complex control systems. The embedded low-voltage IC integrates temperature sensing, providing direct die-level feedback. This built-in feature ensures real-time diagnostics, permitting predictive maintenance and avoiding unexpected thermal shutdowns—a frequent reliability bottleneck in high-density inverter applications.
In practical deployment, leveraging the module's architecture reduces mechanical footprint and bill of materials by eliminating the need for discrete current sensors and additional PCB layers dedicated to isolation. Field experiences indicate that successful PCB designs benefit from strict attention to copper thickness and optimized thermal paths aligned with the DBC’s characteristics, maximizing the module’s thermal cycling longevity. Integrating the open-emitter configuration has led to noticeable improvements in current sampling accuracy and lower noise susceptibility during fast switching events, particularly when paired with precision op-amps and well-defined ground return paths.
The synthesis of short-circuit-rated IGBTs, low-resistance thermal substrates, and intelligent pin assignment positions FSBB10CH120D Motion SPM® 3 Series as a platform adaptable to various industrial inverter topologies. Its features yield tangible improvements in lifecycle reliability, system compactness, and diagnostic granularity, embedding robust motor control at the core of energy-efficient and fault-tolerant drives.
Application Scenarios for FSBB10CH120D Motion SPM® 3 Series
Embedded within the architecture of the FSBB10CH120D Motion SPM® 3 Series are design decisions driven by the rigorous demands of industrial AC motor control in the 400V class. The module integrates gate drivers, protection circuits, and precise current sensing directly with power switches, resulting in a monolithic inverter output stage that simplifies complex motor drive topologies. This integration directly addresses the fault tolerance requirements inherent in high-reliability automation—overcurrent, undervoltage lockout, and thermal shutdown are managed at the hardware level, reducing reliance on external monitoring and minimizing system response latency.
By consolidating protection and drive intelligence, FSBB10CH120D enables robust operation of AC induction motors, brushless DC motors, and permanent magnet synchronous motors, significantly improving design density and lowering bill-of-materials complexity. This facilitates rapid prototyping for conveyor systems, robotic arms, and HVAC compressors, which demand tight control loops and high dynamic range. A properly engineered FSBB10CH120D-based inverter demonstrates stable behavior under fluctuating load and line conditions, even in noisy environments typical of factory floors. The module’s gate drive optimization mitigates switching losses and electromagnetic interference, providing steady torque delivery in critical automation scenarios.
Leveraging the current sensing features embedded within FSBB10CH120D allows fine-tuned feedback for vector control algorithms, crucial for applications requiring precise speed and position regulation. Adaptive current monitoring not only enhances safety by preempting fault conditions but also supports predictive maintenance strategies, extending the operational lifetime of drive systems. The built-in protection mechanisms—when mapped to diagnostic routines—offer real-time data for system health assessments, streamlining troubleshooting during commissioning and field deployment.
One unique advantage, often understated, is the reduction of design cycles enabled by such an integrated solution. Instead of architecting discrete circuitry for drive, sensing, and protection, the FSBB10CH120D’s footprint makes iterative product development more agile, lowering time-to-market for automated machinery. Performance endurance in hostile environments—such as high ambient temperatures and power transients—is validated through the module’s comprehensive hardware safeguards, ensuring sustained uptime in mission-critical installations.
From a practical perspective, coupling FSBB10CH120D with modern microcontroller platforms yields cohesive motor control stacks that can be scaled across machine types. The module’s predictable response characteristics help achieve rapid PID tuning and parameter optimization on-site, often reducing startup time and field adjustments. Its application flexibility, proven in conveyor automation and climate-control compressor drives, bridges the gap between standardized industrial requirements and project-specific challenges, underscoring its value in next-generation motion control engineering.
Integrated Power and Protection Functions of FSBB10CH120D Motion SPM® 3 Series
The FSBB10CH120D Motion SPM® 3 Series integrates core power switching and comprehensive protection within a compact module, tailored for three-phase inverter applications in industrial automation. Central to its architecture is a 1200 V, 10 A IGBT inverter topology, enabling resilient high-voltage operation and efficient energy transfer. The IGBT bridges leverage intelligent gate driver (IGD) circuits featuring high-voltage isolation, which ensures galvanic separation between control and power domains, protecting low-voltage controllers from transient spikes and permitting safe operation in harsh electrified environments.
High-speed level shifting, embedded within the gate drivers, minimizes propagation delay, supporting precise pulse modulation even under rapidly changing load conditions. This responsiveness is critical for motor control tasks demanding sub-microsecond switching alignment to optimize torque and energy efficiency. Input logic conforms directly to 3.3 V and 5 V standards, eliminating interface converters and reducing system-level noise susceptibility due to the use of Schmitt-triggered buffers. This design choice enables consistent signal recognition despite typical industrial EMI disturbances, a frequent source of erratic system behavior and hard-to-diagnose faults in legacy interfaces.
Protection circuitry is deeply integrated at both device and system levels. Under-voltage lockout (UVLO) functions monitor gate drive voltages on both high and low sides, immediately disabling the IGBT outputs if the drive supply falls below a safe threshold. This prevents partial turn-on scenarios, which can lead to destructive device heating or shoot-through events across multiple phases. Low-side IGBT short-circuit protection reacts decisively to overcurrent incidents by shutting down the affected leg and broadcasting a fault through a dedicated output. The embedded thermal sensor within the module's LVIC enables real-time temperature tracking, allowing rapid thermal derating or shutdown when preset limits are breached—a distinct advantage for reliability in fanless or high-duty cycle enclosures.
By providing separate negative terminals for each inverter phase, the FSBB10CH120D enables independent current sensing and high-side level shifting, facilitating implementation of advanced vector control algorithms. This detail enhances phase current feedback accuracy and simplifies the adoption of sophisticated field-oriented control or direct torque control strategies, commonly required in high-performance servo drives and variable frequency drives. The modular nature and reduced component count accelerate board layouts, while the robust integration and diagnostic outputs increase mean time between failures and streamline maintenance processes.
In field implementations, robust protection and precise control interfaces have proven essential for minimizing downtime attributed to transient faults, miswiring, or harsh environmental factors. The design’s focus on reliable operation across voltage domains, coupled with real-time protective actions, supports deployment in mission-critical automation roles where failure tolerance and safety margins cannot be compromised. Selective phase isolation and accurate diagnostics extend system longevity and reduce unscheduled interventions, highlighting the importance of integrated, application-focused module design for scalable industrial systems.
Electrical and Thermal Characteristics of FSBB10CH120D Motion SPM® 3 Series
The FSBB10CH120D Motion SPM® 3 Series exhibits distinctive electrical and thermal characteristics tailored for high-performance motor drive applications. From an electrical standpoint, the module’s gate drive and logic interface are optimized to minimize propagation delay and ensure precise turn-on and turn-off times. These characteristics support refined PWM control schemes, enabling high efficiency and low loss operation even with rapid duty cycle changes. The availability of granular timing data facilitates fine-tuning to match varied motor profiles; in practical deployment, iterative adjustment of dead time and bootstrap circuitry has proven essential for mitigating shoot-through and cross-conduction events during high-frequency operation.
Thermal management is addressed by the integration of an Al₂O₃-based direct bonded copper (DBC) substrate, which forms the core of the module’s power stage. The high thermal conductivity of the Al₂O₃ DBC ensures rapid heat transfer from the die to the heatsink, effectively lowering junction temperatures under stressful load conditions. The module’s documentation provides detailed junction-to-case and case-to-heatsink thermal resistance values, which are vital for predictive thermal modeling. These parameters underpin the design of robust cooling strategies, such as forced-air and liquid-cooled systems, particularly in installations with intermittent overload or high ambient temperature. Field experience demonstrates that maintaining junction temperature below recommended thresholds, even during transient overcurrent events, is critical to preventing premature device degradation—a result that is achieved by carefully matching heat sink dimensions, interface materials, and airflow.
The rated maximum output current is conservatively specified, balancing instantaneous and RMS current limits. This approach explicitly accounts for thermal inertia and the inherent latency in temperature rise across power cycles. Real-world testing highlights that intermittent overload is manageable if the average load remains within specification, but continuous operation near the upper current threshold necessitates a thorough evaluation of thermal cycling effects and potential fatigue at the solder and substrate interfaces. A nuanced understanding of package parasitics and their influence on switching transients contributes to improved EMI management and system reliability, an often underestimated aspect when scaling motor drive power.
The FSBB10CH120D’s design thus enables accurate, simulation-driven thermal and electrical system integration for a range of application scenarios—from variable frequency drives in industrial automation to compact servo motors in robotics. The alignment between measured and simulated thermal results, observed when adhering strictly to application notes and recommended mounting techniques, underscores the importance of reference design adherence. An insight emerging from iterative bench validation is that system-level reliability is significantly enhanced when PCB layout practice prioritizes low-impedance ground returns and minimizes thermal bottlenecks at the module interface. This layered engineering, combining device specification with practical integration, ensures the realization of both component longevity and sustained high-performance operation in demanding environments.
Mechanical Characteristics and Package Considerations for FSBB10CH120D Motion SPM® 3 Series
The FSBB10CH120D Motion SPM® 3 Series exemplifies a rigorously engineered mechanical architecture tailored to withstand the demands of high-performance motor drive environments. Central to this robustness is the precise control of package mounting and surface flatness, which serve as key determinants of thermal pathway efficiency and dielectric substrate stability. Attention to substrate mechanics ensures that thermal gradients dissipate uniformly, directly influencing the operational lifespan of critical power electronics components.
Underlying mechanical integrity begins with strict adherence to the prescribed screw torque sequence. This protocol is meticulously defined to attenuate localized stresses that may arise during assembly, thereby safeguarding the ceramic substrate against microfractures and mitigating warpage of the heat sink interface. Empirical evidence shows that deviation from recommended torque values or sequence often correlates with increased risk of DBC (Direct Bonded Copper) layer fatigue and latent crack initiation, both of which degrade thermal performance and endanger long-term module reliability.
Material interactions within the package, especially at the DBC interface, pose substantial reliability challenges for motion control applications. Implementing the manufacturer's specified mounting parameters—including surface flatness tolerances and mounting order—establishes a repeatable assembly baseline, limiting thermomechanical stress concentration. In practice, close alignment with the MOD27BAREV3 dimensional drawing simplifies integration by providing reference geometry in millimeters, enabling predictable fit and clearances within compact enclosures.
Thermal management remains interconnected with mechanical execution. Any misalignment or improper installation causes uneven heat transfer, precipitating elevated junction temperatures and amplifying power cycling stress on solder joints and semiconductor dies. Best practices emphasize the verification of mounting protocol compliance—cross-referencing actual assembly conditions with device mechanical requirements—prior to commissioning. This preemptive validation has been shown to substantially reduce field failures linked to mechanical fatigue or thermal excursions.
In systems engineering contexts, direct experience demonstrates that harmonizing module mechanics with enclosure design streamlines manufacturing workflows and enhances reliability metrics over operational cycles. Application-specific insights suggest prioritizing rigid but vibration-tolerant mounting structures, using torque-limiting drivers for installation, and implementing inspection checkpoints for flatness and alignment during process qualification. These measures embed resilience at the mechanical-thermal interface, leveraging the inherent strengths of the FSBB10CH120D mechanical design to support elevated inverter responsibilities and dynamic control profiles.
A nuanced evaluation shows that even subtle package variances—such as layer thickness or mounting hole placement—can induce pronounced effects in thermomechanical performance under cyclic loading or high-speed switching regimes. Proactive collaboration between module integrators and device specifications aligns system reliability objectives with practical assembly realities, ensuring the mechanical parameters translate into quantifiable performance advantages in real-world motion applications.
Recommended Interface and Application Guidelines for FSBB10CH120D Motion SPM® 3 Series
Implementing the FSBB10CH120D Motion SPM® 3 Series in motor drive architectures requires engineering consideration of input-stage noise immunity and system-level protection mechanisms. At the signal interface, minimizing the length of input wiring critically reduces susceptibility to EMI coupling, which is especially impactful in inverter environments where high dv/dt transitions and parasitic current loops are prevalent. This wiring should maintain direct routes with optimal separation from high-power traces to suppress differential mode disturbances at the logic interface, leveraging PCB ground plane segmentation if possible.
Gate-level signal integrity relies on appropriate management of inputs; RC coupling at the device logic pins—typically with R = 100 Ω and C = 1 nF—ensures that high-frequency transients are attenuated, thereby preventing inadvertent state changes or oscillations. For the open-drain fault output, a precisely defined pull-up resistor is recommended, tuned to balance response time and current consumption, eliminating both floating logic risks and excessive bus loading on shared diagnostic lines.
Current sensing and short-circuit protection tap the performance envelope of the SPM module. The selection of shunt resistors calls for a compromise between power dissipation, thermal drift, and signal-to-noise ratio. Welding these resistors in close proximity to the sensing terminals is essential, as additional wiring inductance can introduce spurious voltage spikes, corrupting real-time overcurrent detection and leading to false triggers. Experience reveals that tweaking the RC filter time constant—positioned in the protection circuit feedback—according to board layout and power topology yields marked improvements in detection fidelity during both short overload and chronic disturbance scenarios.
The decoupling network, particularly the low-ESL capacitor banks for Vcc to GND, must occupy positions as close as feasible to the SPM power and logic supply pins. This proximity suppresses voltage ringback initiated by both load step transients and PCB trace inductance, thus preserving the SPM’s tolerance margin during fast switching events. Routing best practice dictates that shunt resistor traces remain short and paired with heavy copper, reducing inductive loop formation and thereby curtailing oscillatory transients or unwanted inter-channel coupling.
Protection against high-energy transient surges originates from circuit-level fortification. Deploying robust clamping devices such as TVS diodes or high-power zeners across control supply terminals forms the first defense line against voltage excursions resulting from grid disturbances or adjacent drive startups. In practical application, the absorption capacity and reaction time of these suppressors must be matched not only to anticipated surge energy but also to possible resonance amplitudes induced by long supply harnessing—an often overlooked factor in field installations.
Integrating these design principles reinforces module stability, mitigates latent margin erosion and significantly prolongs system lifespan, especially in demanding industrial environments. Pragmatic parameter fine-tuning, combined with precise component placement, underpins reliable operation and effective exploitation of the FSBB10CH120D’s feature set in high-performance motor control topologies. Through such layered and detail-driven implementation, one can achieve both optimum device protection and resilient, noise-immune operation, fully leveraging the SPM’s engineering potential.
Potential Equivalent/Replacement Models for FSBB10CH120D Motion SPM® 3 Series
Selecting equivalently rated or replacement modules for the FSBB10CH120D within the ON Semiconductor Motion SPM® 3 Series requires precise cross-referencing of electrical, thermal, and mechanical parameters. The FSBB10CH120D’s 1200 V, 10 A capability—coupled with its integrated protection functions—serve as the baseline for comparative analysis. The selection process hinges on an accurate understanding of module topologies, internal circuitry optimizations, and the interaction between driver stages and IGBT devices within typical inverter architectures.
Evaluating alternative Motion SPM® 3 modules involves a systematic break-down of protection feature profiles, pin-out configurations, and package compatibility. Modules such as the FSBB15CH120D (15 A, 1200 V) and FSBB10CH60 (10 A, 600 V) may appear relevant, yet subtle distinctions in gate driver design, fault diagnostic support, and thermal management must be scrutinized. In practice, datasheets and comprehensive resources like AN-9095 become critical tools for mapping the module’s operational envelope against actual application requirements—especially where undervoltage lockout thresholds, short-circuit response times, and over-temperature sensing vary across product sub-families.
From a deployment perspective, mechanical footprint constraints often drive substitution choices. PCB layouts and heatsink mounting patterns established for the FSBB10CH120D demand careful assessment of replacement module pin assignments, creepage distances, and soldering profiles. It is routine to anticipate minor rework, especially when transitioning to modules with alternate package forms such as SPM27 versus SPM29. The decision matrix must also weigh supply chain resilience; modules with similar rating profiles yet improved availability or extended qualification times can dramatically streamline system lifecycle management.
In fast-paced motor control environments, iterative prototyping has validated that modules sharing core electrical characteristics can exhibit differentiated EMI behavior, start-stop stress tolerances, or require firmware fine-tuning of dead-times and gate resistance values. Close calibration between thermal dissipation mechanisms and environmental operating ranges further underlines the necessity for simulation-driven selection. Unique insights arise when standard application notes are interpreted in light of real-world temperature gradients across busbars and mounting bases, sometimes revealing unexpected bottlenecks in module junction performance under pulse load conditions.
Strategically, choosing a replacement should not solely focus on direct technical parity; broader system-level optimizations frequently emerge when higher-rated modules are leveraged for overload capacity or long-term reliability, even if initial specifications seem marginally misaligned. This nuanced approach encourages continuous cross-validation of module choices against evolving platform requirements, ensuring that integration remains robust and future-proof as system demands expand.
Conclusion
The FSBB10CH120D Motion SPM® 3 Series module exemplifies advanced integration in industrial motor control systems through its optimized configuration of high-voltage, short-circuit-rated IGBTs and intelligent gate drive circuitry. At the device level, the IGBTs are engineered to deliver superior switching efficiency while sustaining robust protection against fault conditions, notably short circuits and over-current events. The gate drive architecture incorporates comprehensive protection algorithms and desaturation detection, substantially mitigating device stress during transient states often encountered in high-speed or cyclic heavy-load operations.
Thermal management is achieved via a carefully selected internal substrate and optimized layout that facilitate effective heat dissipation, reducing junction temperature rise during extended operation at rated load. Enhanced mechanical features, including vibration-resistant housing and standardized mounting interfaces, streamline installation into diverse chassis formats while maintaining signal integrity and secure power connections. Such hardware sophistication ensures minimal component derating over time, supporting stable operation under variable environmental stresses.
On the architectural level, integration of protection functions—such as under-voltage lockout, soft shutdown, and fault reporting—enables deterministic control and rapid fault isolation. This supports closed-loop system designs where predictive maintenance and continuous monitoring are prerequisites for optimizing uptime and extending motor lifespan. The module’s standardized packaging simplifies supply chain logistics and accelerates prototype-to-deployment cycles, affording procurement and assembly teams tangible reductions in lead times and qualification effort.
Experience reveals that precise parameter matching between the SPM module and the target motor, combined with adherence to application-specific guidelines regarding heatsink selection and PCB layout, is pivotal. Oversights—like insufficient thermal margin or lack of attention to ground referencing of the driver stage—can compromise noise immunity and induce early system failures. Conversely, leveraging the SPM’s exhaustive electrical specifications allows for streamlined scaling across power classes and load profiles, markedly improving system consistency and reliability.
FSBB10CH120D stands out by balancing electrical robustness with programmable flexibility, accommodating advanced control algorithms such as vector control or sensorless feedback in a compact form factor. Its engineering philosophy centers on minimizing design complexity while yielding significant reductions in system cost and footprint. Notably, adaptation to custom protection levels and thermal overload setpoints yields tailored solutions for critical applications, including conveyors, machine tools, and precision pumps—where fault tolerance and continuous duty cycles are non-negotiable. This convergence of features positions the Motion SPM® 3 Series as a preferred platform for meeting the escalating demands in industrial automation and smart manufacturing ecosystems.
