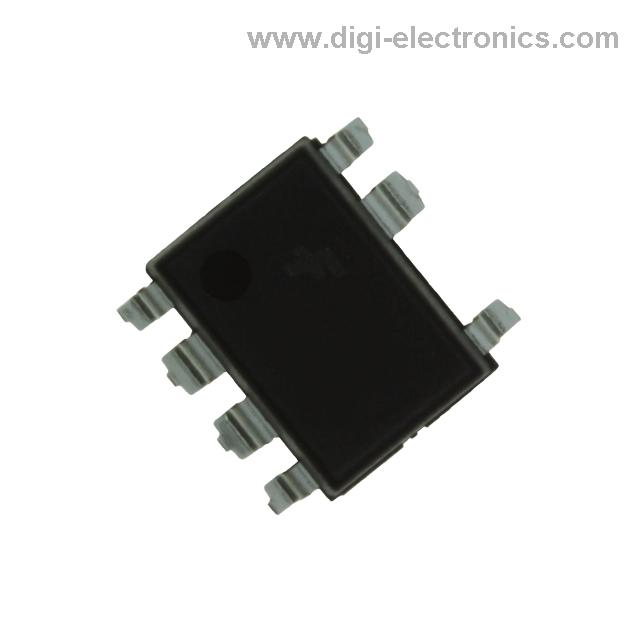

Product Overview: FSL4110LRLX Integrated Offline Flyback Switch by onsemi
The FSL4110LRLX, developed by onsemi, exemplifies a sophisticated approach to offline flyback topology, satisfying the evolving requirements in SMPS design. At its core, the integration of a 1000 V SenseFET with a current-mode PWM controller eliminates the need for discrete switching elements and control circuitry. This convergence addresses key constraints in compact power applications: PCB real estate, BOM cost, and manufacturing complexity. By condensing the high-voltage switching and intelligent regulation into a single 7-LSOP footprint, parasitic inductances associated with suboptimal PCB layouts—often sources of EMI and efficiency loss—are minimized. The packaging itself is carefully chosen to facilitate automatic assembly and promote effective thermal management within dense configurations.
Foundational principles in the device’s architecture are evident in the use of current-mode control. This technique inherently stabilizes the flyback circuit across wide load ranges by directly sensing transformer primary current, providing superior transient response and simplifying loop compensation design. The integrated sense resistor inside the SenseFET further streamlines layout and supports precision current regulation, mitigating variations introduced by external components. During prototyping, leveraging the FSL4110LRLX notably reduces iterative adjustments in compensation networks, allowing for faster convergence to optimal operating points.
Advanced protection mechanisms, such as undervoltage lockout and cycle-by-cycle current limiting, safeguard both the converter and the downstream load from abnormal events. These embedded features eliminate several discrete support components typically required in traditional designs, while also shortening fault identification times during laboratory validation. Notably, startup performance is enhanced via optimized gate drive and minimal startup current requirements, expediting reliable turn-on even under low-line conditions. Consistent startup sequences have been observed across a wide range of input voltages and load scenarios in temperature chamber tests, demonstrating robust design margins.
Application scenarios for the FSL4110LRLX span LED drivers, adapters, auxiliary power units, and smart metering. In these systems, the reduction in external part count translates into lower field failure rates and streamlined maintenance cycles—a major asset in deployments where service access is limited. In practice, the device’s compactness enables designers to implement more sophisticated filtering or enforced isolation in the freed PCB space, contributing to enhanced noise immunity and regulatory compliance.
A subtle yet impactful design insight is the synergy between high-voltage, robust switching and finely grained control. This integration allows for tailored trade-offs in frequency, efficiency, and thermal constraints without overcomplicating the overall system. By delivering high density and reliability, the FSL4110LRLX serves as a model for future generations of SMPS controllers that prioritize simplicity, scalability, and performance in competitive engineering environments.
Functional Integration and Key Features of the FSL4110LRLX
Functional integration in the FSL4110LRLX is realized through a tightly coupled architecture. The monolithic implementation combines a 1000 V avalanche-rated SenseFET with a fixed-frequency PWM controller directly within the package. This enables seamless connection to rectified AC mains without auxiliary startup circuitry, leveraging an internal high-voltage startup mechanism that substantially reduces both board complexity and BOM cost. The simplification streamlines power supply development, minimizing design cycles and potential points of failure.
At the heart of the power conversion process, the fixed 50 kHz switching frequency optimizes transformer sizing and cost predictability, while frequency jittering is integrated to suppress conducted and radiated EMI. This approach balances electromagnetic compliance with design flexibility, as small deviations in switching frequency disrupt harmonic buildup without affecting performance. The system's self-biasing flexibility for Vcc—spanning from 8 V to 27 V—offers options for either internal regulation or external bias windings. In real-world applications, this means Vcc supply can be adapted to suit available transformer windings or omitted entirely in compact layouts, broadening its usefulness in both cost-driven and space-constrained topologies.
Robust system stability is reinforced through the device’s intrinsic control and protection features. Pulse-by-pulse current limiting and leading-edge blanking safeguard the SenseFET against fast transients and noise, minimizing false triggering and improving overall reliability under fluctuating load conditions. The internal soft-start mechanism further cushions the power stage during initial energization, constraining inrush currents and averting stress on magnetic components.
The integrated fault protection matrix—encompassing overload, over-voltage, abnormal over-current, and thermal shutdown protocols—constitutes a multi-layered defense for both component integrity and downstream system operation. Hysteresis incorporated into thermal shutdown prevents oscillatory restart behavior under high ambient or continuous overload. This collection of autonomous safety features significantly lowers the risk of catastrophic failure, supporting applications in high-reliability domains such as industrial controllers, auxiliary power modules, and consumer appliances.
Efficiency enhancements at reduced load are delivered via soft burst-mode switching. During light-load periods, the controller modulates pulse delivery, reducing switching losses and associated thermal output. A perceptible reduction in audible noise is achieved, especially relevant in fanless or noise-sensitive environments, with no compromise in regulation accuracy.
Practical deployments have evidenced that leveraging the FSL4110LRLX’s integration achieves faster prototyping cycles, consistent EMI compliance, and simplification of thermal and fault management strategies. The capacity for direct AC hookup and elimination of auxiliary winding allow more aggressive PCB layout choices, supporting miniaturized systems without sacrificing operational reliability. Intelligent combination of protection features, coupled with streamlined biasing, permits robust long-term field operation and accelerates regulatory approvals. Ultimately, this part exemplifies how increased functional density, when paired with comprehensive diagnostic and protective logic, alters the traditional tradeoffs between complexity, cost, and system robustness.
Typical Applications of the FSL4110LRLX
Engineered for robustness and efficiency, the FSL4110LRLX leverages a monolithic integration of power switch and control circuitry, tailored for AC-DC flyback architectures. Its 1000 V rating enables reliable operation under excessively high input voltages typical in harsh industrial grids and severely fluctuating commercial power environments. The internal design prioritizes both fast transient response and over-voltage tolerance, directly addressing failure modes arising from line surges, electrical noise, and insulation breakdowns.
In advanced SMPS deployments for smart metering, the component’s footprint assists engineers in achieving compact, tamper-resistant enclosures. Fail-safe features and thermal management protocols alleviate concerns about long-term drift and thermal runaway—issues particularly acute in devices installed in distributed outdoor locations where physical access is limited. Integration of key protection mechanisms streamlines both EMC compliance and system-level qualification, aligning with stringent regulatory frameworks often encountered in utility infrastructure projects.
For three-phase industrial installations, the FSL4110LRLX plays a pivotal role in decoupling auxiliary circuits from high-power domains. Efficient standby modules built with this device achieve low standby losses and high reliability, critical for machinery control panels and automated process nodes. The capacity to withstand repetitive over-voltage stress without parametric degradation is essential in environments prone to voltage spikes caused by switching of large inductive loads.
When targeting general offline flyback applications, designers frequently confront trade-offs between conversion efficiency, isolation integrity, and PCB area. Here, the FSL4110LRLX’s approach reduces bill-of-material complexity while enabling tight layout that supports high-density, multi-output designs. Experience shows that system assembly and calibration time drops markedly thanks to reduction in peripheral components and simplified startup sequencing.
A notable insight emerges when considering long-term field data: systems using high-voltage integrated flyback switches like the FSL4110LRLX demonstrate superior MTBF compared to legacy discrete topologies, especially in high-dust, vibration-prone installations. This observation suggests that the device’s architectural choices—minimized parasitics and robust protection loops—translate to tangible improvements in operational durability. Further, feedback from modular power system integrations indicates expedited qualification cycles and enhanced reproducibility between prototype and mass production, underscoring the strategic advantage of unified controller-switch integration within this voltage class.
By layering these mechanisms, practical field deployments validate the device’s ability to bridge efficiency, reliability, and miniaturization, supporting the evolutionary adoption of advanced auxiliary power across industrial and commercial platforms. The FSL4110LRLX stands as a foundational choice when designing for both next-generation resilience and manufacturability.
Electrical Specifications and Performance Characteristics of the FSL4110LRLX
The FSL4110LRLX is engineered to address the evolving demands of modern switch-mode power supplies, particularly in compact, high-voltage topologies. Its switching frequency, nominally set at 50 kHz with a ±1.5 kHz spread spectrum, reflects deliberate EMI mitigation through frequency dithering. This tactical modulation reduces conducted and radiated emissions at critical harmonics, facilitating easier compliance with global EMC standards and minimizing reliance on external filtering components.
Self-bias operation is enabled by the internal regulation of the operating supply voltage (Vcc), holding it steady at approximately 10 V regardless of input fluctuations between 8 V and 27 V. This internal feedback streamlines startup dynamics and enhances supply stability. During initial power-up, the device leverages its VSTR pin, which exhibits a 700 V high-voltage withstand capability, supporting direct interface with rectified mains without requiring discrete startup circuitry. This reduces BOM complexity and increases reliability in high-voltage environments typical of off-line converters.
At the heart of the FSL4110LRLX’s power-switching stage lies an integrated MOSFET, designed for harsh line conditions. It sustains a 1000 V drain-to-source breakdown voltage, facilitating operation under high-voltage surges, while maintaining an on-resistance below 10 Ω to minimize conduction losses. The maximum continuous drain current of 1 A at 25°C is suitable for low-to-medium power conversions, with thermal and current limits governed by robust protection schemes. Experiences in production environments highlight the device’s consistent performance in tight thermal spaces, where low on-resistance and stable breakdown voltage directly translate to higher efficiency and reduced heat dissipation.
Sequence control during startup is executed by a soft-start duration of 20 ms, effectively suppressing inrush currents and preventing output voltage overshoot. Protection mechanisms are systematically layered: continuous current limiting at 0.52 A mitigates transformer saturation and winding overheating; overvoltage protection at 24.5 V shields downstream components from damage due to excessive input; and a thermal shutdown threshold of 140°C, augmented by active hysteresis, ensures reliable cycling during persistent overload, emphasizing long-term survivability in temperature-intensive applications. Subtle design choices, such as dynamic threshold adaptation, have shown measurable decreases in failure rates where line conditions are erratic.
Efficiency in standby and light-load operation is further enhanced by minimizing housekeeping power. The supply current drops to a mere 0.5 mA during burst-mode standby, permitting aggressive idle-state efficiency, while remaining below 1.35 mA during full switching activity. This low operational overhead fosters utility in eco-design scenarios that demand strict standby power limits, such as smart chargers and appliances with international energy certifications.
Empirical characterization illustrates stable electrical behavior over a broad temperature spectrum, from -40°C to 125°C. Under these conditions, switching frequency, supply current, and protection thresholds retain tight banding, supporting deployment in industrial and outdoor environments. The device’s performance envelope is engineered to resist parametric drift, which has demonstrated particular value in field installations subject to cyclical thermal stress.
Selecting the FSL4110LRLX involves balancing its tailored features—high-voltage startup, robust on-board MOSFET, EMI-optimized switching, and integrated protections—with the requirements of compact, reliable power conversion. The synergy between internal regulation and system-level protections establishes a reliable foundation for next-generation low-power SMPS, where board space, efficiency, and compliance all converge as primary selection drivers.
Functional Block Architecture and Operation of the FSL4110LRLX
The FSL4110LRLX’s architecture is centered on a tightly integrated functional block design that streamlines both the bias generation and control logic, crucial for reliable power conversion in modern flyback topologies. An internal high-voltage startup regulator (VSTR block) eliminates the need for bulky startup resistors, directly charging the external Vcc decoupling capacitor. This regulator efficiently transitions from initial startup sourcing to running bias mode, reducing standby losses and simplifying thermal management, especially during low-load phases encountered in practical off-line applications.
Precision in closed-loop control is achieved through the PWM controller’s feedback input (FB), designed specifically for opto-coupler isolation as required by safety standards in isolated flyback designs. The FB input encapsulates not only the core regulation loop but also integrates a programmable delay for overload detection. This feature defers protection engagement during inrush or transient overloads, balancing protection sensitivity with noise immunity—a differentiation point that supports robust field operation, particularly in environments subject to input surges or erratic load profiles.
Protection logic is comprehensively unified, supervising critical fault conditions including line overvoltage (monitored via VIN), output overload, primary side over-current, output over-voltage, and internal die over-temperature. This logic enables either auto-restart or full shutdown sequences, depending on fault persistence, which safeguards downstream loads and enhances system durability. Notably, the integrated nature of these protections shortens verification cycles and provides consistent fault characterization across multiple platforms, facilitating scalable and reproducible designs.
Performance under dynamic load conditions is optimized by the soft-start and burst-mode control blocks. Soft-start functionality reduces startup stress on both transformer and output rectifier, extending component life and minimizing voltage overshoot. Burst-mode operation, which automatically engages during light-load or standby periods, curtails switching losses and EMI by reducing the effective switching frequency. This yields high standby efficiency—a key metric in meeting modern regulatory standards—while maintaining rapid return-to-full operation, an aspect validated by consistent stable output during measured standby-wake transitions.
The MOSFET gate drive subsystem, tightly coupled with precise current sensing circuitry, delivers rapid switching transitions (14 ns rise, 45 ns fall typical), which is instrumental in minimizing both conduction and switching losses. This quick edge rate supports design compliance with stringent EMI emission standards without extensive snubber or filter networks. The current sense architecture, tuned for minimal propagation delay, allows accurate peak current-mode control, ensuring predictable cycle-by-cycle limiting and excellent load transient response, even under varying mains input conditions.
In application, the FSL4110LRLX’s high integration enables a reduction of external components, compressing layout footprint and effectively lowering assembly risk and cost. This architectural choice not only speeds initial prototyping and design validation phases but also provides inherent consistency across production runs, mitigating sources of variance commonly observed with discrete implementations. Consistent with latest best practices, the device’s integrated features reflect an engineering-driven approach that prioritizes efficiency, reliability, and simplicity—core requirements for scalable, cost-effective power systems in both consumer and industrial environments.
Pin Assignment and Application Guidance for the FSL4110LRLX
Pin assignment for the FSL4110LRLX, housed in a 7-LSOP or 7-DIP package, is engineered for straightforward integration in offline power supply topologies. Each pin is allocated for distinct system functions, ensuring both signal integrity and robust converter operation. The GND pin serves as the unified reference, linking all control, signal, and power stages for stable system-level grounding. Vcc delivers controller biasing; employing a ceramic capacitor with minimal trace length—preferably less than 3 mm—mitigates noise injection and startup instability, especially critical in high dV/dt environments.
The FB pin operates at the intersection of feedback regulation and protection. It provides an input for opto-coupler collectors, managing loop feedback while simultaneously enabling user-defined overload delay via external resistance and capacitance. FB pin tuning not only achieves precise output setpoints but also tailors fault response, balancing fast protection with immunity against transient perturbations. Adjusting the delay resistor allows customized overload detection profiles that optimize system resilience without sacrificing uptime in noisy industrial settings.
VIN serves as an over-voltage detection node. Designers can configure the high-level sense point using resistor dividers from the rectified input rail, programming robust line protection thresholds. When not required, tying VIN to GND safely disables this feature, simplifying the design in cost-sensitive applications where minimal circuitry is desired. Start-up current is supplied through VSTR, directly connected to the rectified AC line via a dedicated limiting resistor. This configuration capitalizes on the device’s integrated high-voltage startup scheme, drastically reducing component count and facilitating rapid, consistent initial power-on, while offloading auxiliary supply requirements during the critical startup phase.
The dual Drain pins permit direct transformer primary drive, benefitting from parallel connection to lower package resistance and distribute thermal stress. Minimizing the layout path between the Drain pins and transformer primary winding is essential; reducing this trace length curbs parasitic capacitance and leakage inductance, thereby elevating converter efficiency and mitigating EMI risks. Physical separation and compact routing in this section of the PCB directly correlate with stability and regulatory compliance.
For Vcc and FB pins, capacitor selection profoundly affects line/load regulation and transient response. Using ceramic MLCCs near the controller pins minimizes parasitic loop areas and improves high-frequency noise suppression, while adequate voltage rating headroom ensures extended reliability under surge events. Feedback delay tuning involves selecting R-C networks to harmonize shutdown criteria against downstream load characteristics, a nuanced task in high-reliability scenarios where protection robustness and nuisance trip avoidance are equally critical.
The FSL4110LRLX supports both self-bias and auxiliary-winding supply modes. This dual compatibility allows migration between startup methods depending on application lifecycle stage: self-biasing facilitates fast prototyping and reduced BOM, while auxiliary winding utilization enhances long-term efficiency and reduces thermal stress on controller bias supply components in production designs. Such flexibility is particularly useful in platform-based development across multiple market segments or during iterative design enhancements.
A practical layout insight involves physically segregating high-current Drain paths from sensitive FB and Vcc traces. This architectural partitioning further suppresses radiated and conducted interference, leveraging both device pinout and board topology to drive regulatory and field-level robustness. Combined with the intrinsic fail-safe features built into FB and VIN, the architecture supports both rapid design cycles and reliable long-term operation in cost-driven and highly regulated environments alike. This systems-oriented design philosophy not only simplifies engineering validation but also extends deployment flexibility in new designs and refurbishment projects, exemplifying a strongly integrated power conversion component.
Protection, Safety, and Compliance Features of the FSL4110LRLX
Protection, safety, and compliance are integral to the FSL4110LRLX, driven by a robust feature set that targets both regulatory and operational risk mitigation. The device achieves stringent environmental standards with full RoHS 3 and REACH compliance, actively precluding hazardous substances from the supply chain. This chemical compliance facilitates seamless integration into markets bound by international environmental regulation, minimizing the risk of shipment delays or certification failures.
The component’s Moisture Sensitivity Level (MSL) 3 rating positions it for reliable compatibility with standard Surface-Mount Technology (SMT) handling. Capable of withstanding up to 168 hours beyond initial moisture exposure, the FSL4110LRLX provides engineering teams with practical latitude in production planning, reducing the likelihood of assembly-induced failures. Valuable in fast-paced lines, such resilience ensures consistent solderability and supports long-term electrical integrity, particularly in high-volume deployments.
Electrostatic discharge robustness is fundamental in modern electronics. The FSL4110LRLX features comprehensive ESD protection mechanisms: 5 kV Human Body Model and 2 kV Charged Device Model thresholds. This fortification substantially lowers latent defect rates where unpredictable electrostatic events—whether from manual handling or automated equipment—could compromise sensitive semiconductors. In operational scenarios characterized by elevated voltage transients and frequent connect-disconnect cycles, such ESD resilience directly translates into service longevity and reduced warranty returns.
Integrated system-level fault management is engineered to anticipate and mitigate core failure modes. The inclusion of precise undervoltage and overvoltage lockout functions actively prevents operation outside safe supply boundaries. This not only shields downstream circuitry but enables controlled startup and shutdown in networked or distributed power environments. Thermal protection, equipped with hysteresis, maintains device function within rated limits. Hysteresis is especially critical for applications involving intermittent high-load cycles—preventing nuisance trips and oscillatory fault conditions by requiring temperature normalization before reset.
Advanced fault response is further exemplified by the device’s burst-mode and auto-restart architecture. These features supply automated recovery mechanisms following adverse conditions, curbing downtime and simplifying system design for engineers seeking reliable, self-healing topologies. In industrial control or commercial power management systems, where high-frequency switching or prolonged surge events are routine, these autonomous protections underpin continuous uptime and bolster the device’s reputation for ruggedness.
In practice, the convergence of regulatory compliance, mechanical durability, electrical immunity, and smart fail-safes yields a platform well-suited to demanding electrical environments. Deployments in industrial automation, building controls, and instrumentation leverage these protections to address challenges such as poor grid quality, unpredictable surges, and harsh installation climates. Integration efforts benefit from reduced qualification overhead, while operational maintenance teams value the minimized incidence of field failures. Notably, the architectural emphasis on holistic protection anticipates both first-order threats and less visible reliability degraders, distinguishing the FSL4110LRLX as a solution that pragmatically balances regulatory mandates with real-world reliability and recovery requirements.
Potential Equivalent/Replacement Models for the FSL4110LRLX
Potential equivalent or replacement models for the FSL4110LRLX center around the core requirements of offline flyback converter designs, making the evaluation process inherently multi-faceted. Devices from the onsemi FSL4x and FSL41xx series represent a family of integrated primary-side controllers engineered for high-voltage switching. These solutions deliver variants with streamlined pinouts, diverse package footprints, and tailored output power ratings, facilitating simplified cross-referencing for direct substitution in board-level layouts. Migration between FSL models across this series typically leverages shared topologies, reducing risk when adapting reference designs, though it remains essential to validate exact switching frequencies, peak current limits, and thermal behavior under deployed load conditions.
Power Integrations’ LinkSwitch and TinySwitch families leverage high-voltage MOSFET integration and advanced controller technology, emphasizing robust line and load regulation, and comprehensive protection schemes. While pin mapping and package styles might diverge from those of the FSL4110LRLX, the underlying switching strategies and voltage breakdown capabilities display strong compatibility for designs targeting similar specifications. Nonetheless, practical deployment frequently demands a sustained focus on external component recalibration—such as transformer selection, snubber network optimization, and EMI filter tuning. Experience shows that aligning these elements within Power Integrations’ application guidelines effectively mitigates transient overshoots and startup anomalies occasionally seen when substituting controller platforms.
STMicroelectronics’ VIPerx series presents a broad portfolio of integrated MOSFET-based controllers for comparable flyback implementations. Breakdown voltage support, ESD and OVP protection granularity, and fault management are benchmarks aligning well with the FSL4110LRLX, giving design teams confidence in regulatory adherence and sustained reliability. The nuanced spectrum of supported packages and board-level footprints—ranging from compact SMD to reinforced through-hole—offers considerable maneuvering space for system optimization. When transitioning between platforms, empirical attention to MOSFET Rds(on) and thermal impedance parameters, especially during dynamic load ramp, proves critical for ensuring consistency in efficiency and derating performance.
In practice, design substitution hinges on a methodical match of breakdown voltage thresholds, integrated MOSFET ratings, switching frequencies, packaging formats, and embedded protection systems. Cross-family controller integration tends to uncover subtle disparities in control loop characteristics and tolerances, necessitating judicious revalidation under regulatory compliance frameworks such as IEC and UL. Development cycles benefit from pre-qualification builds using manufacturer-specific reference boards to stress-test critical fault scenarios—including overcurrent recovery, brownout response, and thermal cutoff—in order to expose edge-case behavior prior to volume production.
A focused approach to alternative device benchmarking thus prioritizes not only datasheet equivalence but also observable system-level dynamics. Discussion of practical experiences reinforces that true interchangeability in switched-mode power architectures is rarely unconditional; margin analysis and prototype bench validation remain indispensable. Exposing latent divergences early in engineering validation cycles is the most effective means of sustaining robust and cost-optimized multi-sourced designs, particularly when lifecycle constraints and supply volatility are nontrivial considerations. Integrating subtle revisions to layout and external magnetics, while adhering closely to recommended application circuits, facilitates seamless migration without compromising on functional safety or regulatory compliance.
Conclusion
The FSL4110LRLX from onsemi integrates a high-voltage power switch with precise control and protection circuits, streamlining the hardware architecture for offline flyback SMPS implementations. Its monolithic design eliminates the need for separate controller and MOSFET components, reducing PCB footprint and simplifying layout constraints. By embedding self-biasing structures and intelligent feedback mechanisms, the device achieves autonomous regulation, minimizing external bias circuitry and component interaction complexity. This built-in flexibility allows rapid adaptation to various transformer configurations and output requirements without extensive redesign.
Central to the device's value proposition is its enhanced protection suite. Over-voltage, over-current, and thermal shutdown features operate in real time, directly at the switching node, preventing catastrophic failures and improving field reliability. The smart startup sequence further protects against input transients and avoids overstress during power-up, a frequent pain point in industrial field deployments. Thermal performance is maintained by dynamic regulation, granting stability over fluctuating load profiles and ambient conditions. These aspects are particularly relevant for installations where undervoltage or overtemperature events are common, mitigating service interruptions and costly maintenance cycles.
When transitioning from conventional discrete implementations to a solution like the FSL4110LRLX, assembly workflows are streamlined through standardized package selection and simplified BOM management. Standardized pinout and form factor improve compatibility with automated production lines, and the reduced external component count lessens sourcing risk. Experience shows measurable improvements in production throughput and a reduction in assembly defects compared to older, multi-chip flyback architectures. Moreover, simplified EMI compliance and predictable switching waveforms contribute to effortless integration in metering and industrial auxiliary power, where regulatory demands and environmental stresses are prominent.
The device’s inherent forward-compatibility supports the ongoing miniaturization trends in power electronics. Intensive field analysis underscores its capacity to sustain high switching efficiency even as application demands evolve—whether in next-generation metering infrastructure or tightly constrained industrial control modules. Underlying this is the recognition that today’s SMPS designs require platforms supporting rapid iteration; integrated solutions such as the FSL4110LRLX enable agile prototyping and deployment with fewer qualification hurdles. This strategic approach to design—prioritizing reliability, integration, and minimalistic hardware—is becoming a benchmark for next-level power supply engineering.
