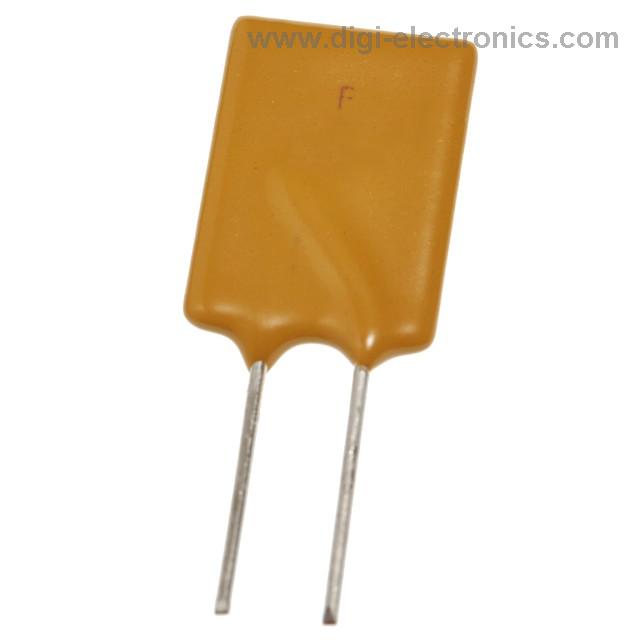

FRX005-60F
RFE/Fuzetec
RESETTABLE FUSE - PPTC RADIAL LE
2240 Pcs New Original In Stock
PTC Resettable Fuse 60V 50 mA Ih Through Hole Radial, Disc
Request Quote
(Ships tomorrow)
*Quantity
Minimum 1
Minimum 1
5.0 / 5.0
- (158 Ratings)
FRX005-60F
Product Overview
9864986
DiGi Electronics Part Number
FRX005-60F-DGManufacturer
RFE/Fuzetec
FRX005-60F
Description
RESETTABLE FUSE - PPTC RADIAL LEInventory
2240 Pcs New Original In Stock
PTC Resettable Fuse 60V 50 mA Ih Through Hole Radial, Disc
Quantity
Minimum 1
Minimum 1
Purchase and inquiry
Warranty & Returns
How to Order
Shipping & Delivery
Quality Assurance
365 - Day Quality Guarantee - Every part fully backed.
90 - Day Refund or Exchange - Defective parts? No hassle.
Limited Stock, Order Now - Get reliable parts without worry.
Global Shipping & Secure Packaging
Worldwide Delivery in 3-5 Business Days
100% ESD Anti-Static Packaging
Real-Time Tracking for Every Order
Secure & Flexible Payment
Credit Card, VISA, MasterCard, PayPal, Western Union, Telegraphic Transfer(T/T) and more
All payments encrypted for security
FRX005-60F Technical Specifications
Category
PTC Resettable Fuses
Packaging
Bulk
Series
FRX60
Product Status
Active
Type
-
Voltage - Max
60V
Current - Hold (Ih) (Max)
50 mA
Current - Trip (It)
100 mA
Current - Max
40 A
Time to Trip
5 s
Resistance - Initial (Ri) (Min)
7.3 Ohms
Resistance - Post Trip (R1) (Max)
20 Ohms
Operating Temperature
-40°C ~ 85°C
Ratings
-
Mounting Type
Through Hole
Package / Case
Radial, Disc
Size / Dimension
0.291" Dia (7.40mm)
Height - Seated (Max)
0.500" (12.70mm)
Thickness (Max)
-
Lead Spacing
0.201" (5.10mm)
Approval Agency
cUL, TUV, UL
Datasheet & Documents
HTML Datasheet
FRX005-60F-DG
Environmental & Export Classification
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8533.40.8070
Additional Information
Other Names
3451-FRX005-60F
Standard Package
1
Reviews
5.0/5.0-(Show up to 5 Ratings)
Dec 02, 2025
가격과 배송에서 모두 최고입니다. 믿고 구입하는 브랜드입니다.
Dec 02, 2025
제품이 기대 이상이에요! 디지털 전자 제품은 DiGi가 제일입니다.
Dec 02, 2025
Their proactive communication during post-purchase service is impressive.
Dec 02, 2025
We appreciate the transparency and reliability of DiGi Electronics.
Publish Evalution
Evalution Message
Please enter your review message.
Please post honest comments and do not post ilegal comments.
Frequently Asked Questions (FAQ)
What is a PTC resettable fuse and how does it work?
A PTC resettable fuse is a protective component that automatically resets itself after tripping due to overcurrent, providing multiple uses. It increases resistance when excessive current flows, protecting circuits from damage.
Is this radial disc PTC fuse compatible with low-voltage electronic devices?
Yes, this PTC fuse is rated for a maximum voltage of 60V and is suitable for low-voltage electronic applications, offering reliable overcurrent protection.
What are the key features and specifications of the FRX60 series resettable fuse?
The FRX60 series features a maximum voltage of 60V, a hold current of 50mA, and a trip current of 100mA, with a trip time of approximately 5 seconds. It measures 7.40mm in diameter and is suitable for through-hole mounting.
Can this PTC fuse be used in high-temperature environments?
Yes, this fuse operates effectively within a temperature range of -40°C to 85°C, making it suitable for various environments and ensuring reliable circuit protection.
What certifications and compliance standards does this resettable fuse meet?
This fuse is cUL, TUV, and UL approved, and is RoHS3 compliant, ensuring it meets international safety and environmental standards for electronic components.
Quality Assurance (QC)
DiGi ensures the quality and authenticity of every electronic component through professional inspections and batch sampling, guaranteeing reliable sourcing, stable performance, and compliance with technical specifications, helping customers reduce supply chain risks and confidently use components in production.
FRX005-60F CAD Models
RFE/Fuzetec FRX005-60F PCB symbols & footprints
